Scan Tool VAS 5051, Connecting




Vehicle Diagnostic, Testing And Information System VAS 5051, Connecting

Special tools, workshop equipment, testers, measuring instruments and auxiliary items required


Vehicles up to 12.95







- VAS 5051 Vehicle diagnostic, testing and information system
- VAS 5051/1 or VAS 5051/3 diagnostic cable
- VAS 5051/2 diagnostic adapter

- Remove stowage tray in front of relay station.

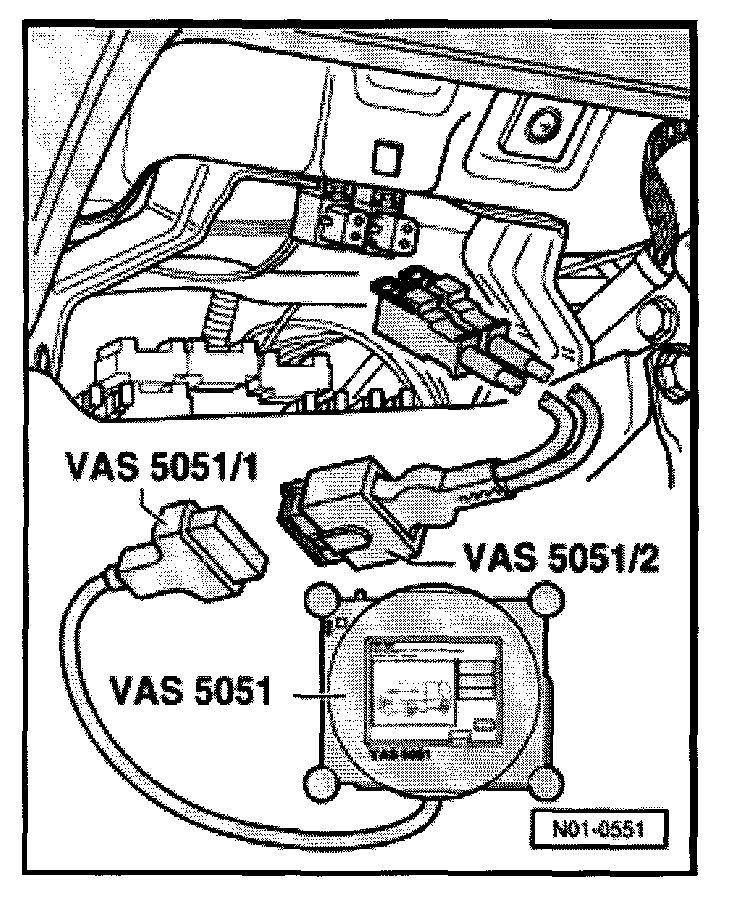

- With ignition switched off, connect tester VAS5051 using diagnostic cable VAS5051/1 or VAS5051/3 and adapter VAS5051/2 by joining flat adapter plug to corresponding socket of the diagnostic connection having the same color.
