M/T - 5th Gear/Synchronizer Changes/Modifications
Group: 34Number: 92-08
Date: December 31, 1992
Subject:
5-speed transmission 02B, changes/modifications
Models:
EuroVan all m.y. (see below for specific transmission build dates)
5th gear synchronizer, changes
Transmissions from 31 10 1
Note

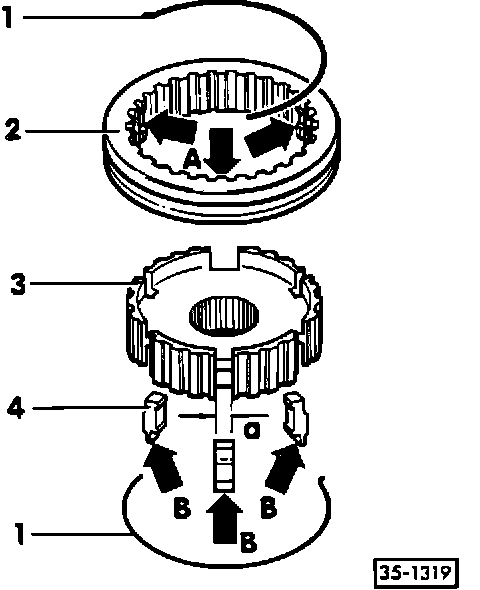

The modified assembly has three new locking keys (item 4) which are additional to the three existing keys cast on the synchronizer ring.
1 - Springs for 5th gear synchronizer ring
^ no longer a single-spring design
^ installed position: one spring at 120~ offset to the other
2 - Synchronizer for 5th gear
^ three cutouts (arrows A) for new locking keys (item 4)
3 - Synchronizer hub for 5th gear
^ three smaller additional cutouts a for new locking keys (item 4)
^ dimension a = 8.2 mm
4 - Locking keys
^ installed position: smaller end (arrows B) toward edge of meshing teeth in synchronizer (item 2)

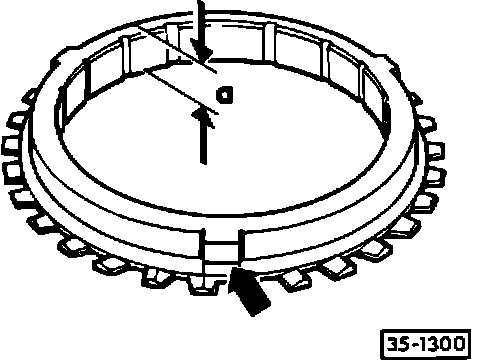

5th gear synchronizer ring, changes previous (transmissions up to 30 10 1)
^ dimension a = 9.0 mm
^ spring recess (lower arrow) is present new (transmissions from 31 10 1)
^ dimension a = 8.6 mm
^ spring recess (lower arrow) has been eliminated
CAUTION
Do not install early version synchronizer rings in later transmissions, nor later version rings in earlier transmissions.

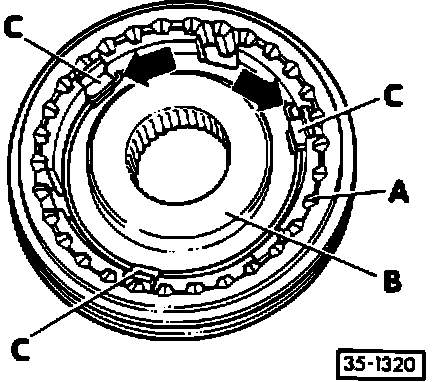

Modified synchronizer ring and 5th gear synchronizer, assembling
Transmissions from 31 10 1
- slide synchronizer over synchronizer hub (see also, illustration 35-1319)
^ edges A of meshing teeth in synchronizer face in same direction as collar B of synchronizer hub
^ cutouts for locking keys in synchronizer and in synchronizer hub must align, one above the other
- insert locking keys, as shown in illustration 35-1319
- insert springs at a 120~ offset, seating each spring under all three lugs C of the locking keys
^ be sure ends of spring (arrows) are positioned at lugs C, as shown

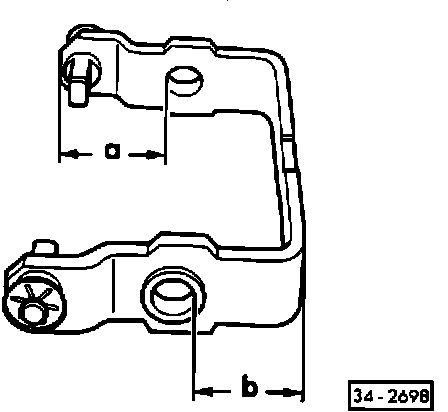

5th gear selector fork, changes
Note
Modifications to the 5th gear selector fork correspond to changes in the 5th gear synchronizer hub.
previous (transmissions up to 30 10 1)
^ dimension a - 35.0 mm
^ dimension b - 23.3 mm
new (transmissions from 31 10 1)
^ dimension a = 33.7 mm
^ dimension b = 24.3 mm
Note
The new selector fork can be installed in earlier transmissions.

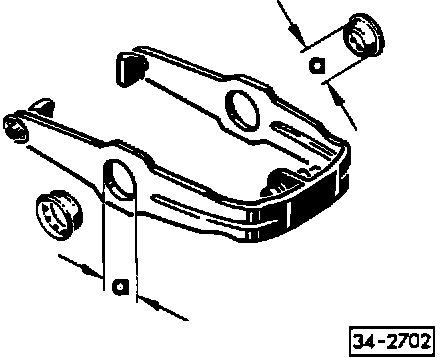

1st/4th gear selector forks/ball bearings, changes
previous (transmissions up to 05 02 2)
^ dimension a = 20.0 mm
new (transmissions from 06 02 2)
^ dimension a = 21.0 mm
Note
The new selector fork with larger ball bearings can also be installed in earlier transmissions.

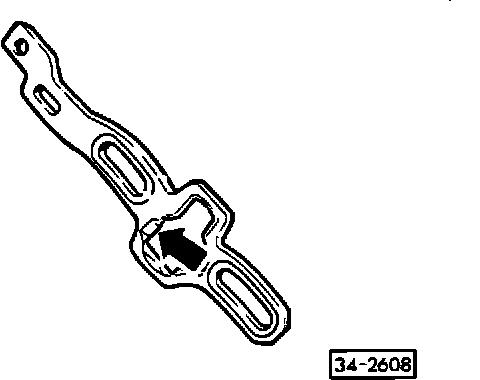

5th gear shift rail, changes
Note
Modifications to the 5th gear shift rail correspond to changes in the selector shaft. These changes now allow for the immediate engaging of reverse gear.
previous (transmissions up to 16 05 1)
^ not chamfered at arrow
new (transmissions from 17 05 1)
^ chamfered at arrow to accommodate spring-loaded ball on modified selector shaft
Note
The modified shift rail is available as a replacement part.
The modified shift rail can also be installed in earlier transmissions.

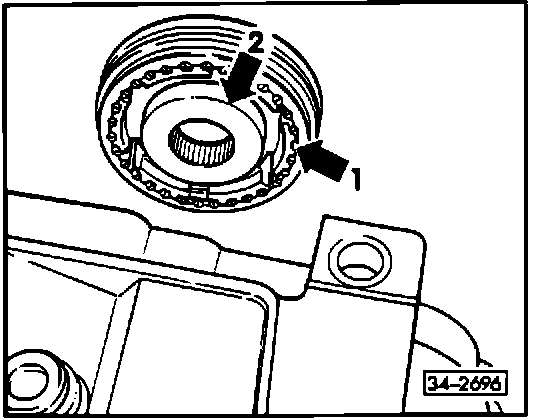

Modified 5th gear synchronizer, installed position
Transmissions from 31 10 1
- assemble hub and synchronizer, as described previously
- install so that teeth (arrow 1) in synchronizer, and high collar of synchronizer hub (arrow 2) face transmission housing

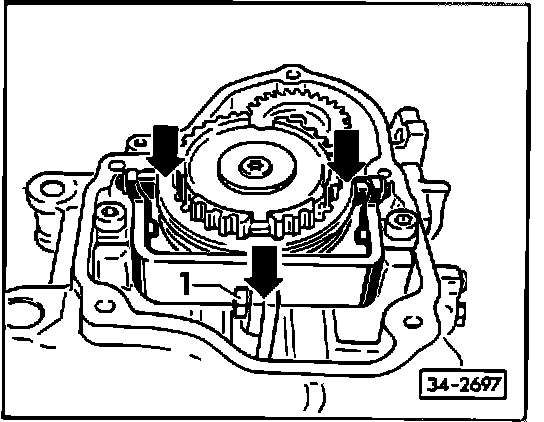

5th gear, adjusting/checking
Transmissions from 31 10 1
Adjusting
- engage 5th gear
- loosen bolt 1
- press synchmnizer and selector arm in direction of arrows
- tighten bolt 1 to 25 N-m (18 ft.lb.)
Checking
- check measurement with feeler gage
^ gap between synchronizer and gear must not exceed 0.2 mm
- repeat adjustment if necessary
- remove 5th gear:
^ synchronizer must now be in neutral position
^ synchronizer ring must have enough clearance to move freely

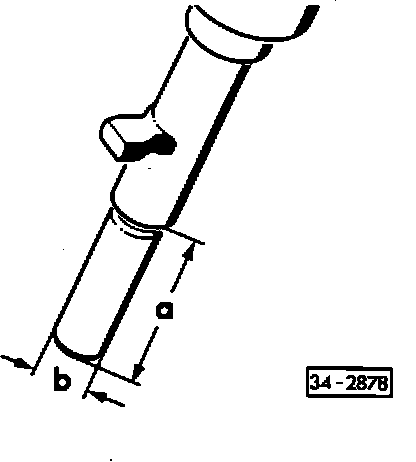

Selector shaft, changes
Modifications to length/diameter
previous (transmissions up to 30 10 1)
^ dimension a = 57.0 mm
^ dimension b = 15.0 mm
new (transmissions from 31 10 1)
^ dimension a = 41.0 mm
^ dimension b = 16.0 mm
Note
The length/diameter modifications to the selector shaft correspond to changes in the end cover (see page 5).

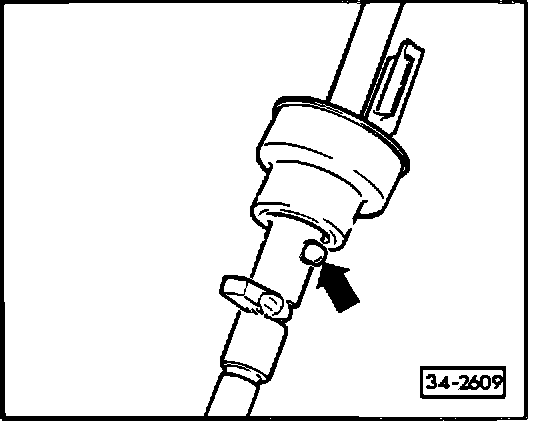

Modifications - spring-loaded ball
previous (transmissions up to 03 12 1)
^ no spring-loaded ball (arrow)
new (transmissions from 04 12 1)
^ presence of spring-loaded ball (arrow)
Note
The 5th gear shift rail is now chamfered to accommodate the new spring-loaded ball on the modffied selector shaft. This design change creates a "brake" mechanism for the input shaft, allowing reverse gear to be engaged without a hesitation.

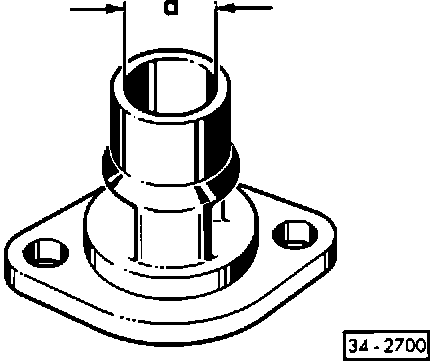

End cover, changes
previous (transmissions up to 30 10 1)
^ dimension a = 21.0 mm
new (transmissions from 31 10 1)
^ dimension a = 16.0 mm
Note
The end cover modifications correspond to changes in the selector shaft (i.e. shaft length and diameter changes).
