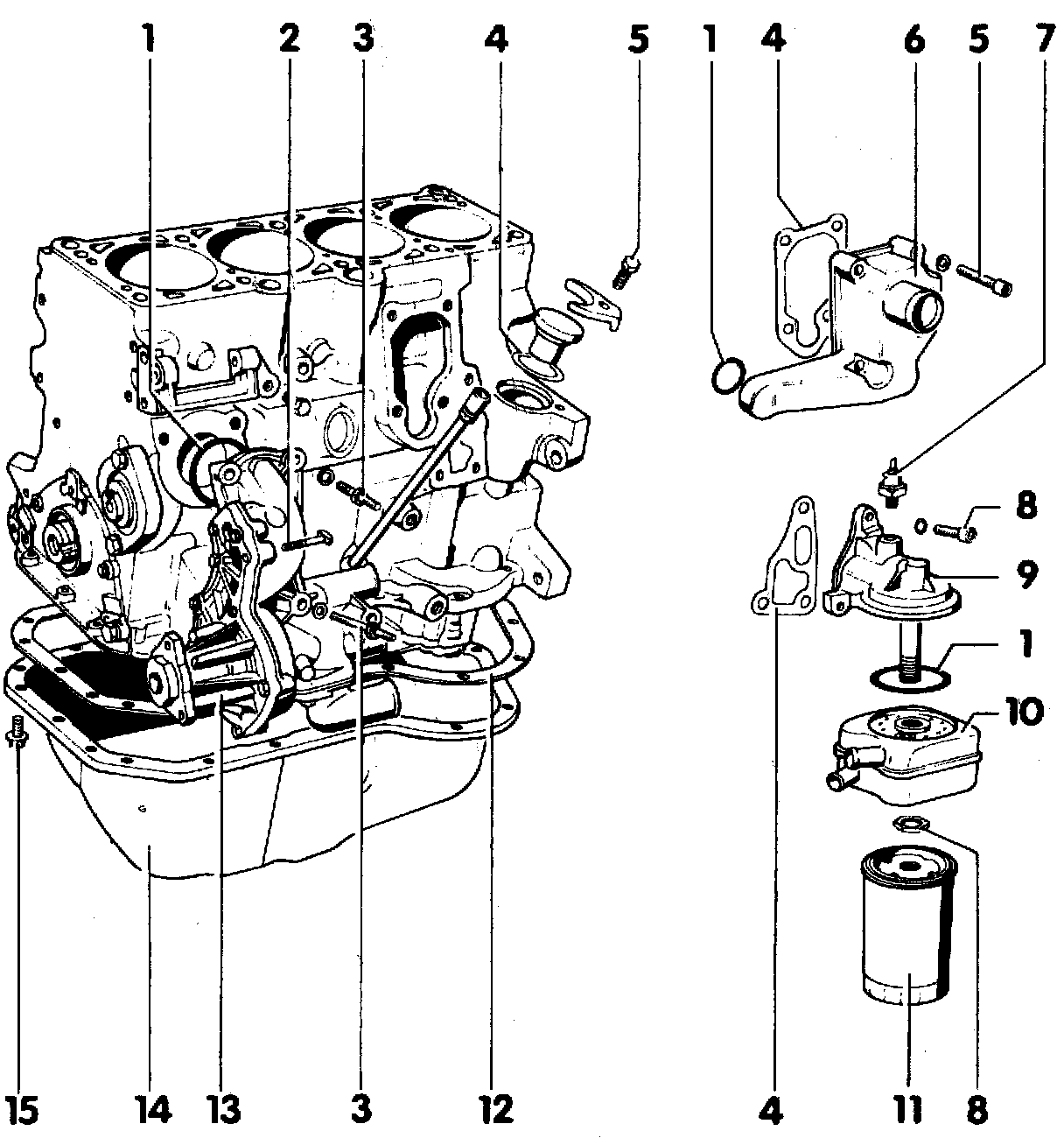

Component Layout

Component Layout





1 - O-ring
- Replace if damaged
2 - T-head bolt
3 - Hex head bolt (support)
- 20 Nm (15 ft lb)
4 - Gasket
- Replace
5 - 20 Nm (15 ft lb)
6 - Crankcase ventilation housing
7 - Oil pressure switch
- 25 Nm (18 ft lb)
8 - 25 Nm (18 ft lb)
9 - Oil filter bracket
10 - Oil cooler
- Coat contacting surfaces (except O-ring) with sealant AMV 188 100 02
- Note clearances to surrounding components
- Also see note about metal in oil refer to "Engine, Disassembling and Assembling". Service and Repair
11 - Oil filter
- Loosen using wrench
- Tighten by hand
- Note installation instructions on oil filter
12 - Oil pan gasket
- Before placing into position, coat the overlapping areas sealing the flange to the cylinder block with D2
13 - Coolant pump
14 - Oil pan
15 - 20 Nm (15 ft lb)
- Loosen and tighten the flywheel side bolts using tool 3185
