Antitheft Alarm System -Troubleshooting

Group: 90
Number: 92-05
Date: December 31, 1992

Subject:
Anti-Theft Alarm System, Troubleshooting

Model(s):
Passat 1993 M.Y.

Anti-theft alarm system, troubleshooting

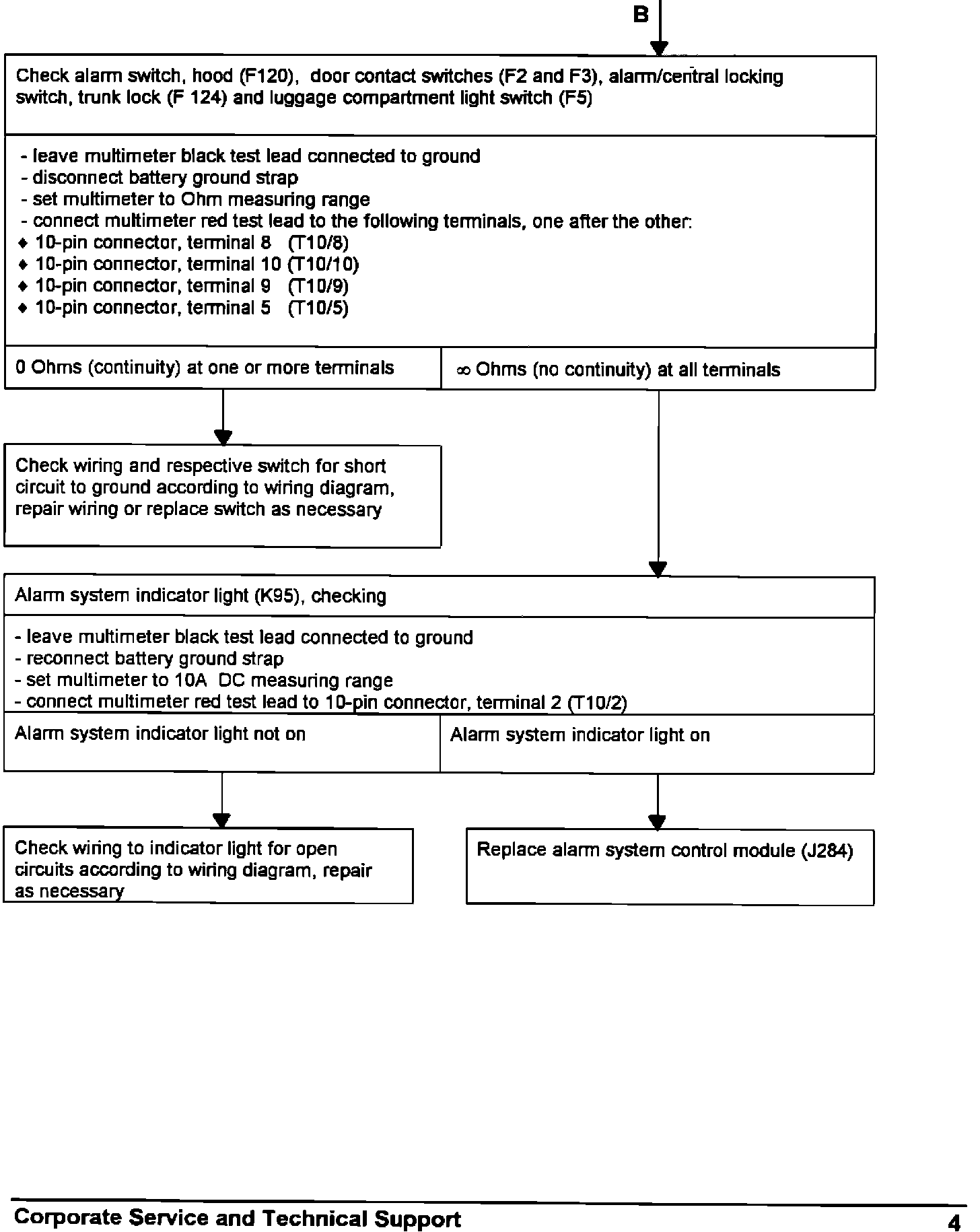

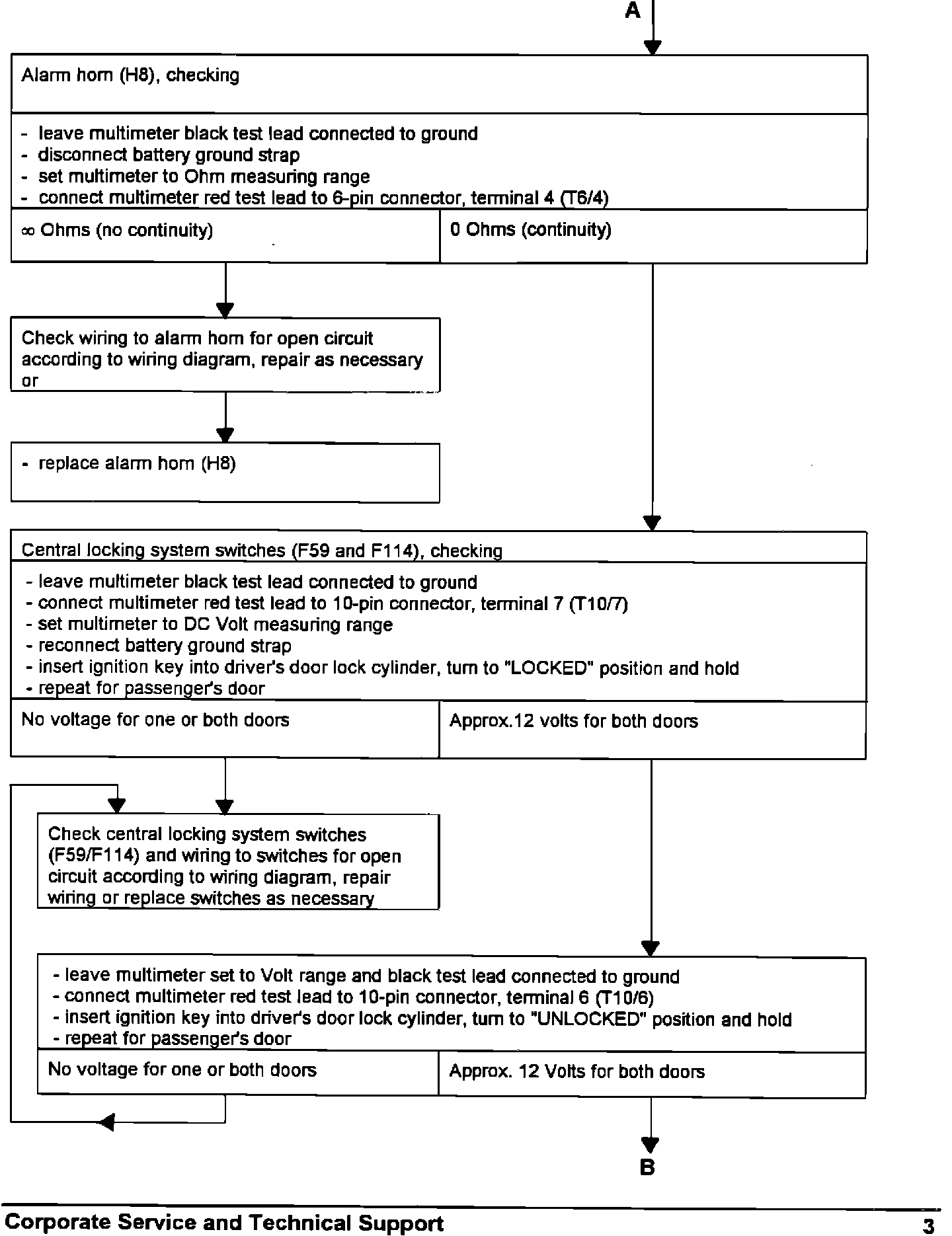

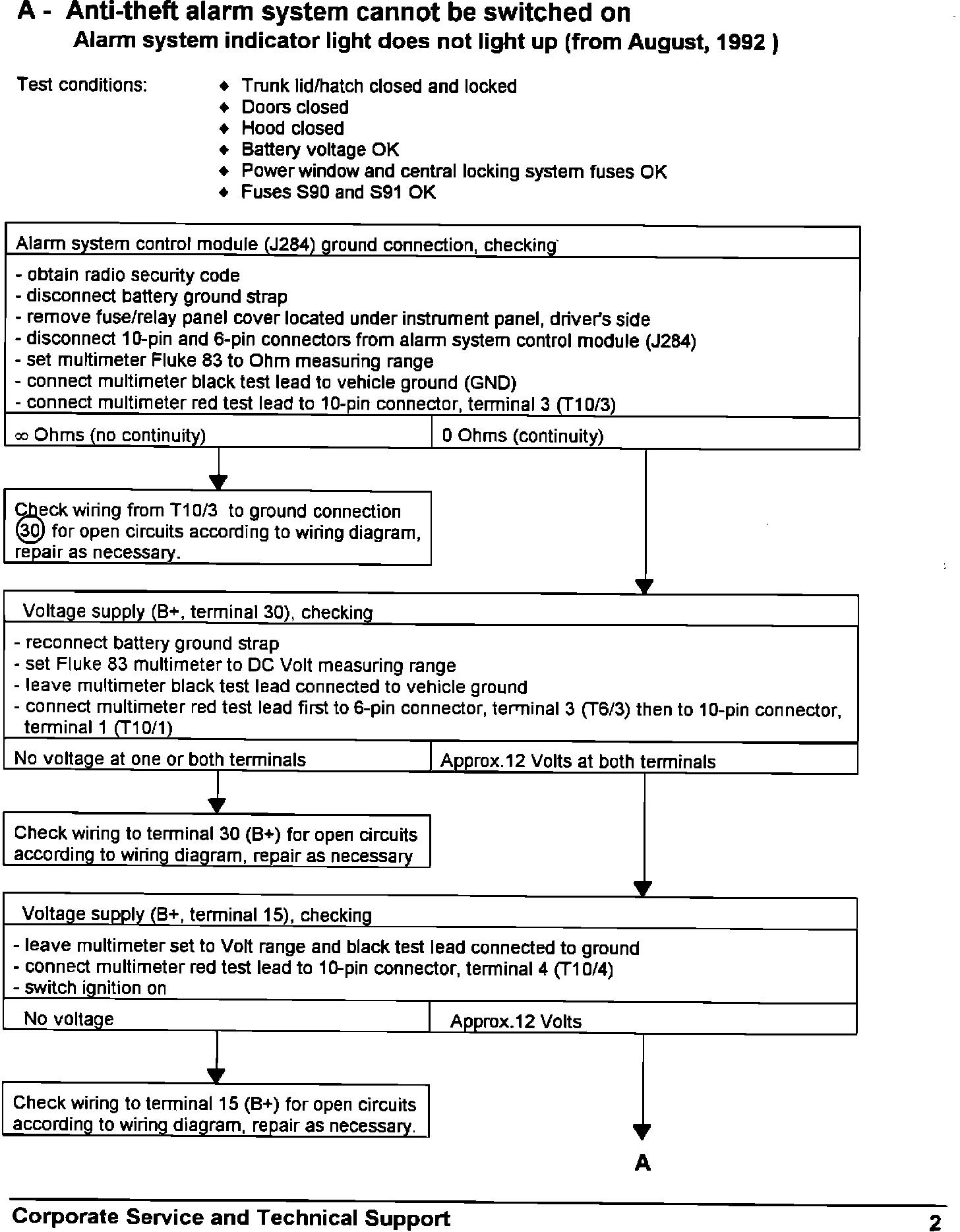

A - Anti-theft alarm system cannot be switched on; Alarm system indicator light does not light up (from August, 1992)

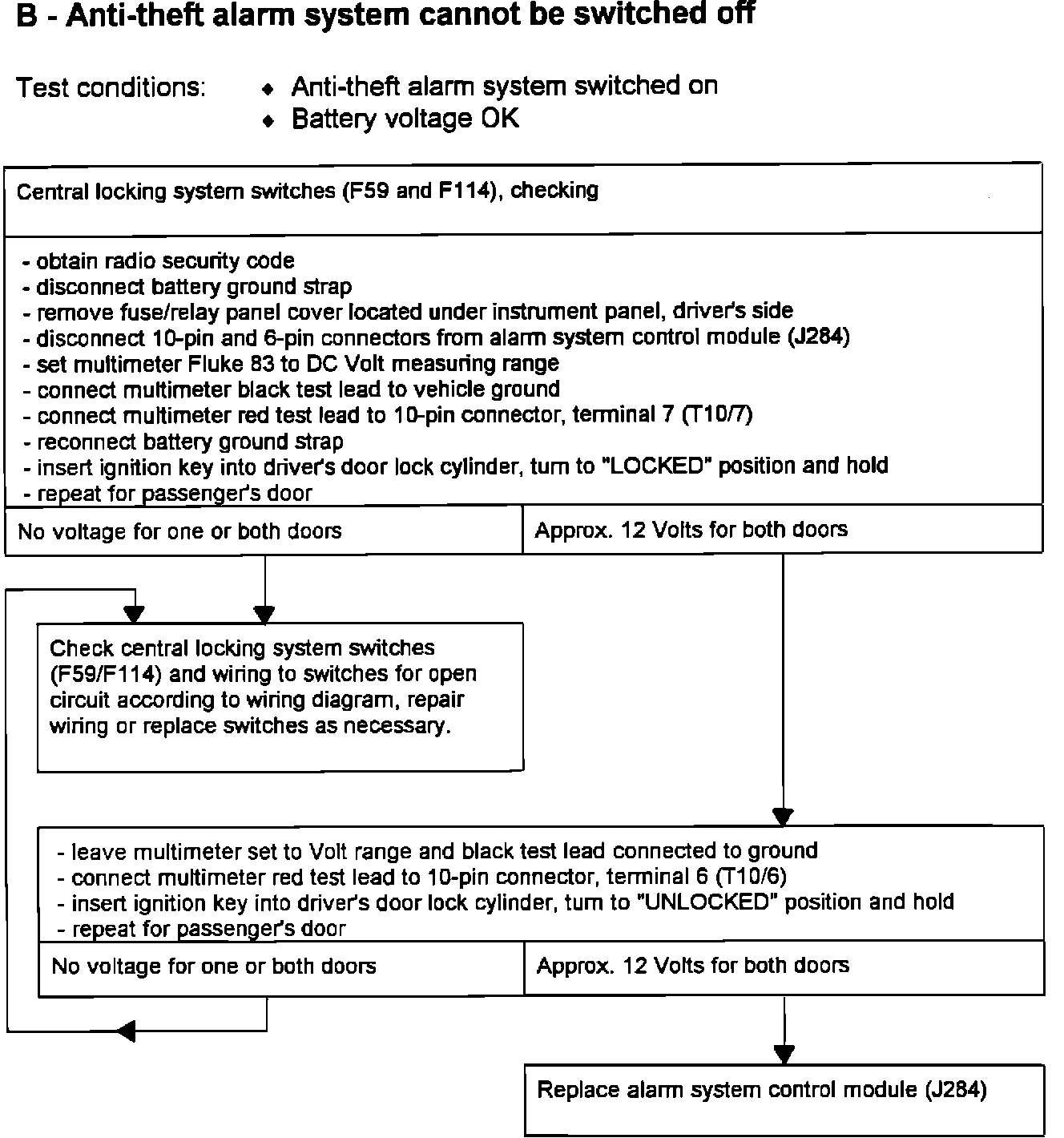

B - Anti-theft alarm system cannot be switched off

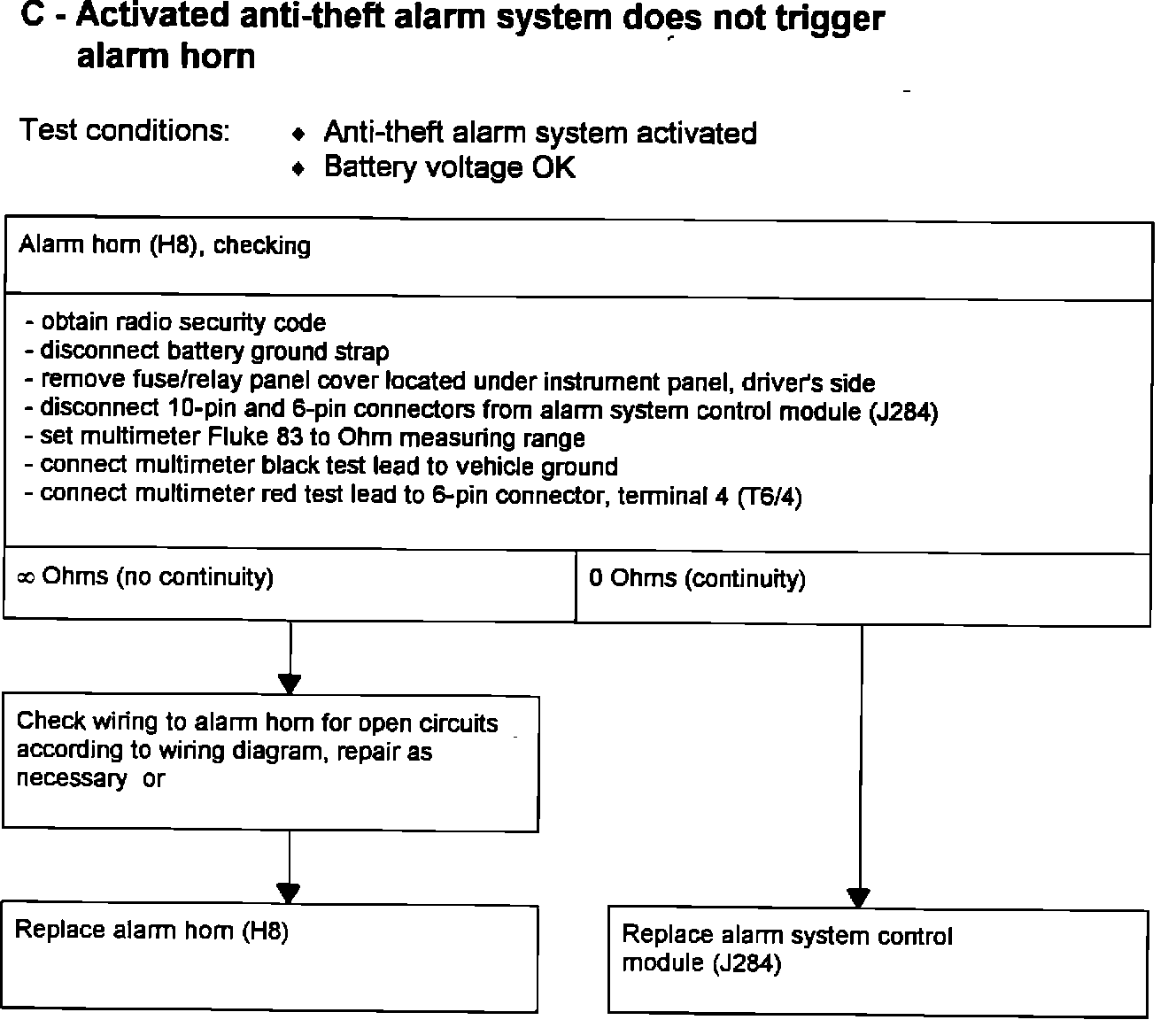

C - Activated anti-theft alarm system does not trigger alarm horn

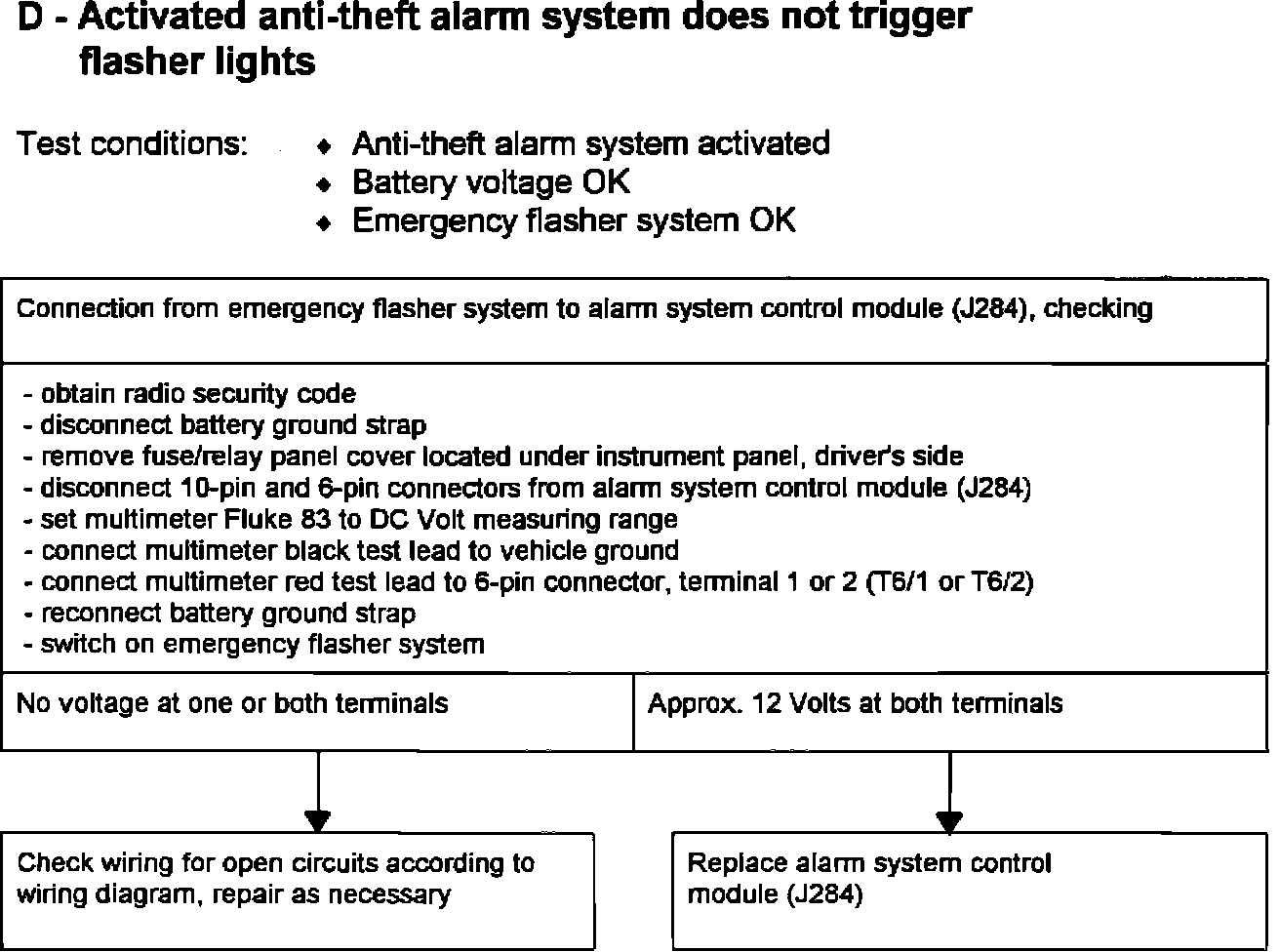

D - Activated anti-theft alarm system does not trigger flasher lights

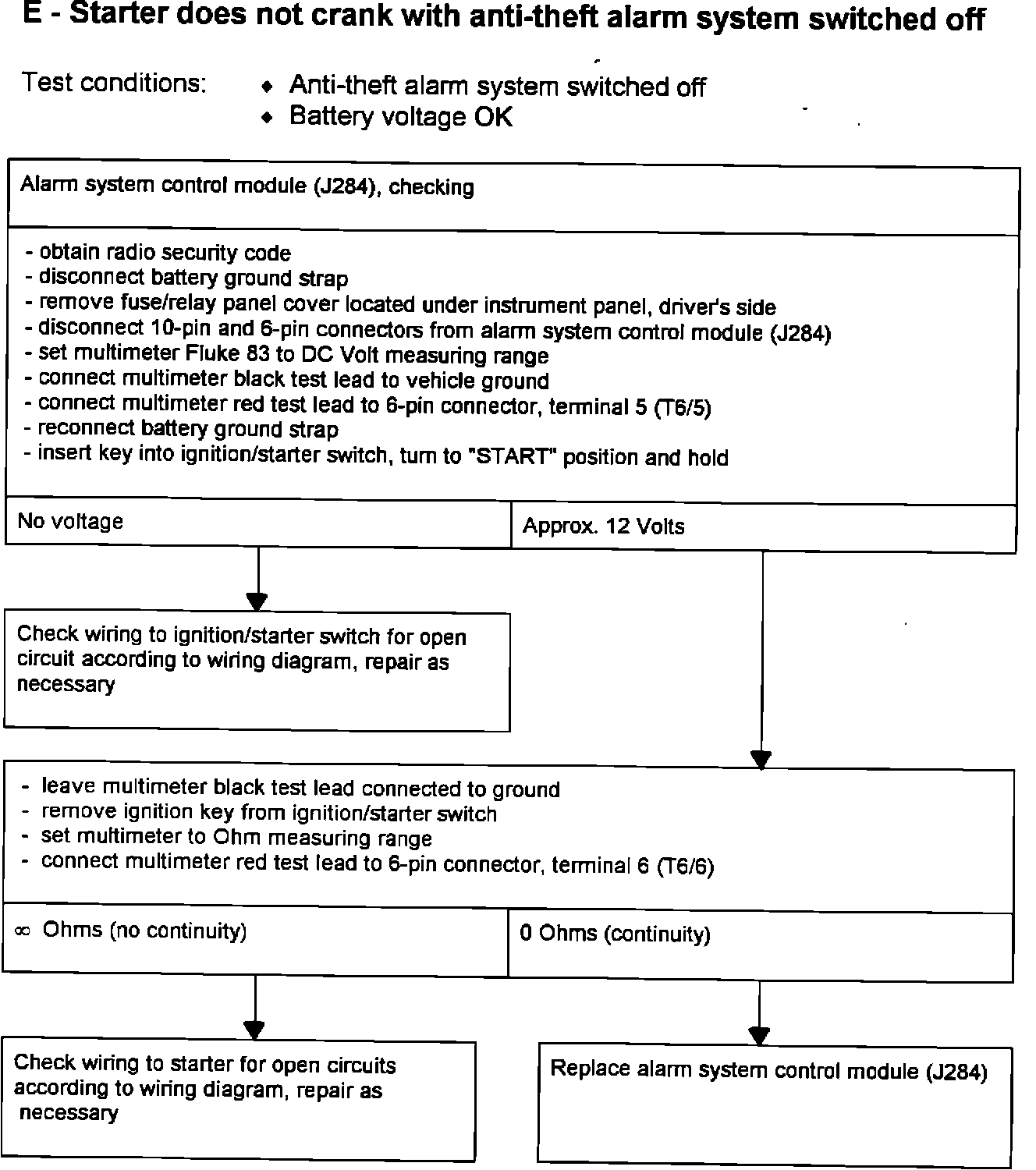

E - Starter does not crank with anti-theft alarm system switched off

The following tools are required for troubleshooting.

^ Multimeter Fluke 83 or US 1119
^ Connector test kit VW 1594
^ Valid wiring diagram
