Heater Box, Assembly

Heater Box, Assembly

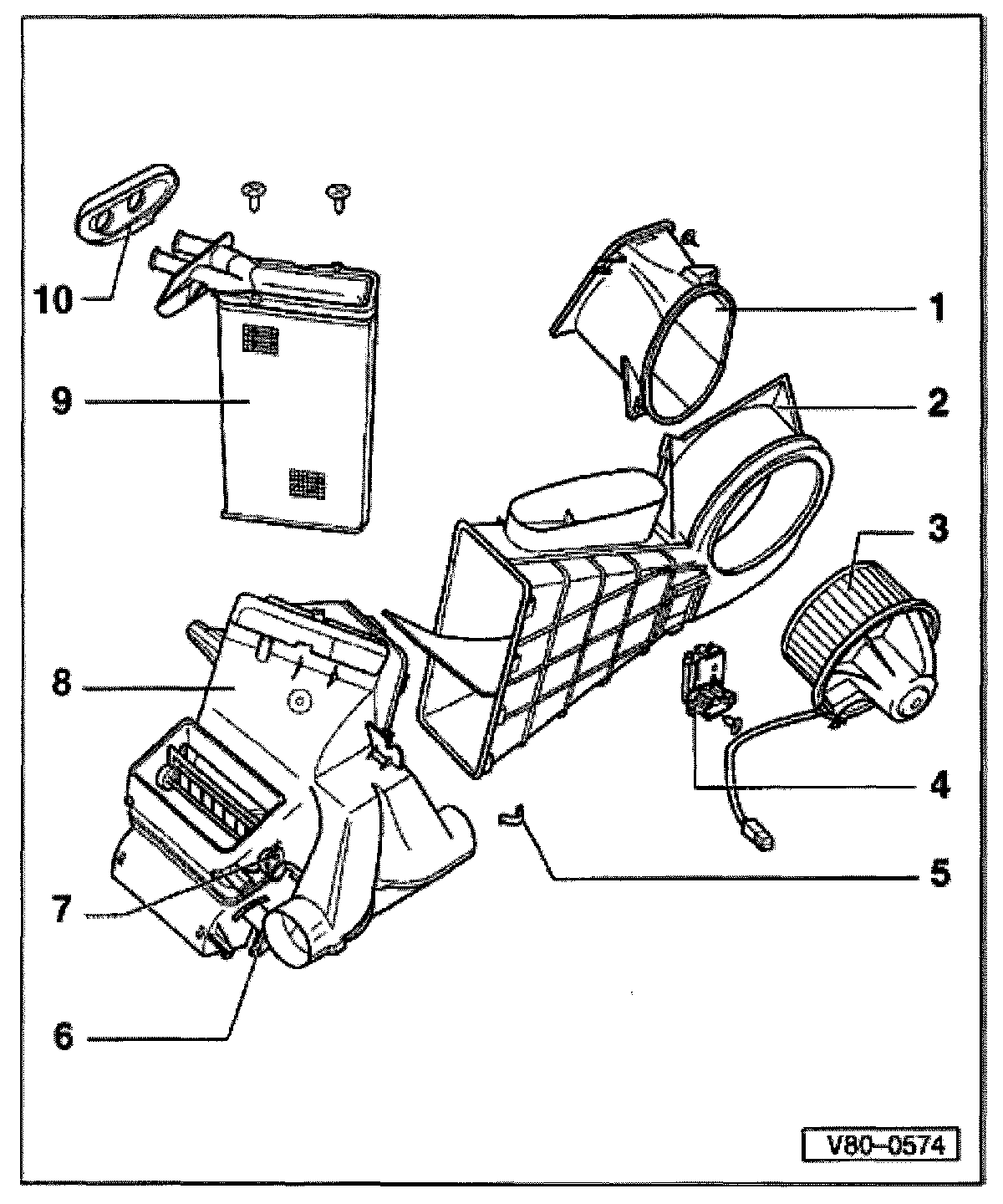

1 - Air intake duct
2 - Fresh air blower duct
3 - Fresh air blower -V2-
4 - Fresh air blower series resistor with fuse -N24-
5 - Clip
6 - Footwell flap lever
- Removing footwell flap, unclip lever using a screwdriver
7 - Defroster flap lever
- To remove defroster flap, unclip lever using a screwdriver
8 - Air distribution housing
9 - Heater core
- Install seals around entire circumference of heater core
10 - Gasket
