Removing

- Remove Battery Charger -A10- See 'Starting and Charging, Battery.' Service and Repair







- Remove upholstered top -1-, panel -2- and insert panel -3-.

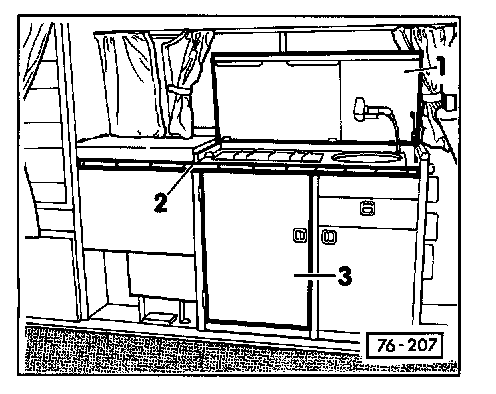

- Lift kitchenette cover -1-.
- Remove guide rail -2-.
- Open door of left side storage compartment -3- and remove.

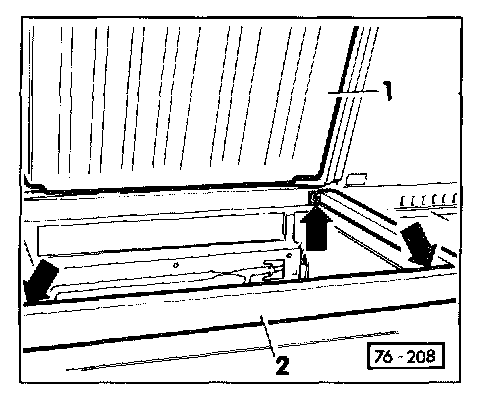

- Raise refrigerator - lid -1-.
- Remove frame -2- (three recessed screws -arrows-).

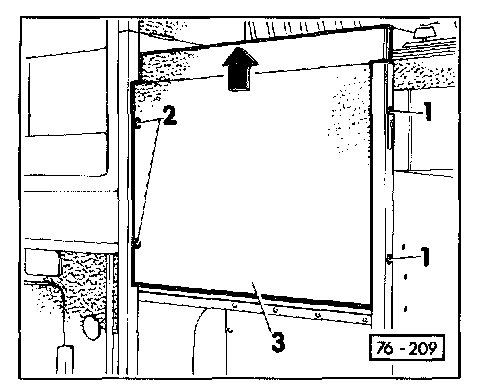

- Remove recessed screws -1-.
- Pry off caps -2-, remove recessed screws and lift out screen cover -3- upward.

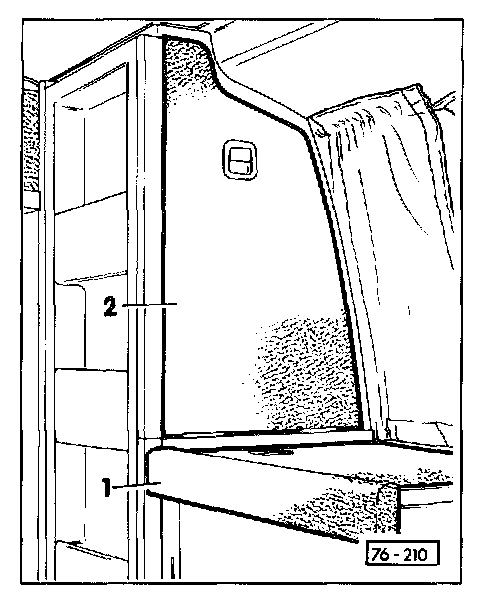

- Close refrigerator -I- -1- lid.
- Open clothes closet -2- flap and remove.
- Open refrigerator -1 - lid.

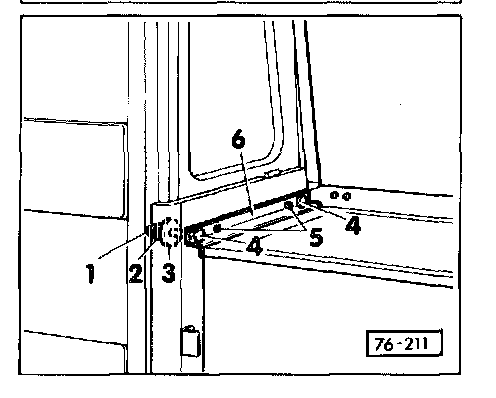

- From inside clothes closet, pry off caps -1 - (if applicable-, remove hex nuts -2-, remove washers -3- and press out saucer-head screws -4-.
- Remove recessed screws -5-, if necessary remove refrigerator lift support screws.
- Remove cover -6-.

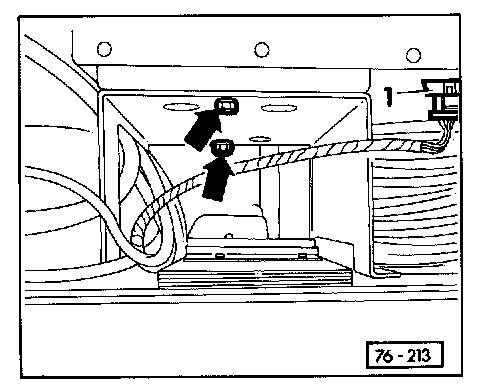

- Remove recessed screws -arrows- and remove angle bracket -1-.







- Disconnect plug -1- on underside of refrigerator -I-.
- Remove hex bolts -arrows- from bottom of refrigerator -I-.

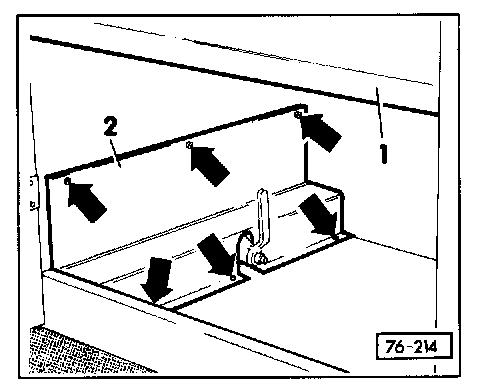

- Remove false bottom -1- from kitchenette left-side storage compartment.
- Remove cover -2- (six recessed screws -arrows-).

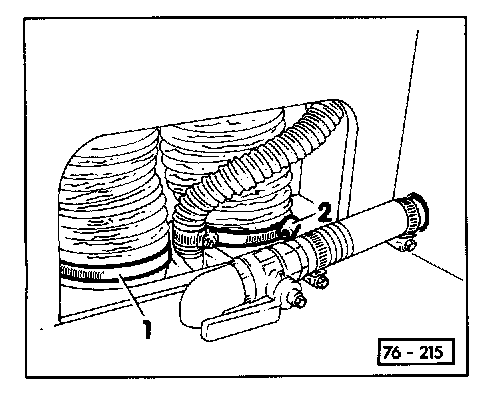

- Loosen screw clamps -1 - and -2- and disconnect vent hoses from base connections.
- Pull out cover for cooking stove.







- Remove recessed screws -arrows-.
- Lift out refrigerator.
