Connector Locations

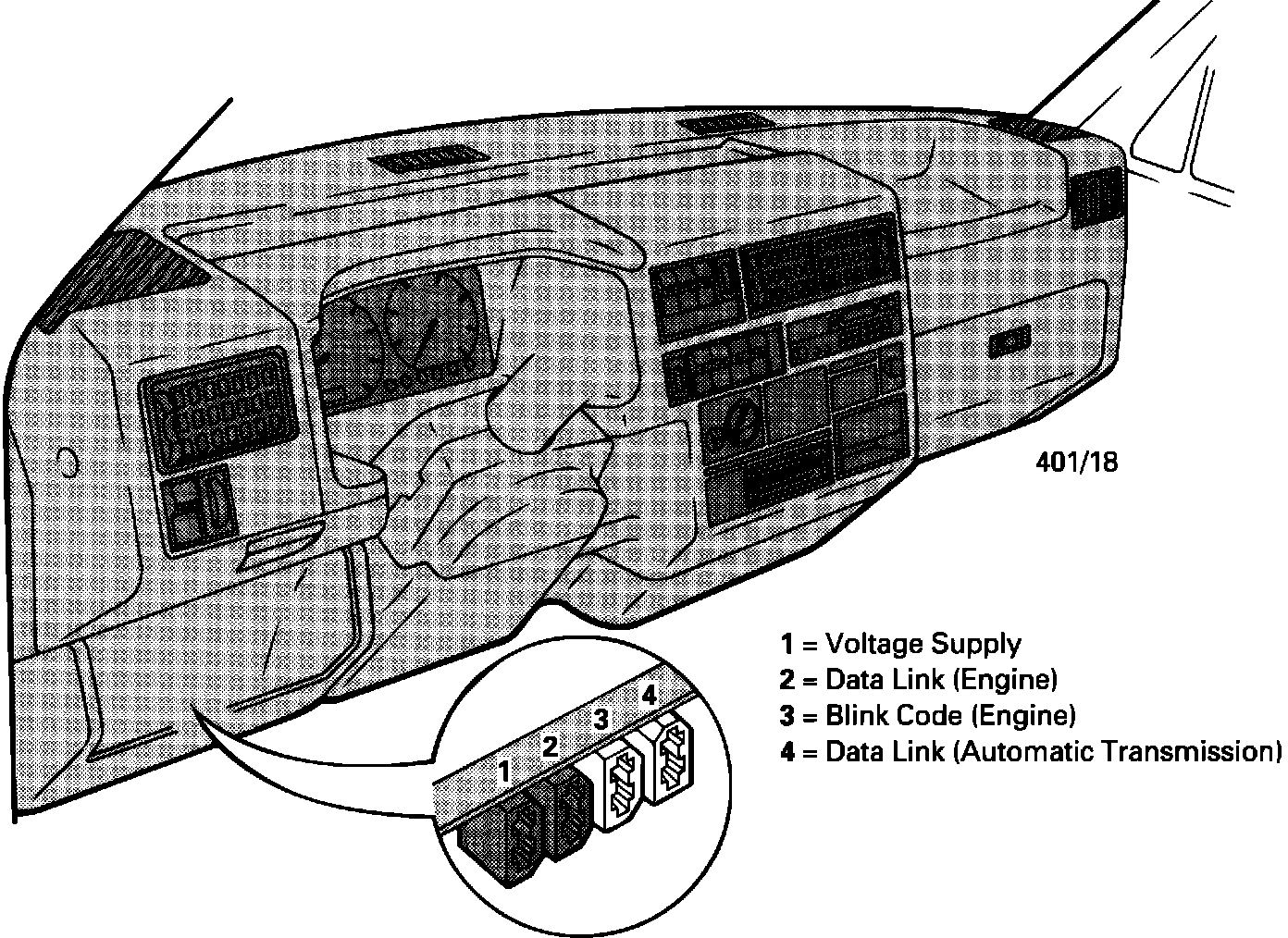

Data Link Connectors:





The diagnostic connectors are located under the driver's side, in front of fuse/relay panel.
