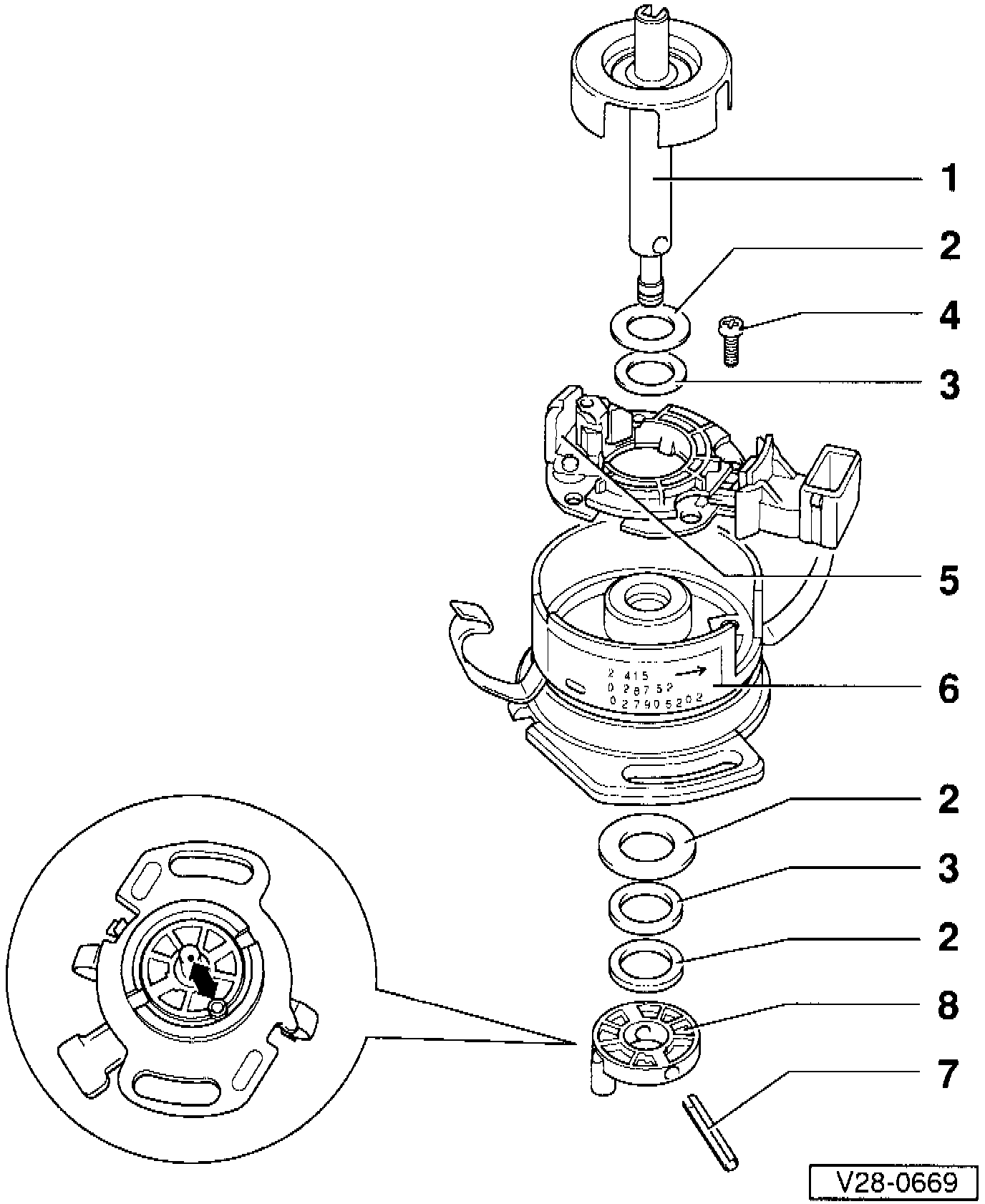

Distributor, Ignition

NOTE: When assembling, ensure that coupling (item 8) can be moved slightly on the pin (item 7) and distributor shaft (item 1) play is not restricted.





1 - Distributor shaft
^ with Camshaft Position (CMP) sensor trigger wheel
^ pull out after removing spring pin (item 7)

2 - Shim(s)

3 - Plastic washer

4 - 3 Nm (127 in lb)

5 - Camshaft Position sensor G40

6 - Distributor housing

7 - Spring pin

8 - Coupling
^ before removing, mark position of drive dog to shaft (item 1)
