Installation

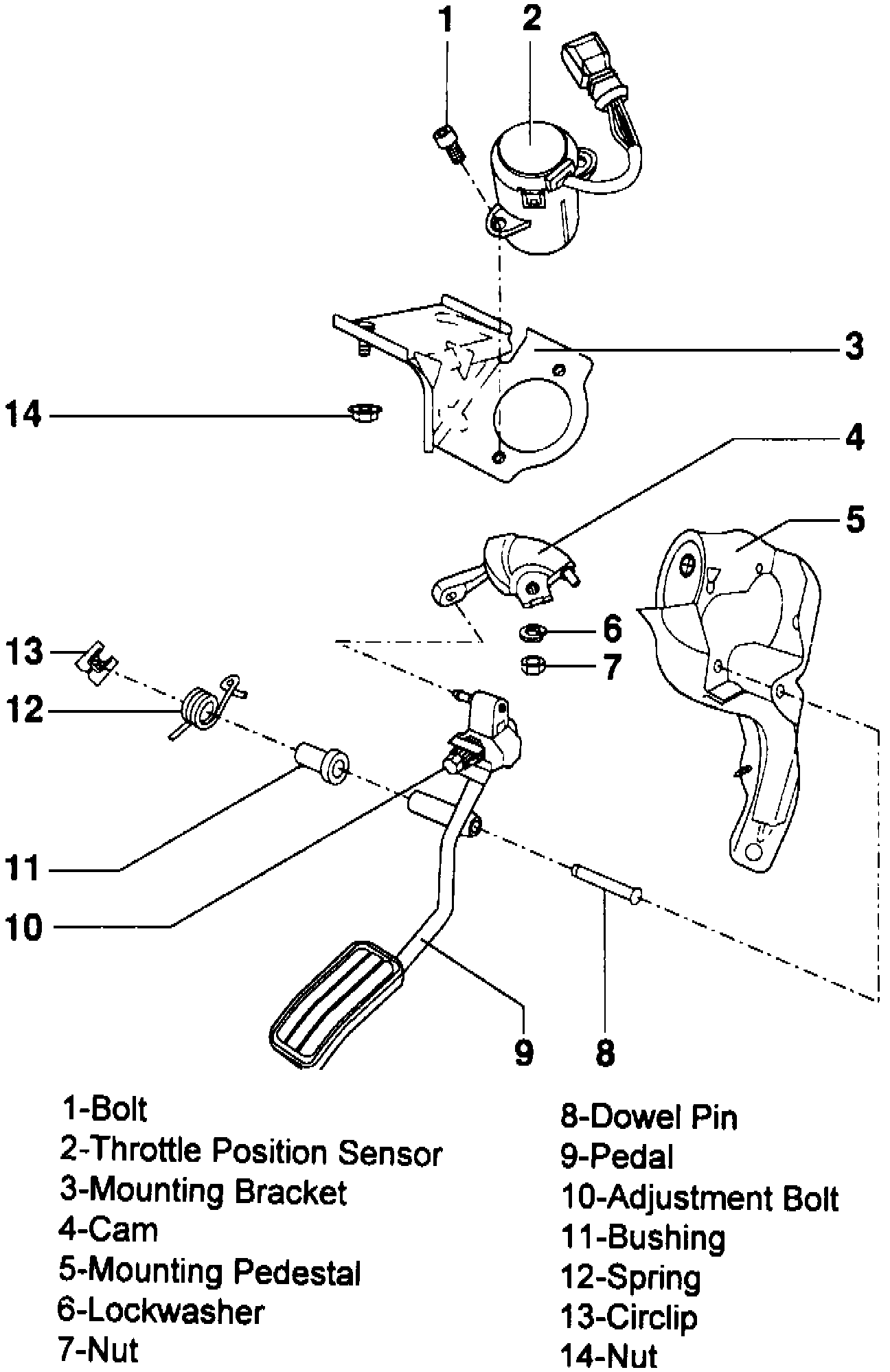

Fig. 20 Exploded View Of Throttle Position Sensor:

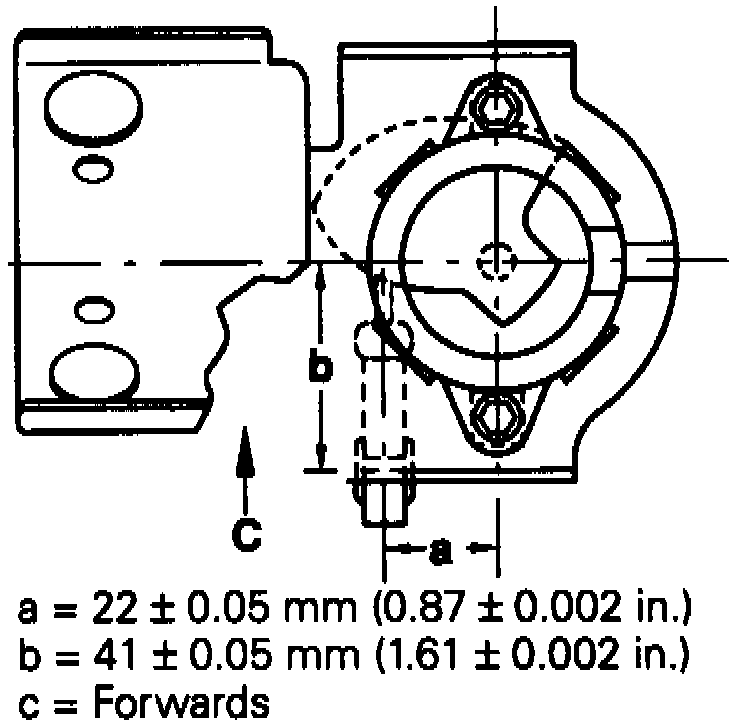

Fig. 21 Throttle Position Sensor Initial Setup:

1. During component installation, refer to Figs. 20 & 21 for component locations and basic settings.
2. Secure TP sensor to mounting bracket, then cam to sensor using Fig. 21 for basic setting adjustments.
3. Secure bracket with sensor to vehicle, then install pedal, bushing, spring, pin and clip.
4. Connect wiring connector, then proceed to "Adjustments."
