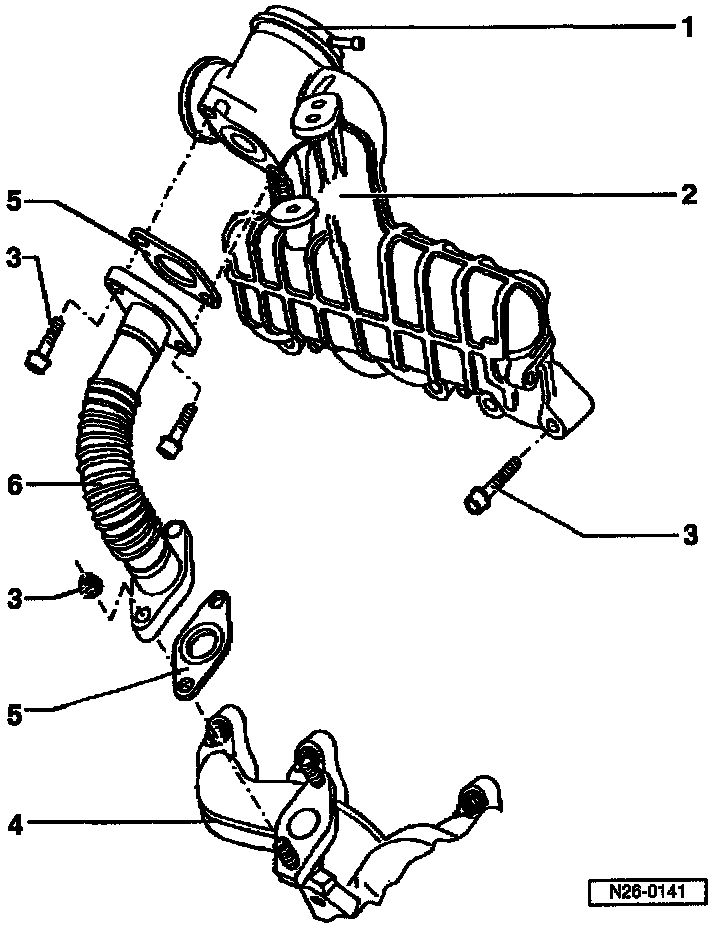

Engine Code 1Z
NOTE: Always replace self-locking nuts.
1.
EGR valve -
Part of intake manifold assembly, cannot be individually replaced
2.
Intake manifold
-
With integral
EGR valve 3.
25 Nm (18 ft lb).
4.
Exhaust manifold
5.
Gasket
-
Always replace
6.
Connecting pipe
