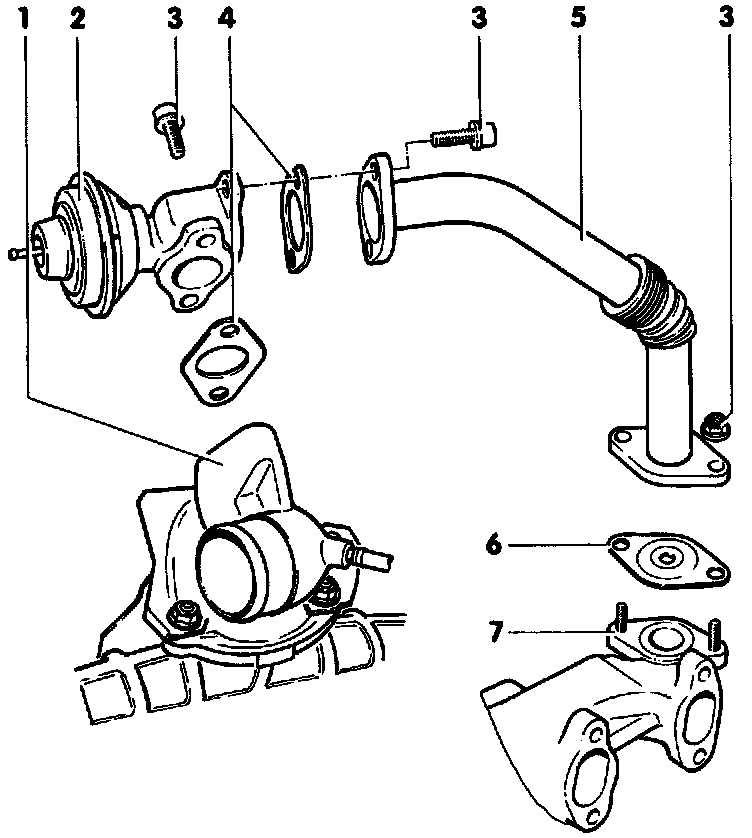

Engine Code AAZ





1. Intake manifold
2. EGR valve
3. 25 Nm (18 ft lb)
4. Gasket
- Always replace
5. Connecting pipe
6. Gasket
- Always replace
- Restriction hole 9 mm diameter
7. Exhaust manifold
