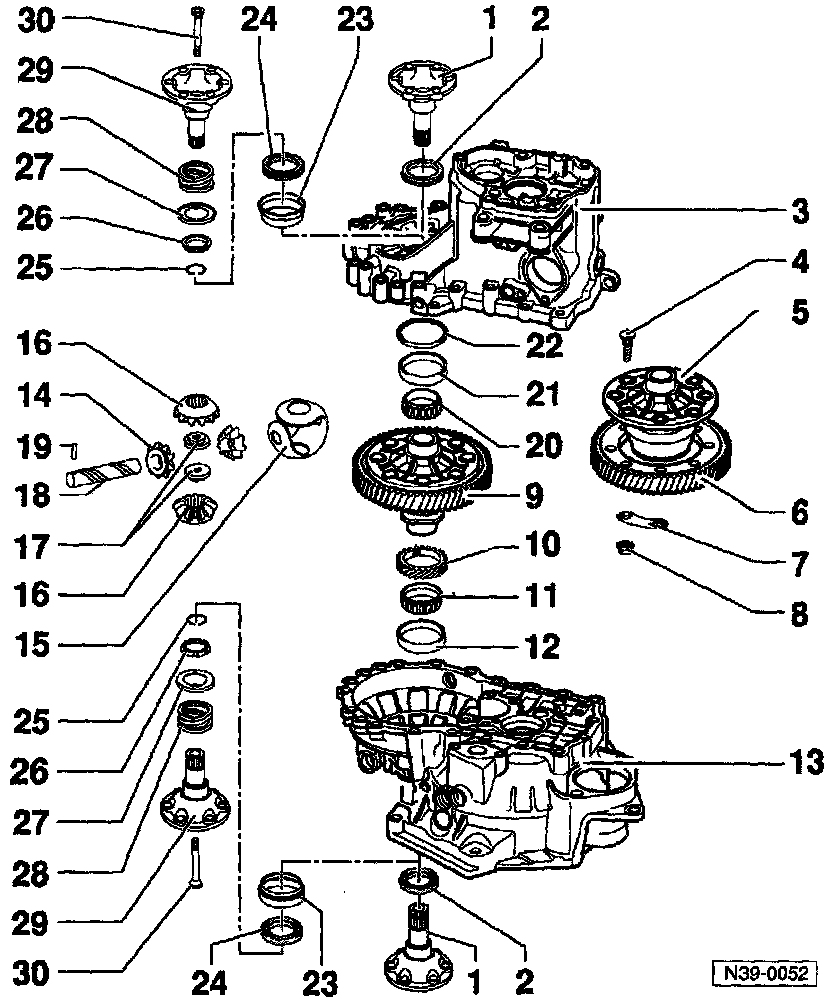

Differential, Manual Transaxle

1 - Flange shaft -- For transmissions without springs behind axle flanges.
2 - Oil seal -- For transmissions without springs behind axle flanges.
3 - Transmission housing
4 - Bolt
5 - Differential housing -- bolt to final drive gear.
6 - Final drive gear -- Riveted on in production, replacement is bolted on.
7 - Packing plate
8 - Nut
9 - Differential housing
10 - Speedometer drive gear
11 - Tapered roller bearing inner race
12 - Tapered roller bearing outer race
13 - Clutch housing
14 - Differential pinion gear
15 - One-piece thrust washer
16 - Differential side gear
17 - Threaded piece
18 - Differential pinion shaft
19 - Spring pin -- for securing differential pinion shaft.
20 - Tapered roller bearing inner race
21 - Tapered roller bearing outer race
22 - Shim
23 - Sleeve
24 - Oil seal
25 - Circlip
26 - Tapered ring
27 - Thrust washer
28 - Spring -- installed behind axle flange.
29 - Axle flange -- with drilling for cone-head bolt.
30 - Cone-head bolt
