Diagnostic Trouble Code (DTC) Overview

NOTES:
- The DTC overview is listed according to SAE and VAG code.
- After repairing malfunctions the DTC memory must be cleared Clear DTC Memory, Mode 4 and the readiness code created again. Readiness Code, Creating

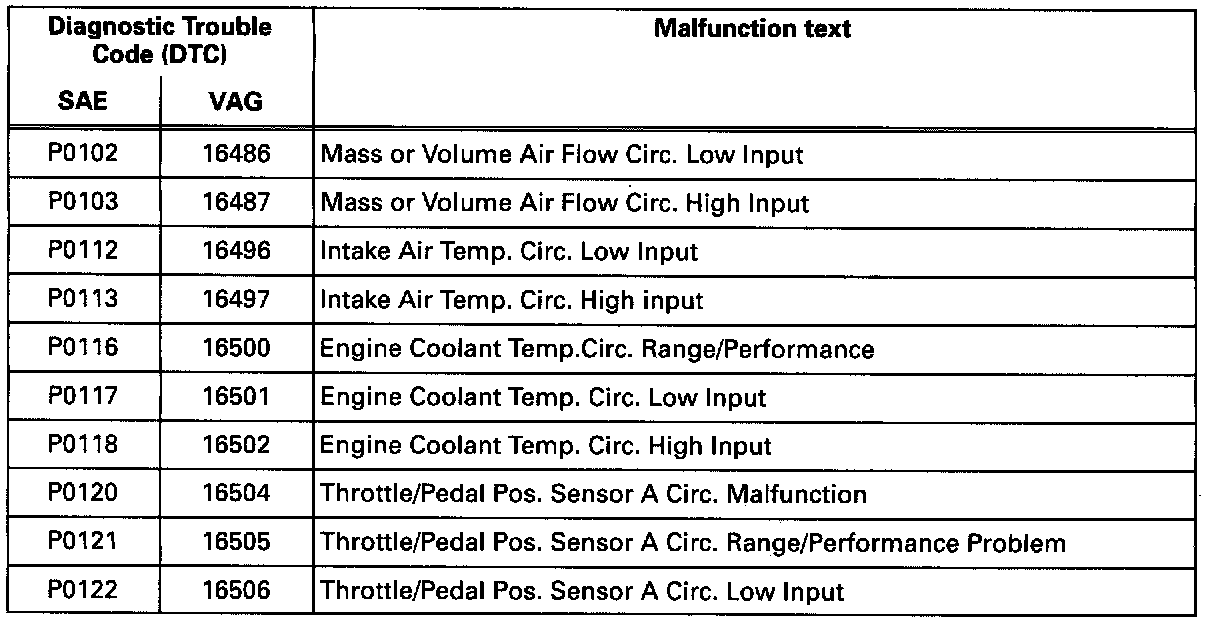

P0102 To P0122 [SAE] 16486 To 16506 [VAG]:

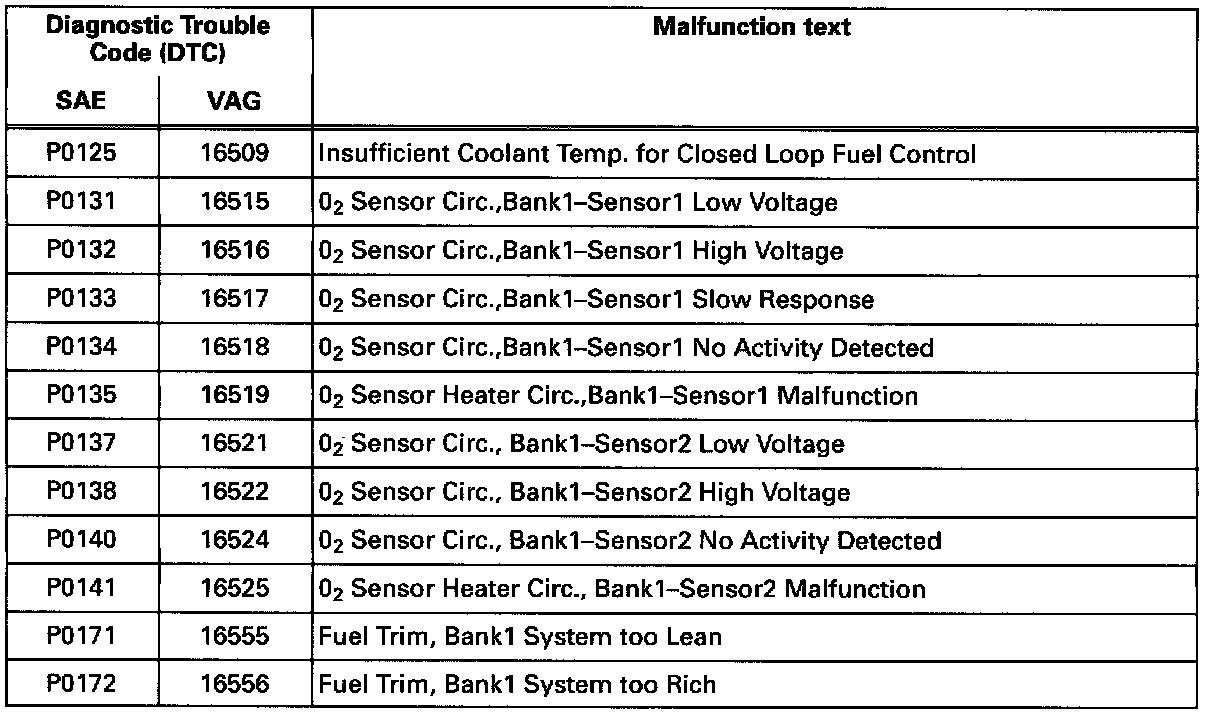

P0125 To P0172 [SAE] 16509 To 16556 [VAG]:

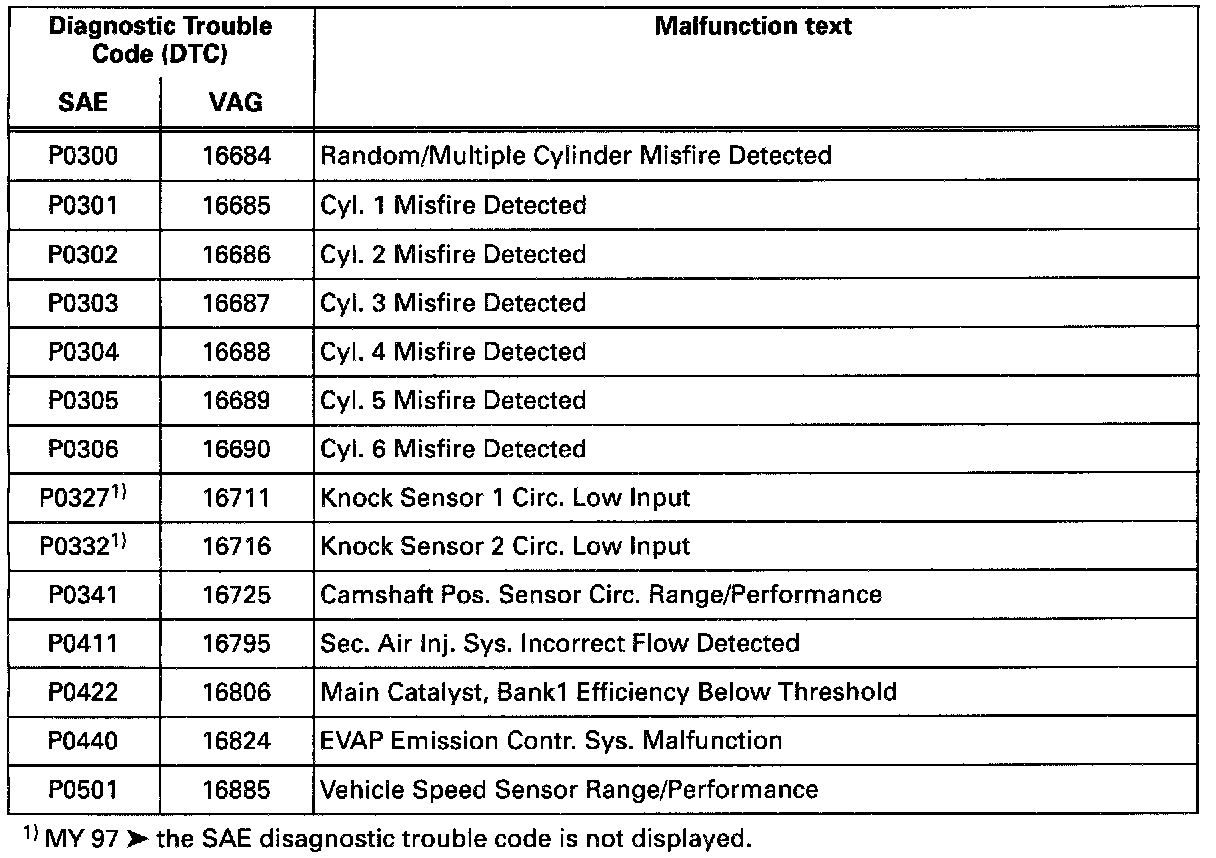

P0300 To P0501 [SAE] 16684 To 16885 [VAG]:

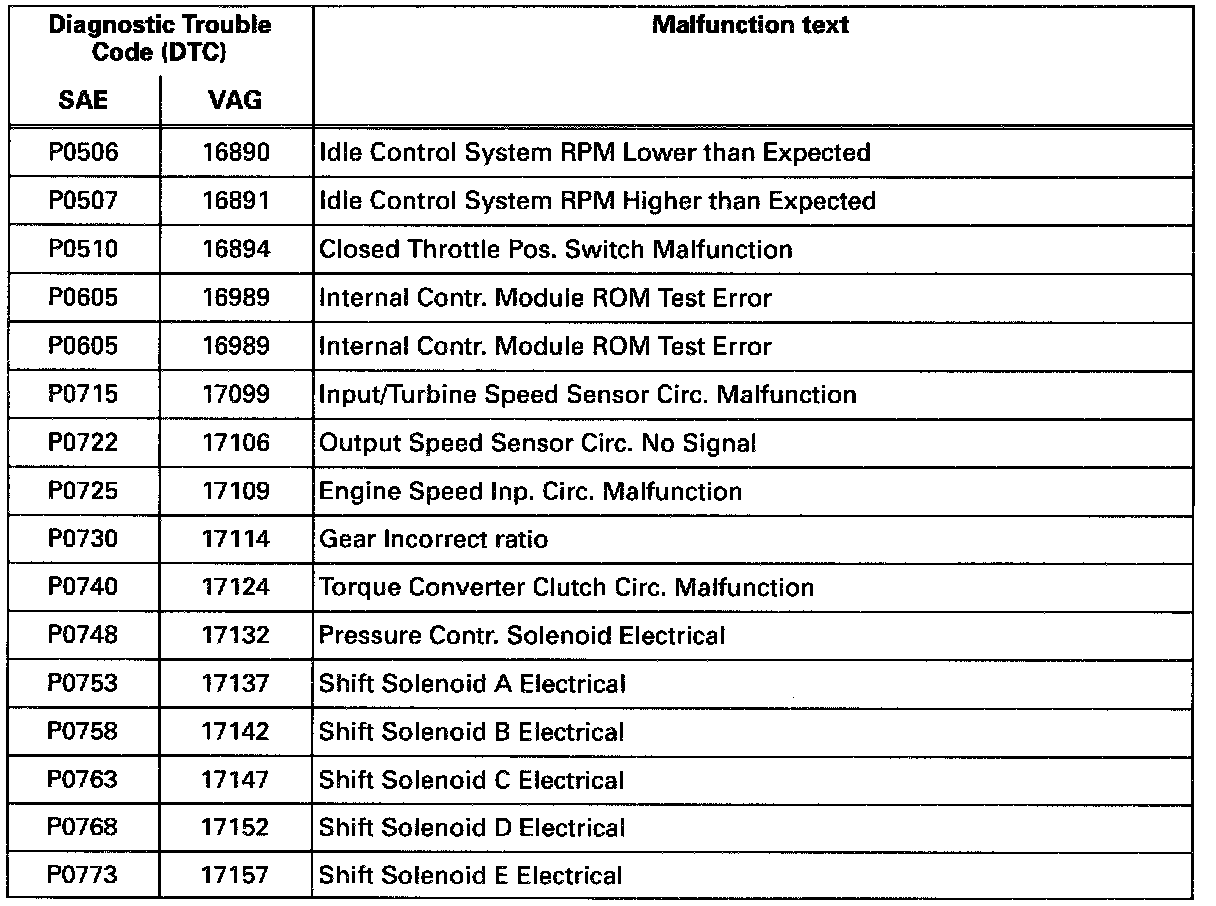

P0506 To P0773 [SAE] 16890 To 17157 [VAG]:

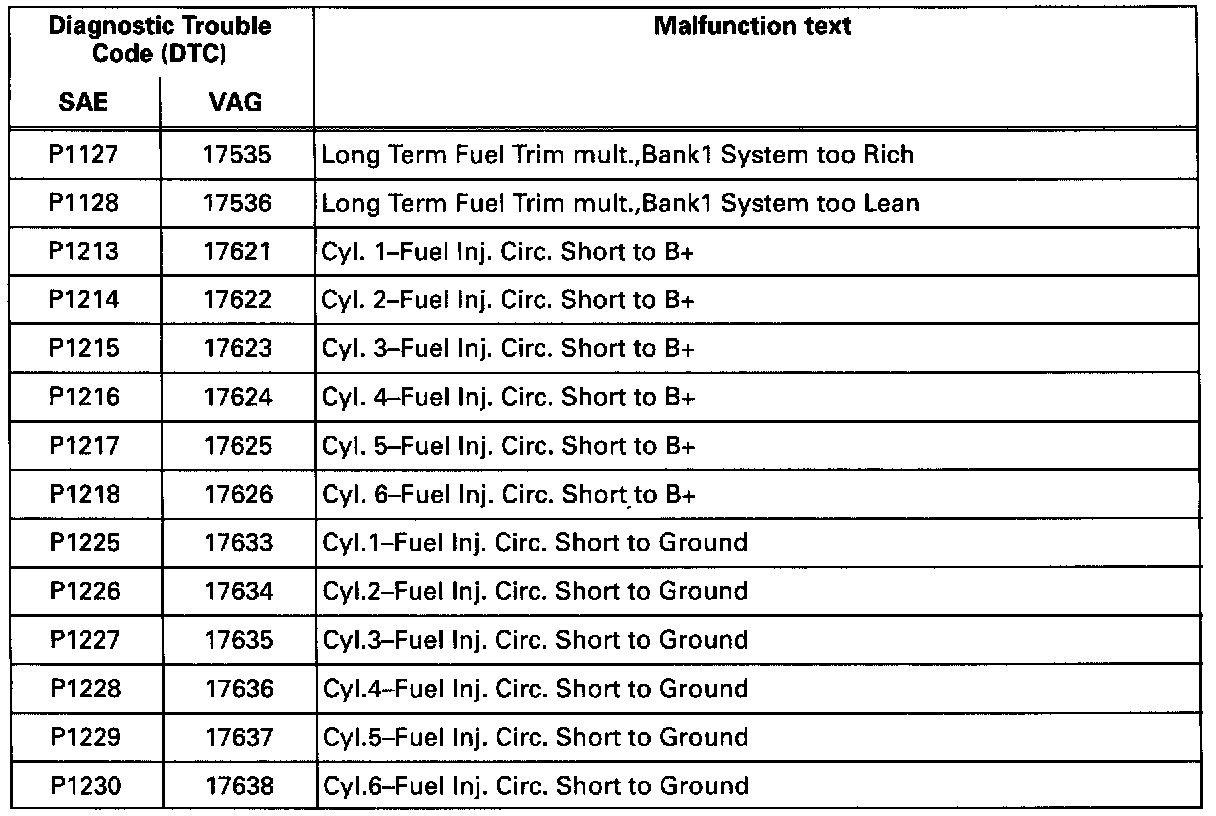

P1127 To P1230 [SAE] 17535 To 17638 [VAG]:

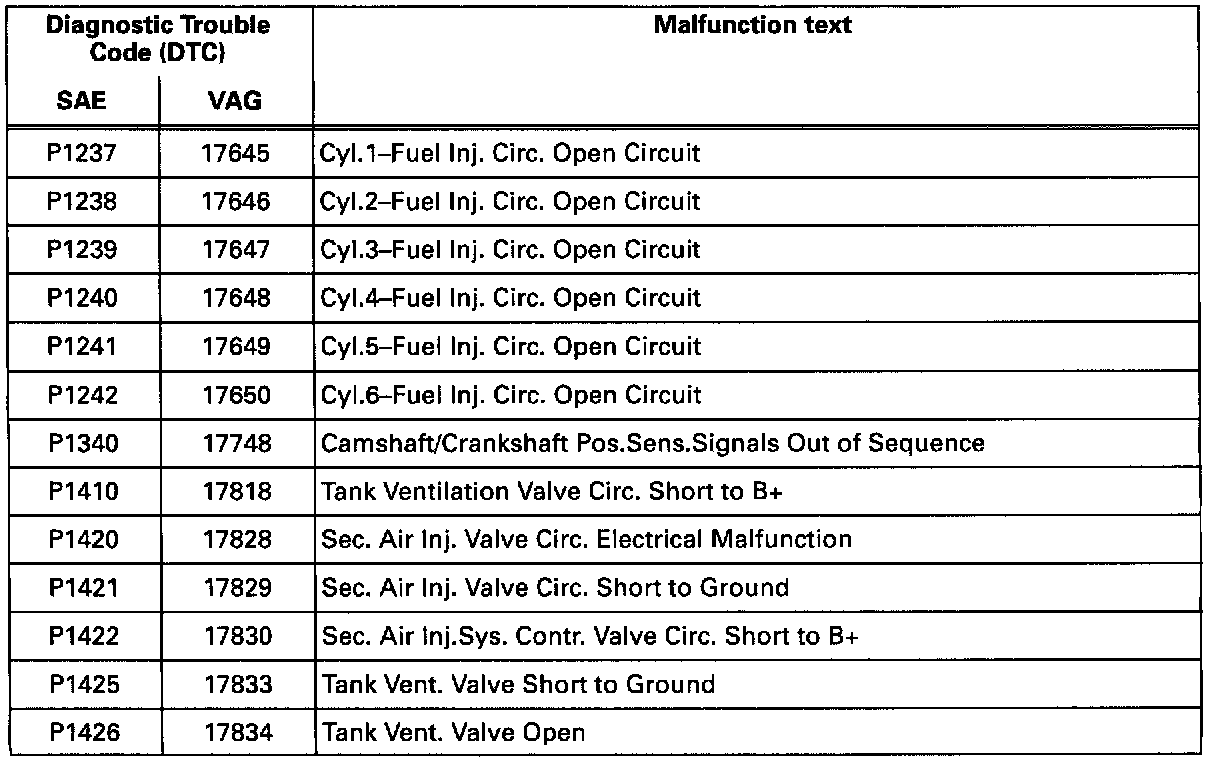

P1237 To P1426 [SAE] 17645 To 17834 [VAG]:

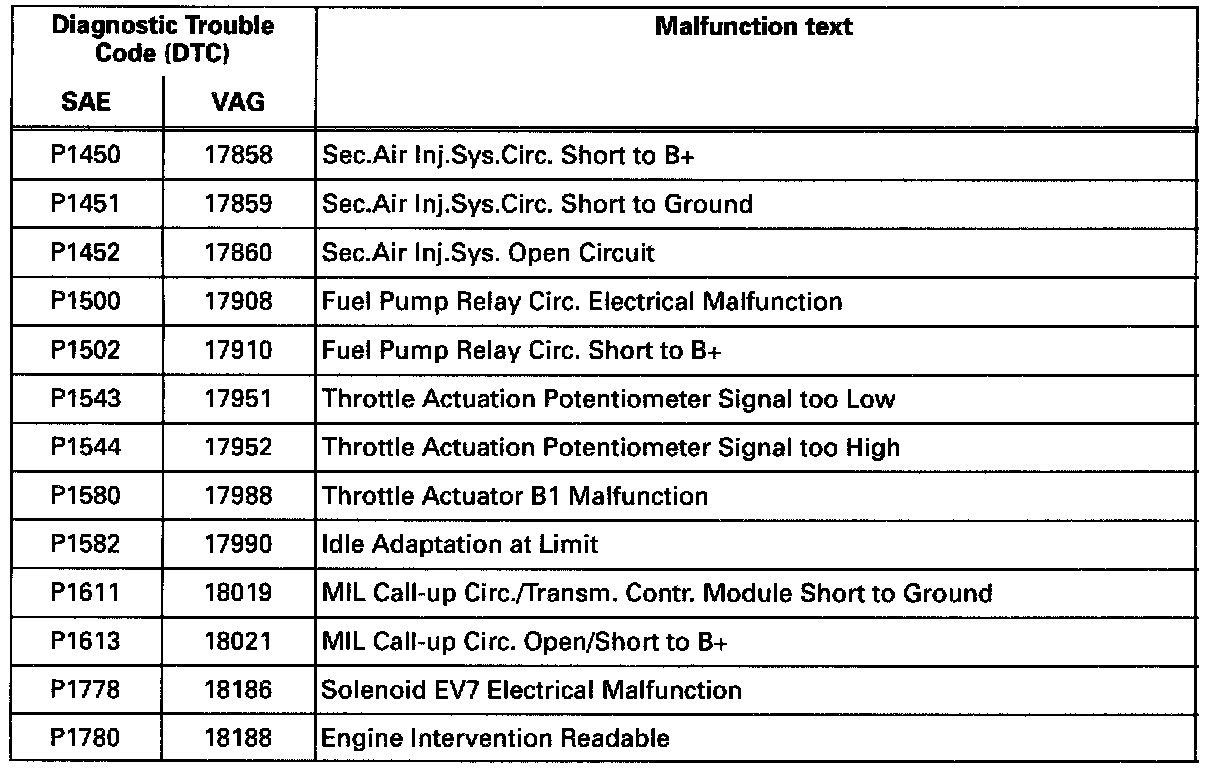

P1450 To P1780 [SAE] 17858 To 18188 [VAG]:
