Transmission Specifications and Clearances

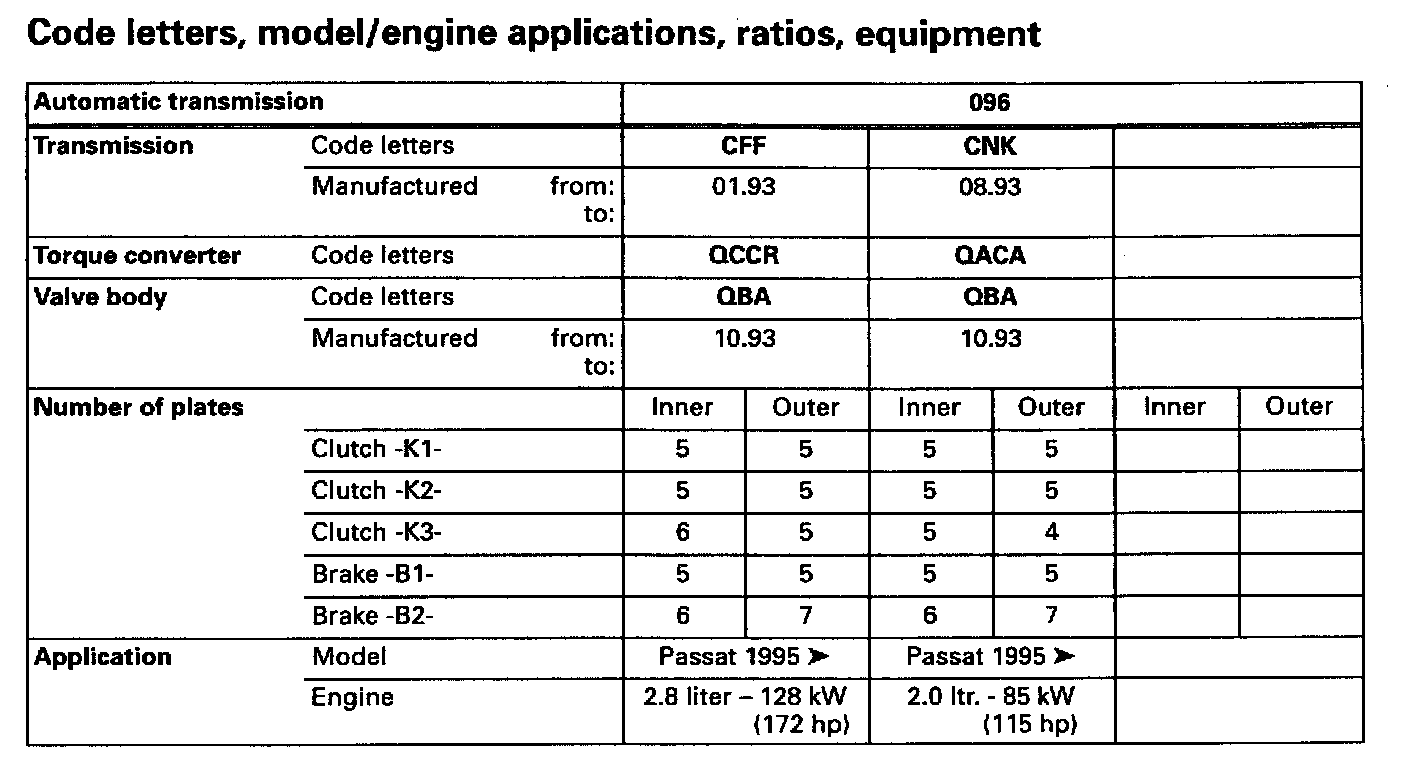

Automatic Transmission 096Transmission ID:
Continued:
Capacities Specifications:
Shift Point Specifications:
Stall Speed Specifications:
Drive Pinion And Output Gear Shim Table Specifications:

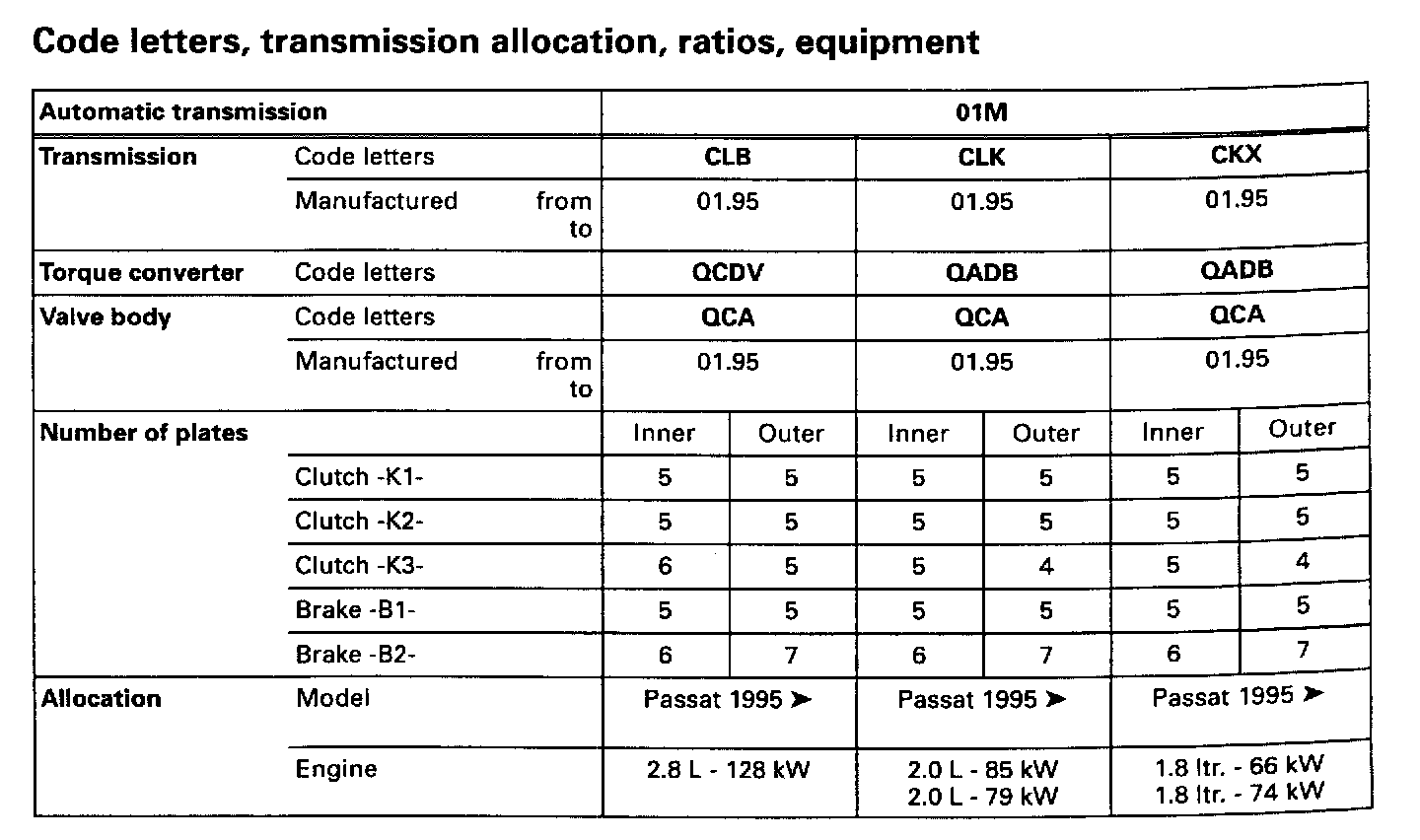

Automatic Transmission 01MTransmission Code Letters:
Continued:
Capacities:

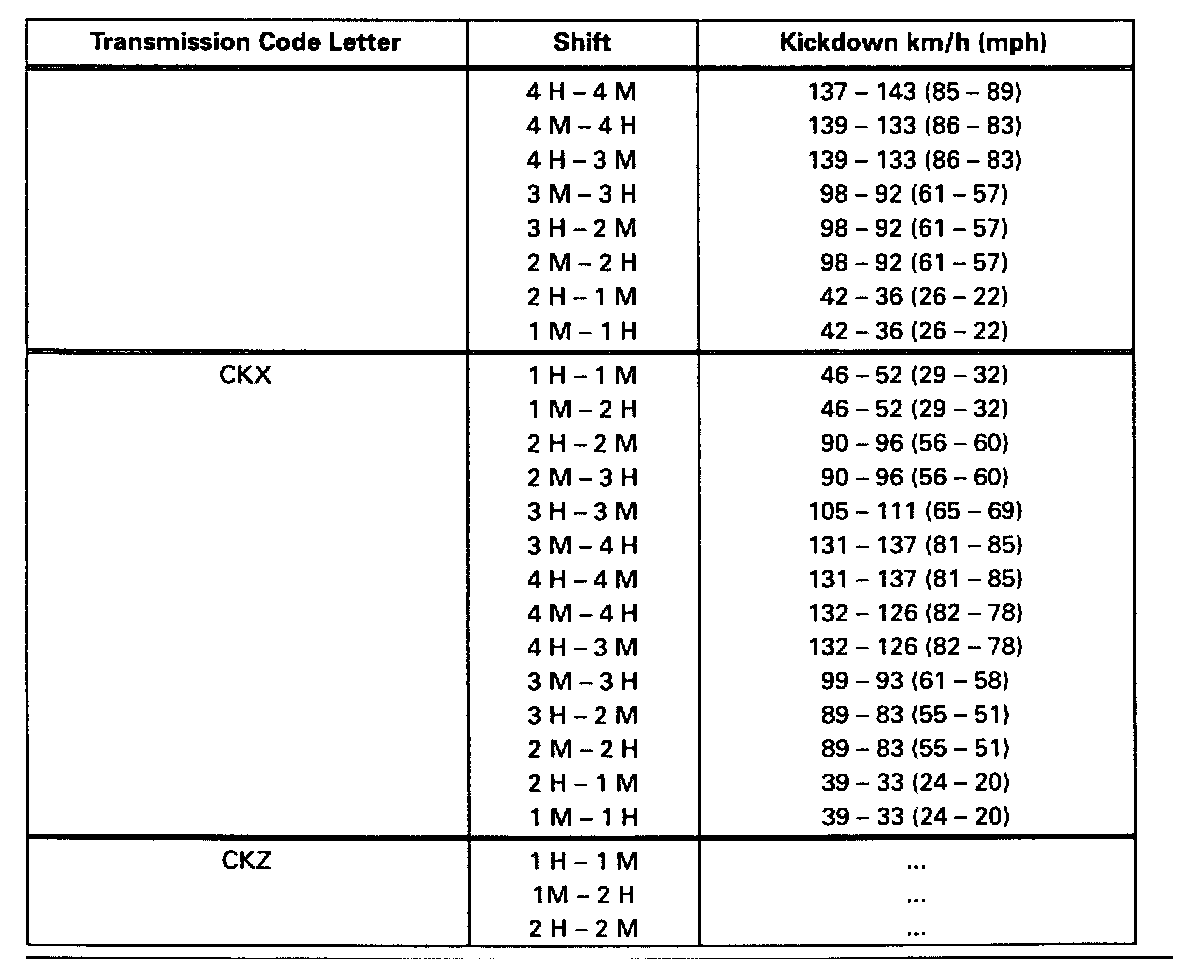

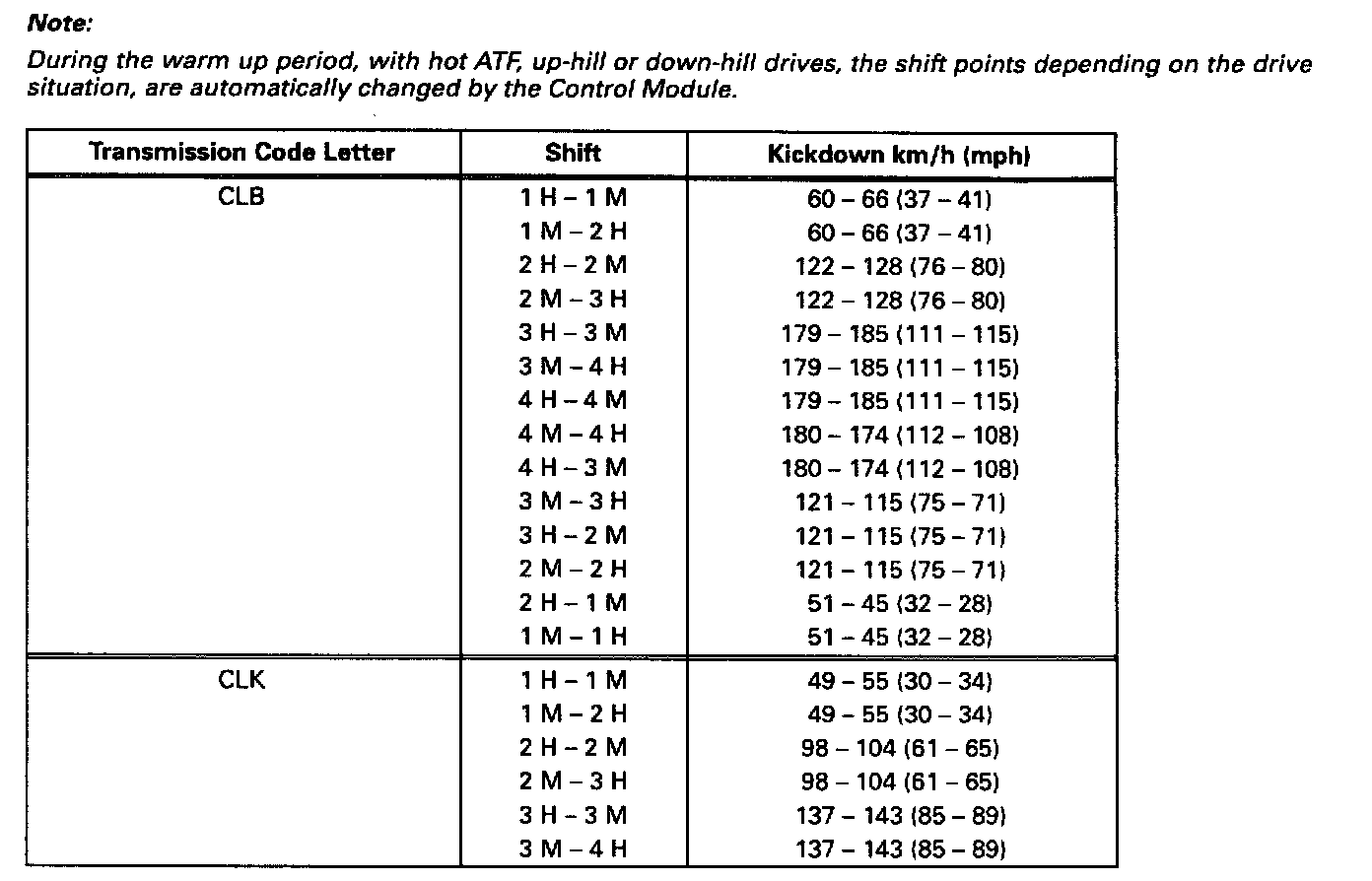

Shift Point Specifications:
Continued:
Continued:
Shift points in km/h (mph)
