01M Transmission

^ The solenoid valves can be checked while driving with the measured value block 08, group number 04.

^ The table shows the Solenoid Valves -N88-, -N89-, -N90- and -N91- as controlled in each selector lever position. These solenoid valves control the shift valves to the respective gears.

^ The Solenoid Valves -N92 and -N94- are supplementary valves which influence shifting comfort, and are only controlled during gear changes and displayed in zones 5 and 6.

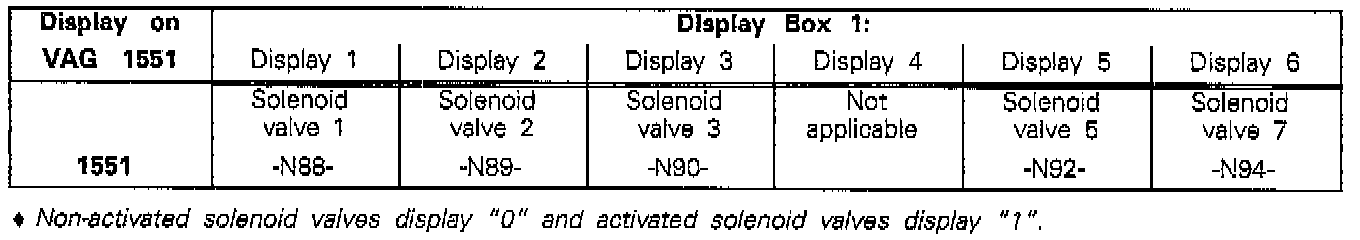

^ VAG 1551 display box 1 has 6 characters (0000 00) and is read as listed in the above image.
