Control Assembly: Service and Repair

Heating/ventilation Controls and Trim Panel, Removing and Installing:
- Fresh air blower switch -E9-
- Fresh air/recirculating flap switch -E159-

Removing:

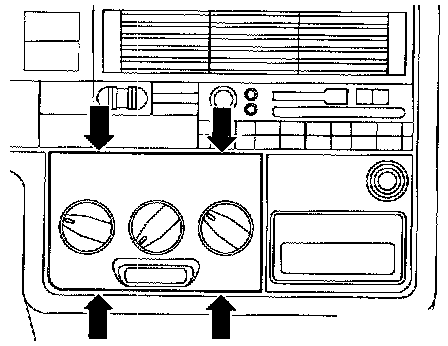

- Carefully remove trim panel at locating lugs -arrows- with a screwdriver. Take care not to damage instrument panel.
- Remove ashtray/trim panel.
- Remove footwell vent console. Service and Repair

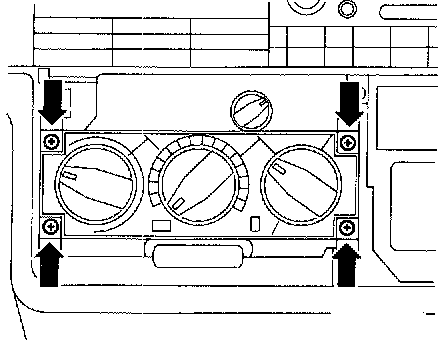

- Remove screws from instrument trim panel -arrows-.
- Push controls with cables attached below instrument panel.
- Disconnect electrical connectors.
- Detach cables from controls.

Installing:
Install in reverse order, noting the following:
- Before installing controls, attach cables first. Service and Repair (Without Air Conditioning)
