Camshaft Position Sensor - Revised ID Reference

Group: 01

Number: 97-11

Date: May 15, 1997

Subject:
DTC 16725, Camshaft Position (CMP) Sensor

Model(s):
Golf/Jetta with 2.0L engine (code ABA) 1997 -->

File this Technical Bulletin in Repair Manual No.: W42 011 294 121A

Supersedes T.B. No. 01-97-03, issued Feb. 28, 1997








Note:

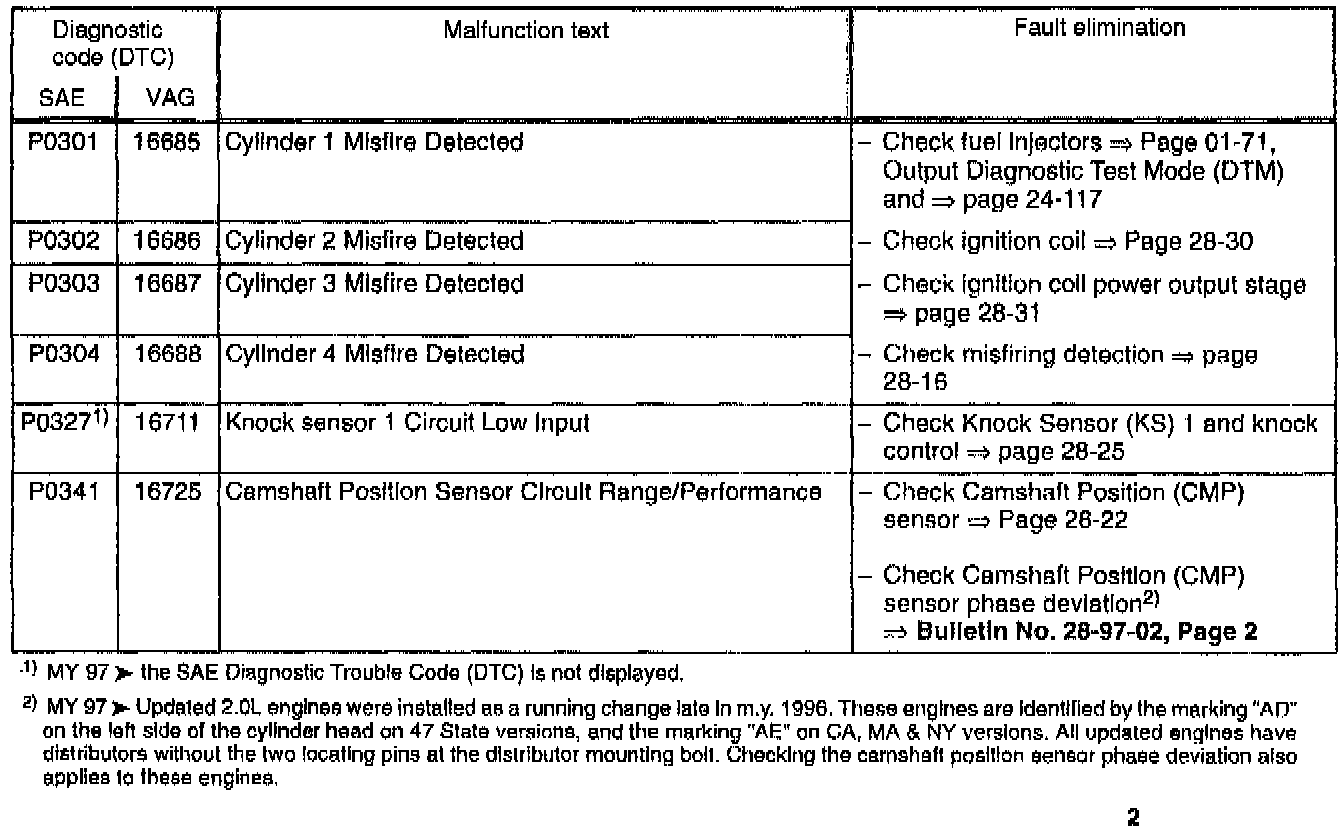

The page (originally issued with with T.B. No. 01-97-03) is revised to include an identification reference for CA, MA & NY engines.

This page will be integrated into the Repair Manual at the next update.

All references to existing Repair Manual pages are valid. References to new information in this Bulletin refer to the Technical Bulletin page number, highlighted in bold type.
