With Electronic Speedometer

Vehicle Speed Sensors

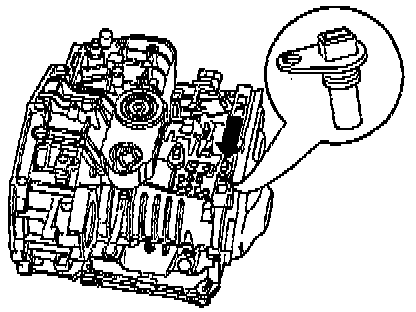

Transmission Vehicle Speed Sensor (VSS) -G38-, location




The Transmission VSS arrow is located on top of the transmission.

Vehicle Speed Sensor (VSS) -G68-, location




The VSS -G68- arrow is located on top of the transmission.

CAUTION: Do not interchange connector T2 for vehicle speed sensors -G38- and -G68-
