Air Bag Control Module: Locations

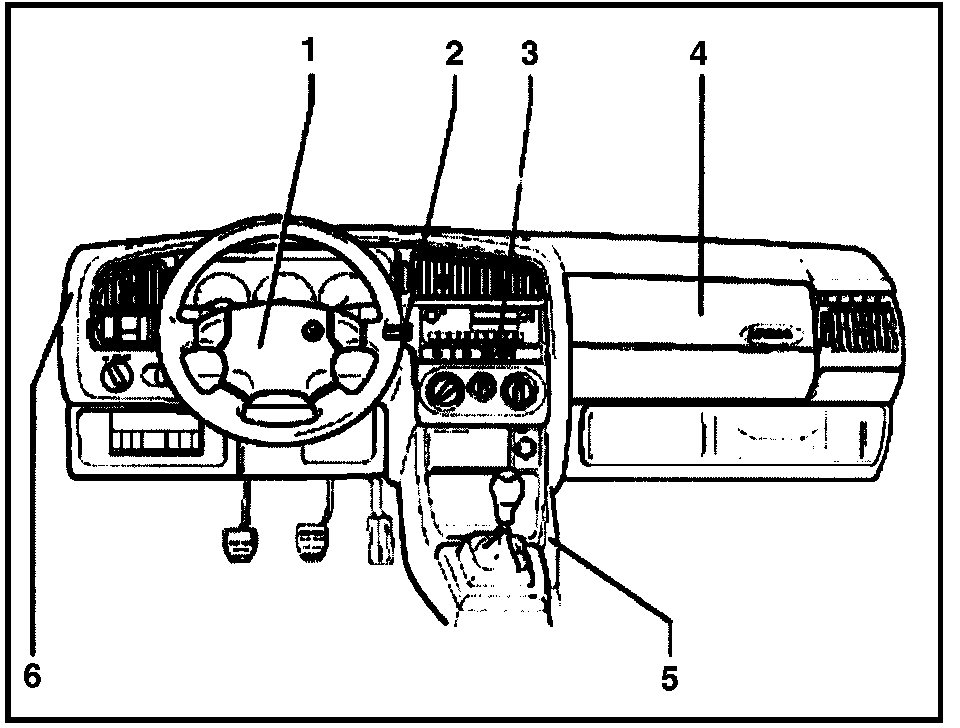

Component Location Overview 1.
Airbag unit - driver side
2.
Data Link Connector (DLC)
3.
Airbag Malfunction Indicator Lamp (MIL) K75
4.
Passenger - side airbag unit
5.
Airbag Control Module J234
6.
Central Ground (GND) point (behind instrument panel)
