4 Speed 098

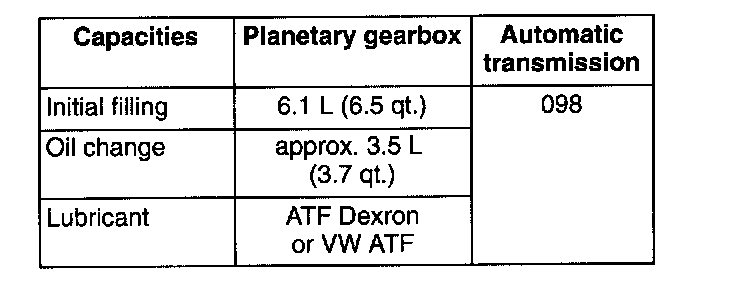

CAPACITIES

Planetary gearbox

Planetary Gearbox:

Type ATF Dexron or VW ATF
VW Part No. G 052 162 A2

Final drive

Final Drive:

Type Gear oil SAE 75W-90 (synthetic oil)
VW Part No. G 052 145 A1 (0.5L)
VW Part No. G 052 145 A2 (1.0L)
