Engine Control - DTC P1127 (17535) Set

Group: 01

Number: 99-16

Date: Sept. 30, 1999

Subject:
DTC P1127 (17535) Stored in DTC Memory

Model(s):
New Golf, New Jetta (2.0L, 2.8L VR6 and TDI Engine)
1999 with Engine Compartment Relay Panel

Condition
DTC P1127 (17535) stored in DTC memory.

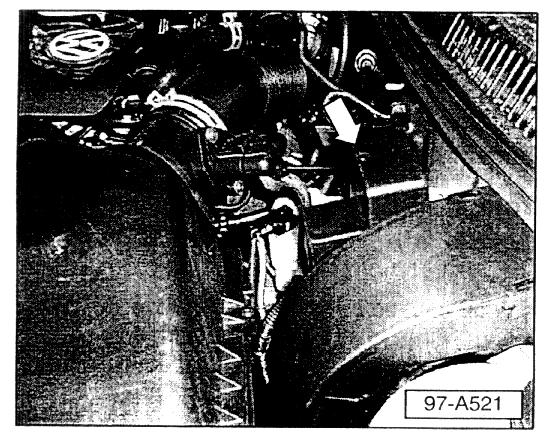

May be caused by the Mass Air Flow (MAF) sensor harness -arrow- contacting the engine compartment relay panel cover (when equipped).

Service
If harness contacts relay cover:





- Remove relay cover.

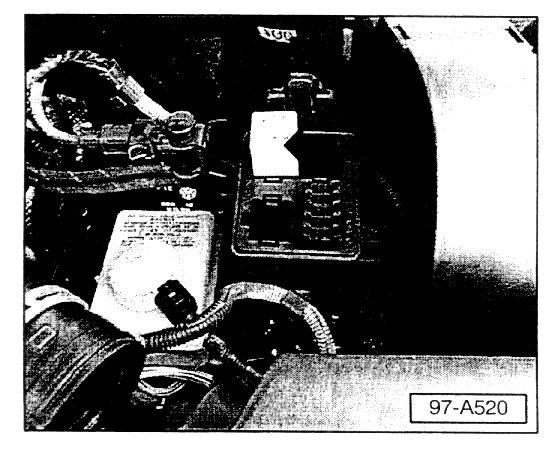

- Relocate relay -arrow- to the rear of relay housing as shown.

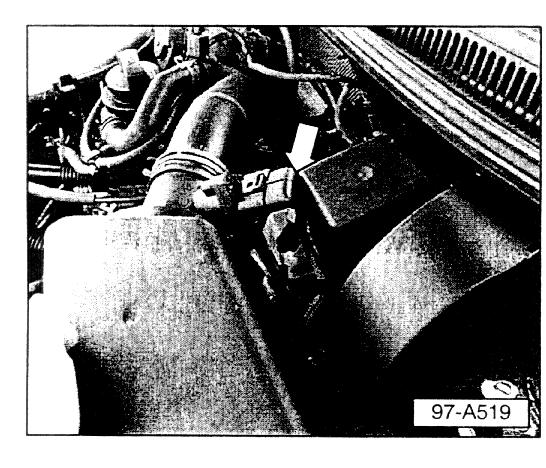

- Install Part No: 1J0 941 385A 01C (new relay cover) -arrow- as shown.

- Clear any stored DTC's.

CAUTION!
Part numbers are for reference only. Always check with your Parts Dept. for the latest parts information.

When procedure applies to vehicles with in the New Vehicle Limited Warranty, use the following:

Part Identifier: 9715

Labor Operation: 9715510 50TU
