Coolant Temperature Sensor/Switch (For Computer): Locations

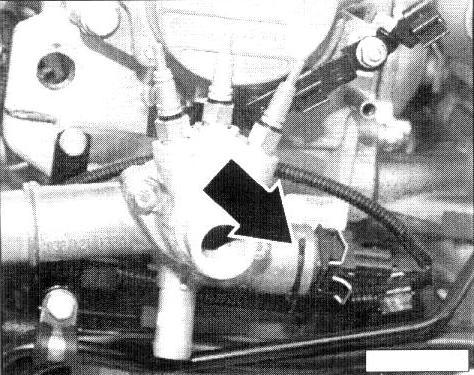

Component Location View: G2, G28, G32, G62:






G2 - Engine Coolant Temperature (ECT) Sensor, G62 - Engine Coolant Temperature (ECT) Sensor:






- in coolant flange on cylinder head, left side; integral with ECT sensor -G62-

- in coolant flange on cylinder head, left side, integral with ECT sensor -G2-
