Alternator: Locations

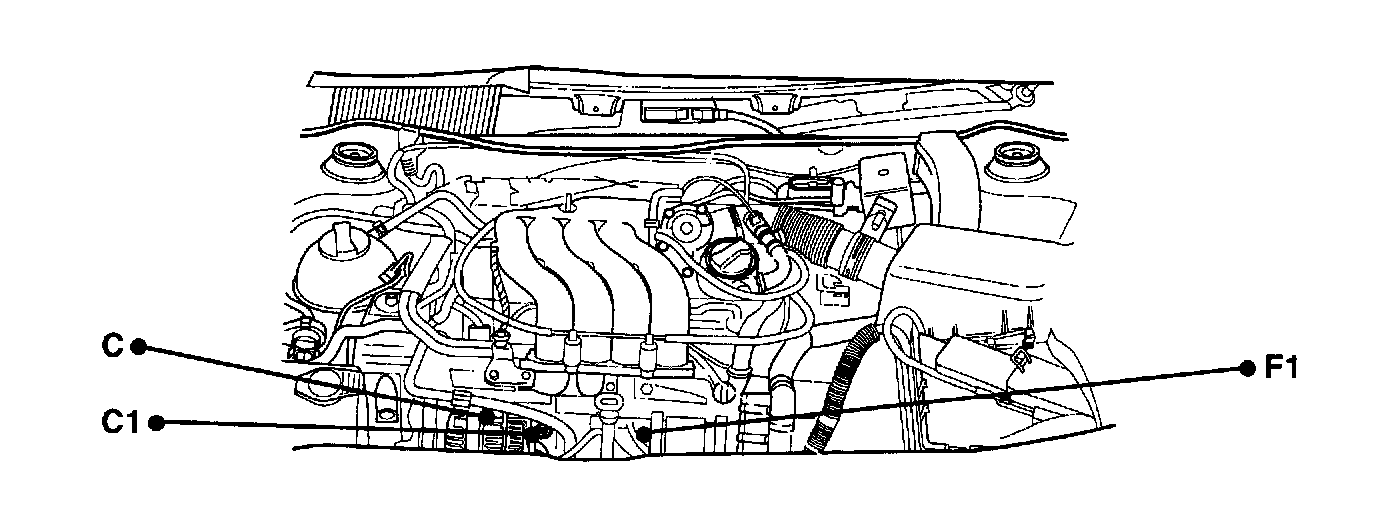

Component Location View: C, C1, F1:

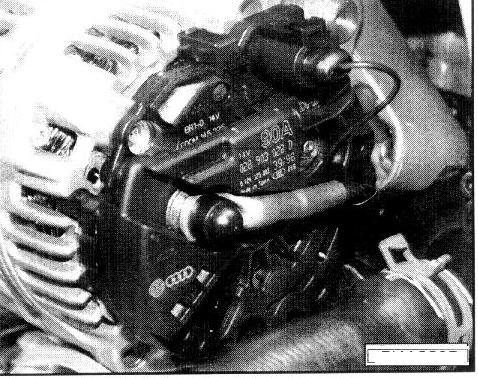

Back Of Generator:

C Generator (GEN)
- in front of engine, right side

C1 Voltage Regulator (VR)
- on Generator (GEN), in front of engine, right side
