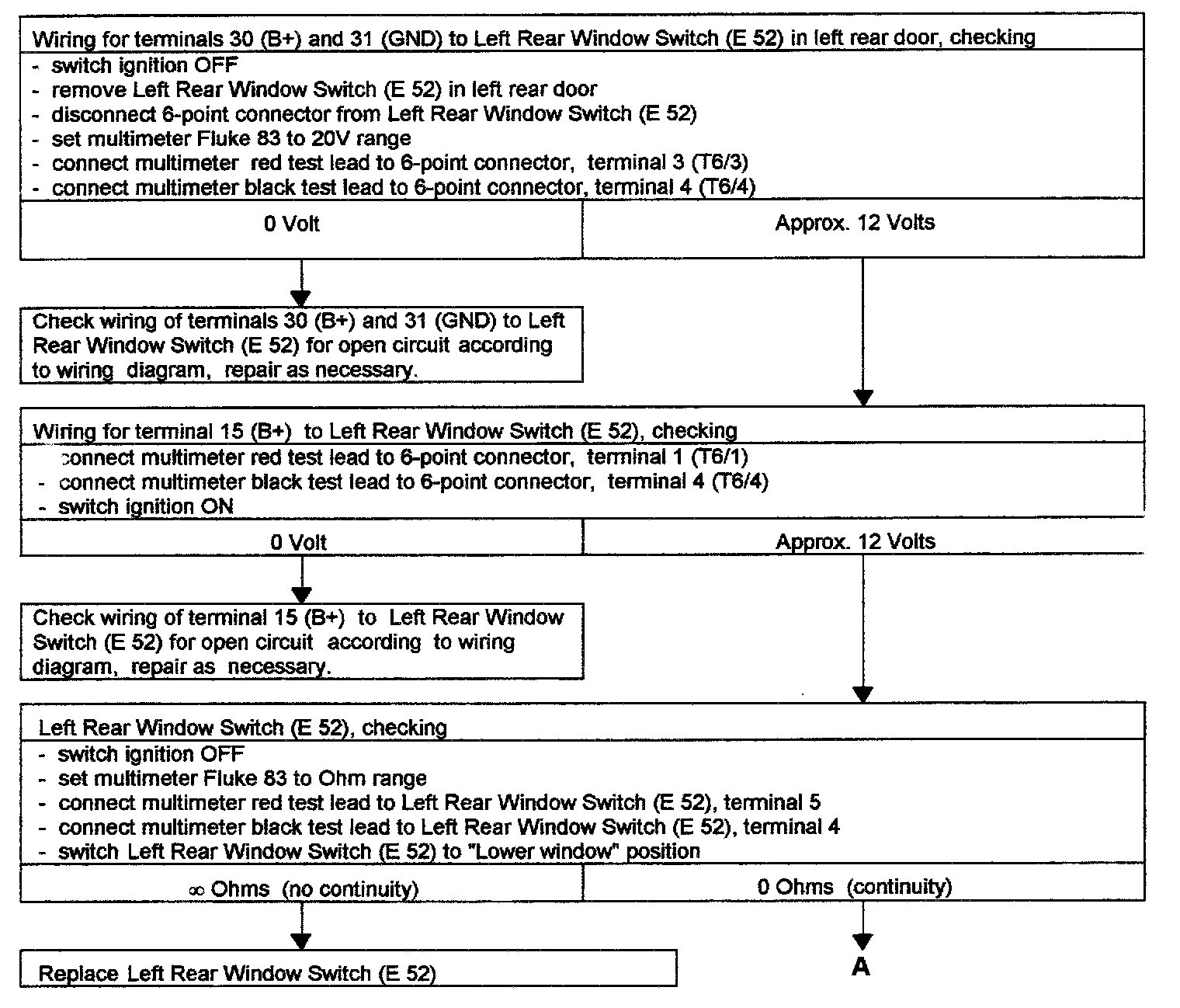

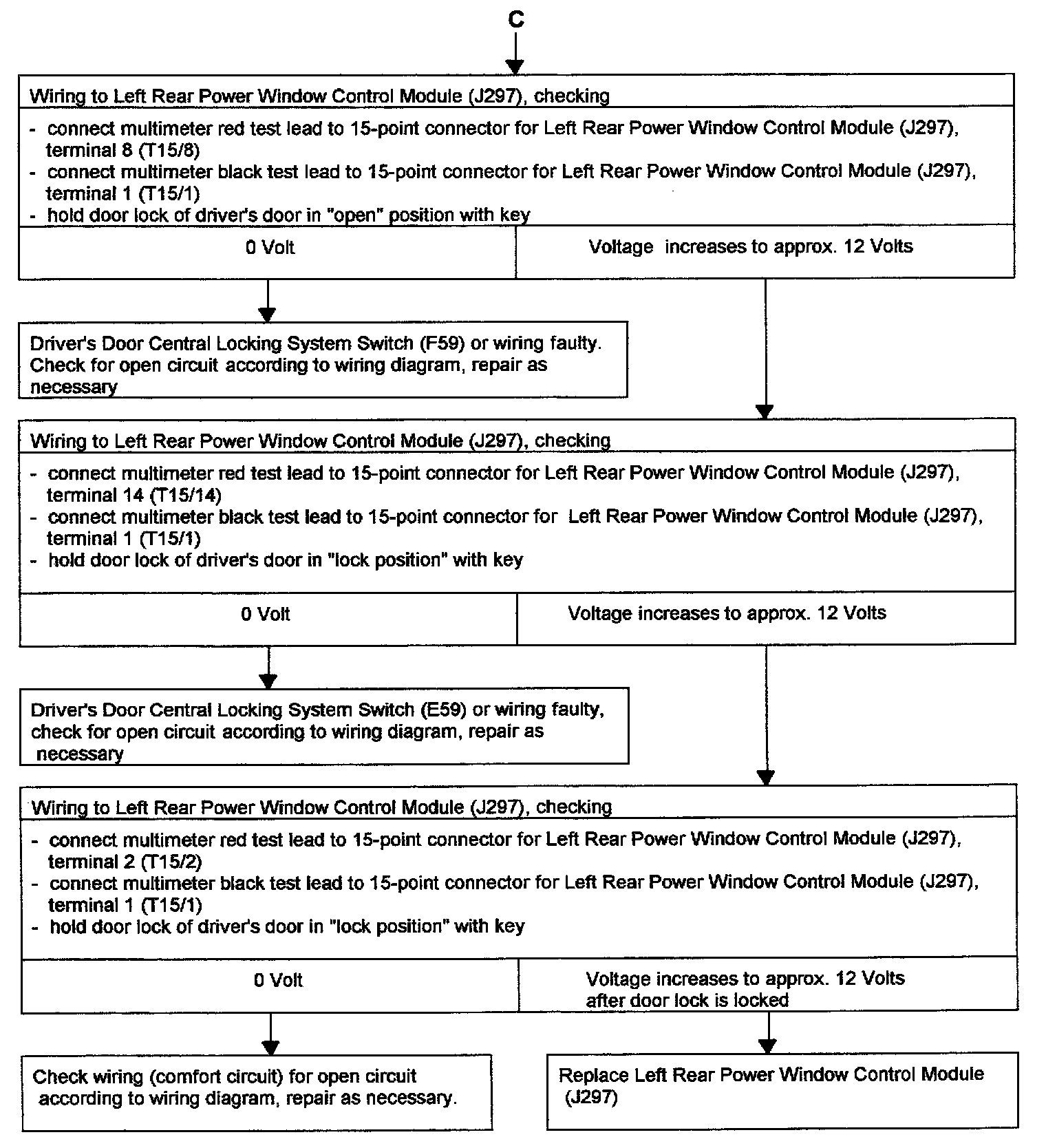

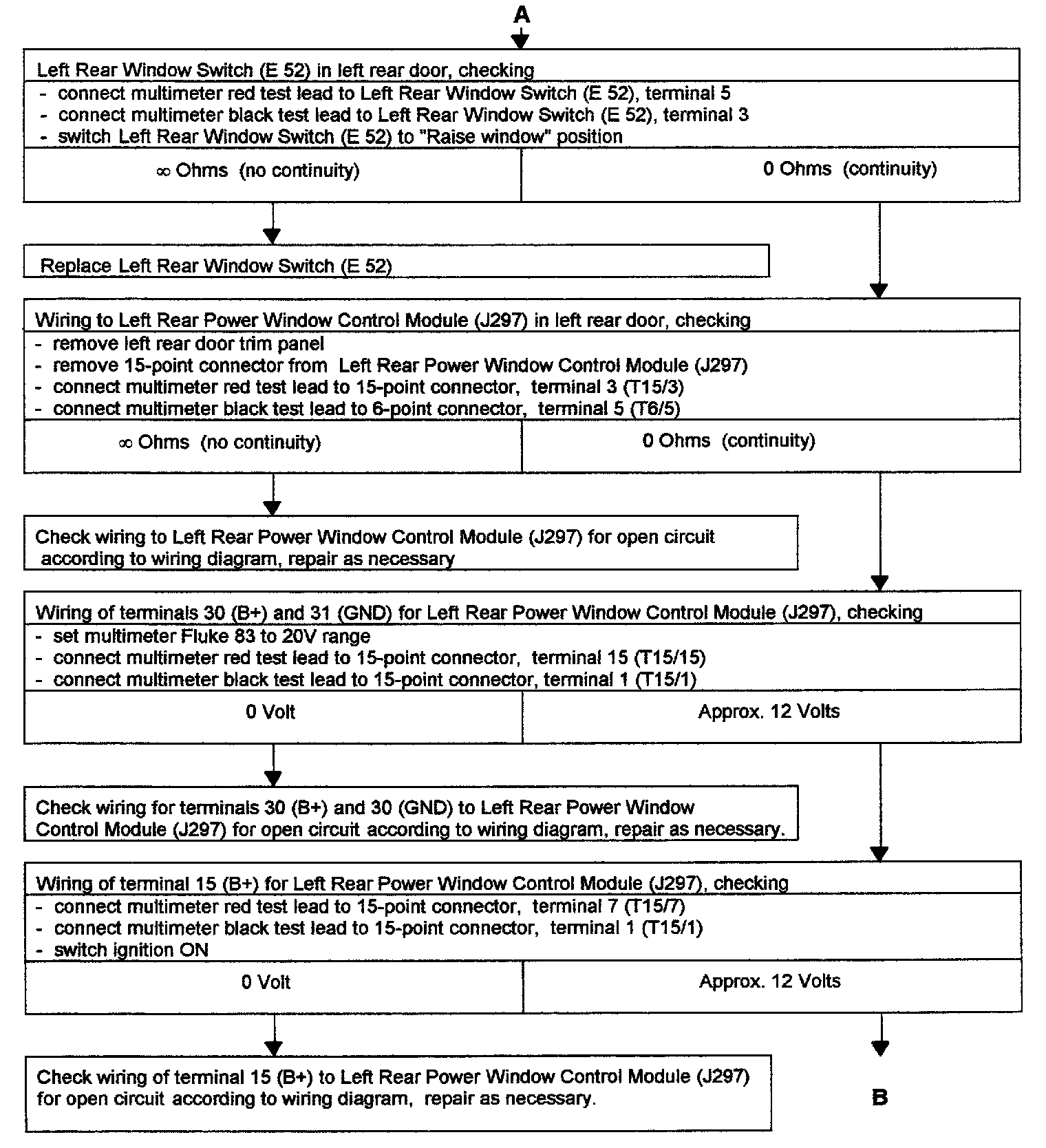

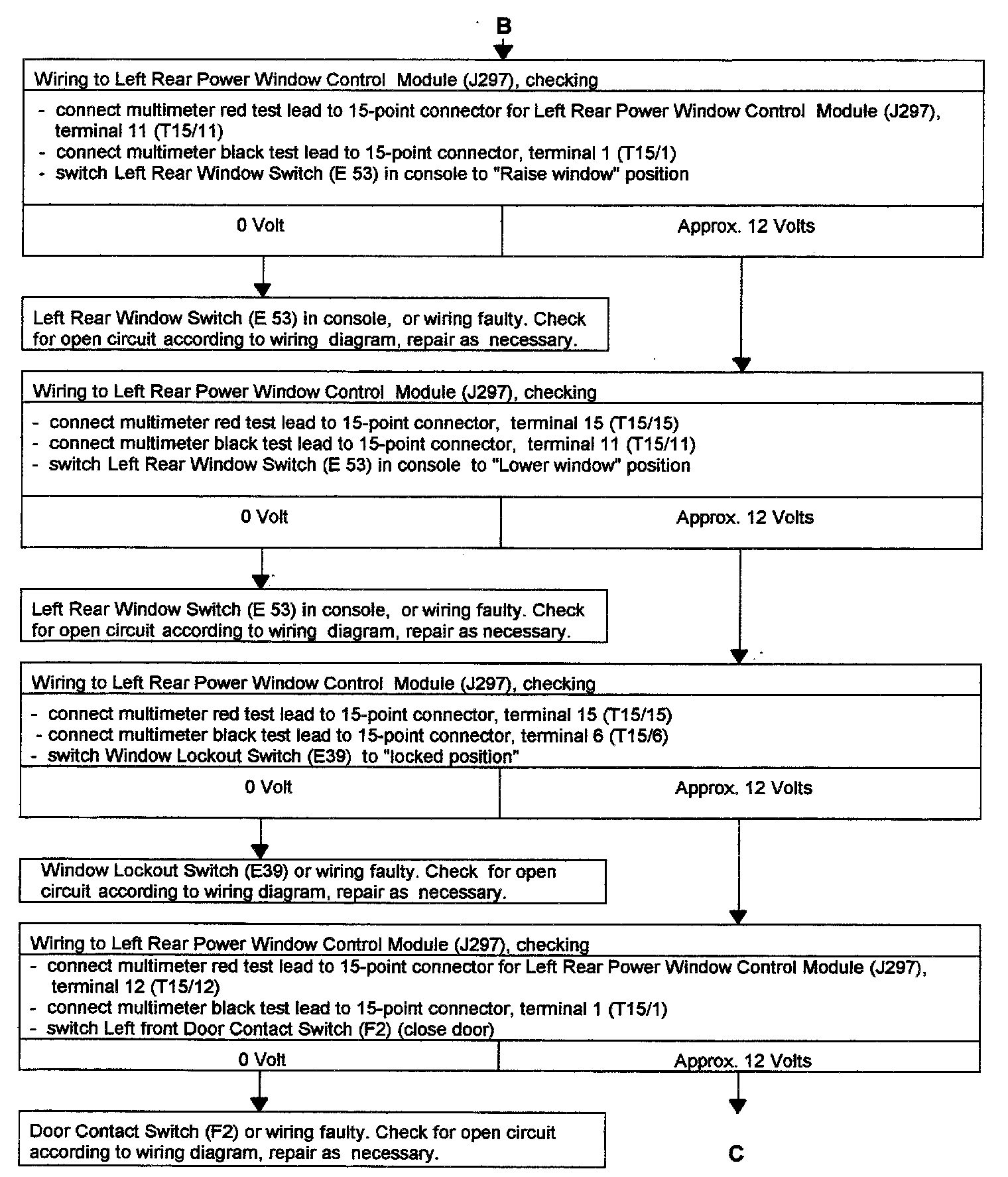

Power Window, Left Rear, Checking



Tools required:
- Digital multimeter Fluke 83 (US 1119)

CAUTION: DO NOT damage, enlarge or bend connector terminals or cavities by forcing probes into them when performing electrical checks. Use Connector Test Kit VW 1594 to make the necessary electrical connections.

- Connector Test Kit VW 1594
- Applicable wiring diagram

















Test conditions:
- Battery voltage OK
- Circuit breaker S 43 OK
- Fuse S 14 (10A) on fuse/relay panel OK
- Power window mechanically OK
- All other power windows OK
- 21-point connector in B-pillar properly connected


NOTE: Use Connector Test Kit VW 1594 to make all necessary electrical connections.
