Radiator Support: Service and Repair

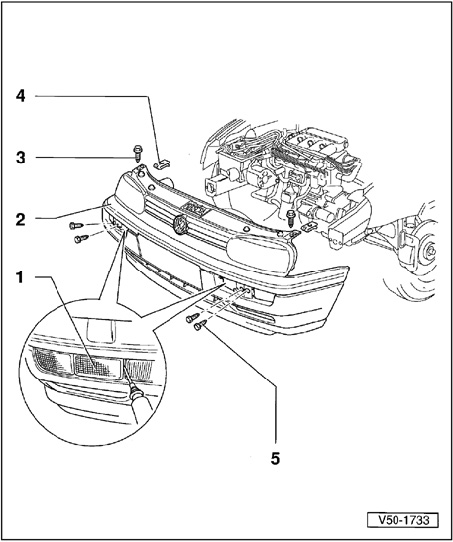

Lock Carrier, Removing And Installing -
Disconnect harness connectors and detach
hood Bowden cable.
-
Loosen air ducts in area of wheel housing liner.
1
-
Towing eye cover
-
Swivel out cover cap/towing eye toward front using a suitable tool and pull out of holder/turn signal.
2
-
Lock carrier with attachments
-
Must be installed free of tension
3
-
Bolt
-
5 Nm 4
-
Speed nut
5
-
Bolt
-
23 Nm
