Splash Guard: Service and Repair

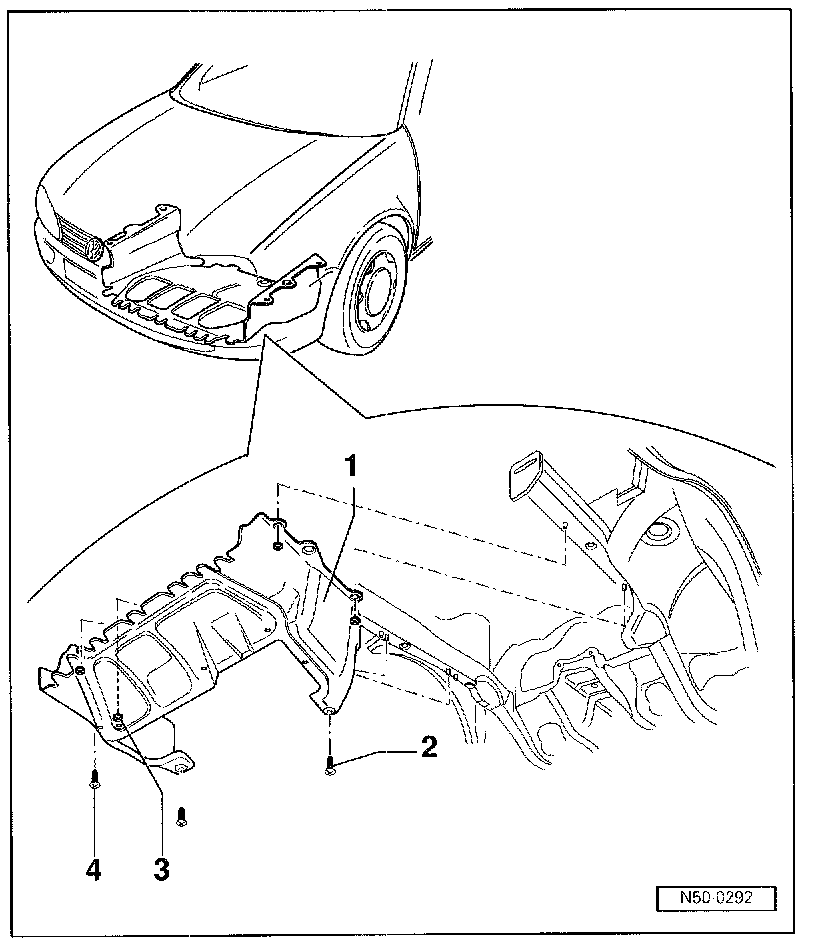

Sound insulation, assembly overview (vehicles with gas engine) 1- Sound insulation Bolted and inserted into lock carrier in forward area
2- Bolt Qty 2
3- Clamping washer Qty. 4
4- Bolt Qty. 4

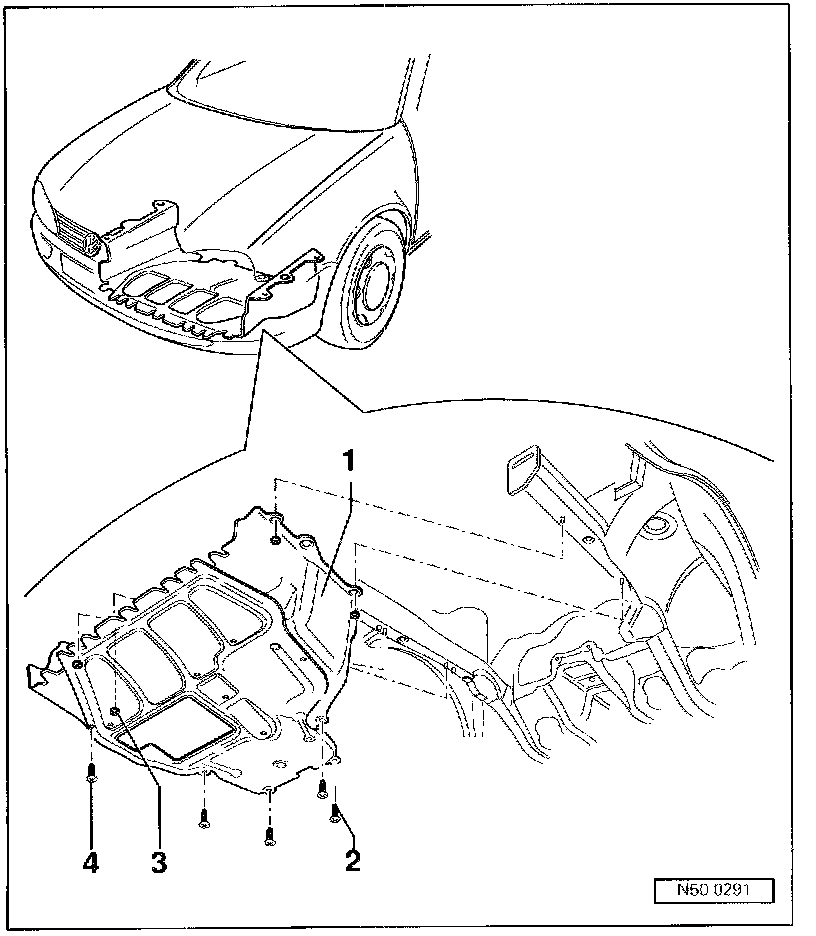

Sound insulation, assembly overview (vehicles with Diesel engine) 1- Sound insulation Bolted and inserted into lock carrier in forward area
2- Bolt Qty. 2
3- Clamping washer Qty. 4
4- Bolt Qty. 4
