Heater Control Valve Cable

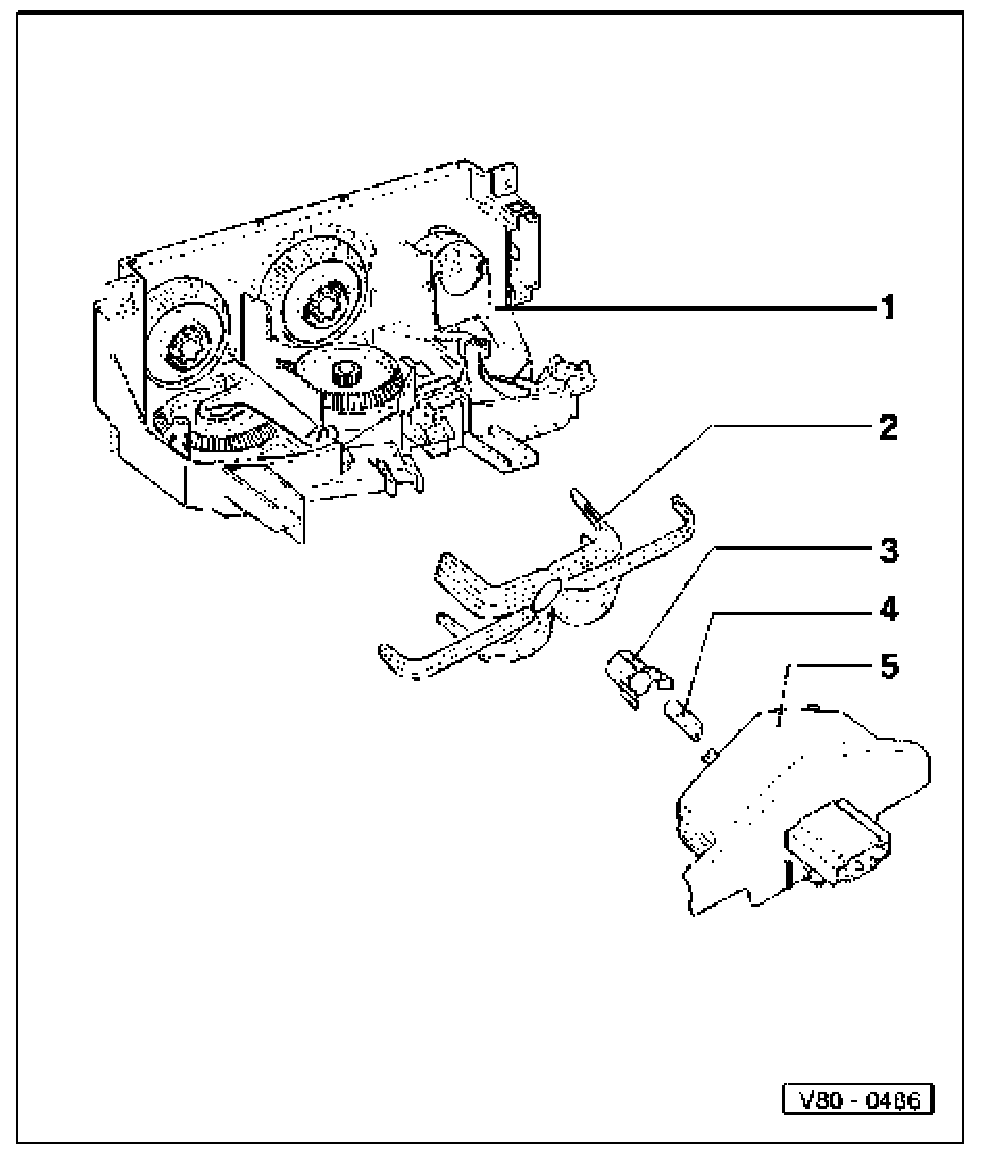

Fresh air/heating controls, assemblyCAUTION! Before working on the electrical system:
- Determine the correct coding for the anti-theft radio.
- Disconnect the battery Ground (GND) strap.
1 - Fresh air/heating controls
- Includes fresh air blower switch - E9-
2 - Light transmitting tube
3 - Color filter
4 - Fresh air control lever light -L16-
5 - Cover
