Headlamp
From May 96
CAUTION: Before starting work on the electrical system, obtain radio security code, turn off ignition and disconnect battery Ground (GND) strap.
NOTE: After any work which could affect the headlight setting, the headlight must be adjusted.

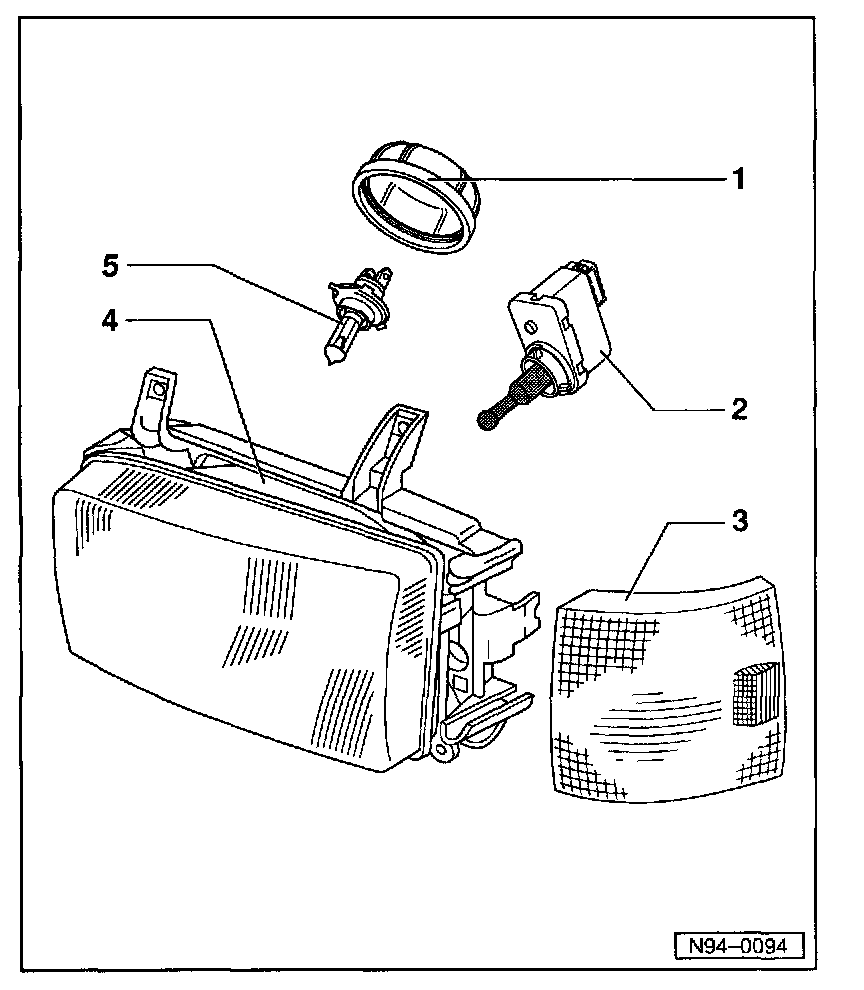

1 - Cap
2 - Positioning motor (if equipped)
3 - Left-hand turn signal housing
- Removing and installing See ' Turn Signals, Turn Signal Lamp.' Service and Repair
- Removing and installing turn signal bulb
See 'Turn Signals, Turn signal Lamp.' Service and Repair
4 - Headlight housing
- Removing and installing
See 'Service and Repair.' Service and Repair
Adjusting headlight
See 'Adjustments.' Adjustments
5 - Low and high beam twin filament bulb
- Halogen bulb H4
12 V, 60 W/55 W
- Removing and installing
See 'Headlamp Bulb.' Service and Repair
