Air Conditioning Switch: Service and Repair
A/C Switch -E35- And -E159-, Removing:
-
Remove Heating & A/C controls.
Service and Repair -
Disconnect electrical connector.
-

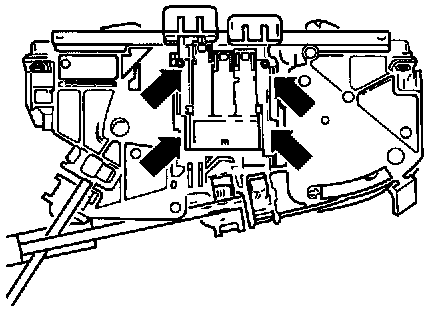

Press switch at the four locating points -arrows- against the controls and in direction of buttons simultaneously.
