Housing Assembly HVAC: Service and Repair
CAUTION: Before working on electrical system obtain radio security code and disconnect battery Ground (GND) strap
NOTE: Heater unit, removing See 'Heater Core Case.' Service and Repair

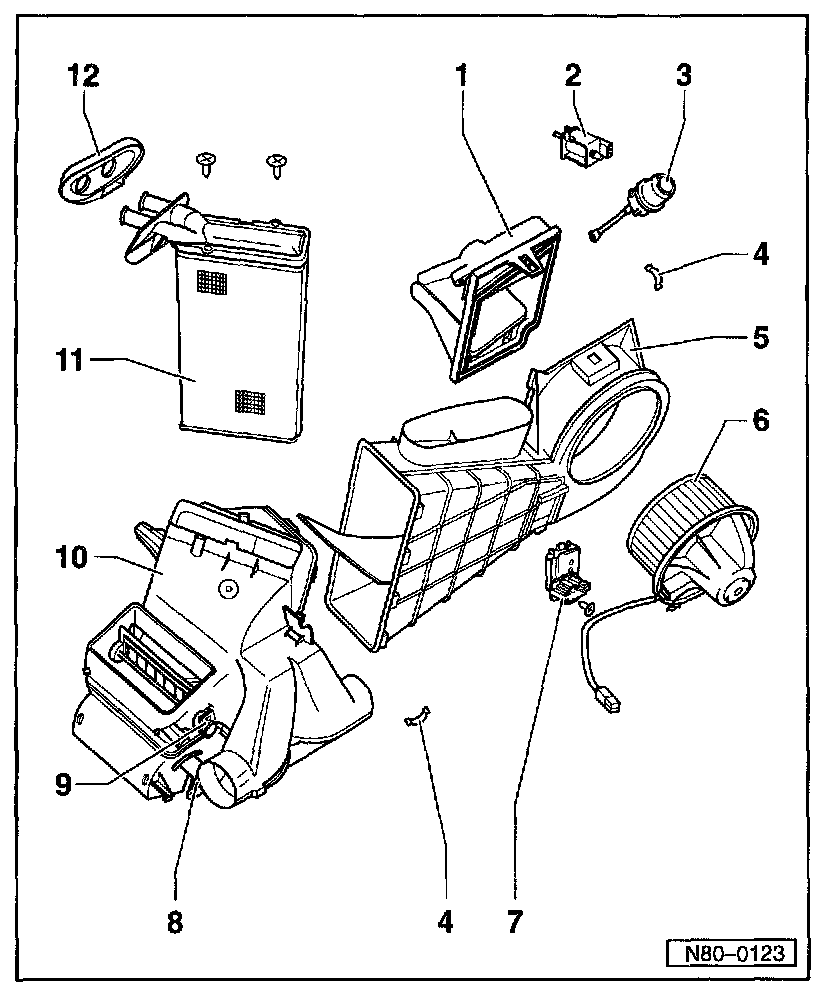

1 - Air intake duct
- With recirculating air flap
2 - Fresh air/recirculating flap two-way valve -N63-
3 - Fresh air/recirculating flap vacuum unit
- Vacuum hose, layout
See 'Diagrams.' Vacuum and Vapor Hose Diagrams
4 - Clip
5 - Air duct
6 - Fresh air blower -V2-
7 - Fresh air blower series resistance with fuse -N24-
8 - Footwell flap lever
- Removing:
- Disconnect lever with a screwdriver
9 - Defroster flap lever
- Removing:
- Disconnect lever with a screwdriver.
10 - Air distribution housing
11 - Heater core
- Install seals around entire circumference of heater core
12 - Gasket
