Tightening Specifications

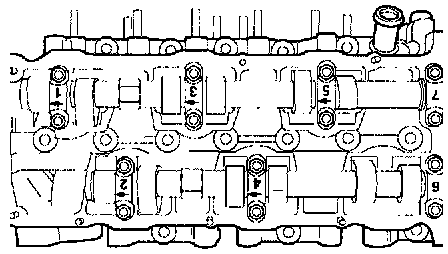

Tightening Specifications Camshaft For Cylinders 1, 3 And 5 -
Install and tighten bearing caps 3 and 5 alternately and diagonally to:
20 Nm (15 ft lb) -
Install bearing caps 1 and 7 and tighten to:
20 Nm (15 ft lb) Camshaft For Cylinders 2, 4 And 6 -
Install and tighten bearing caps 2 and 6 alternately and diagonally to:
20 Nm (15 ft lb) -
Install bearing cap 4 and tighten to:
20 Nm (15 ft lb)
