Dimensional
Dimensional Specifications -

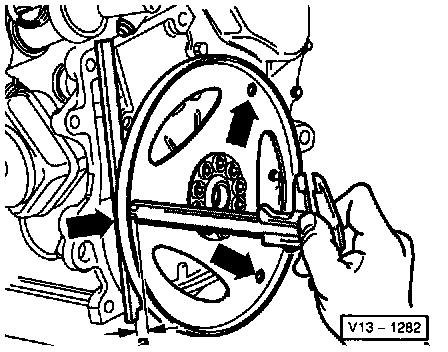

Check dimension -a- through the three torque converter mounting holes (3 places) using a straight edge and depth gauge Calculate average.
-
Compare average with specification (measured distance + thickness of straight edge) Specification:
15.7 to 16.5 mm
