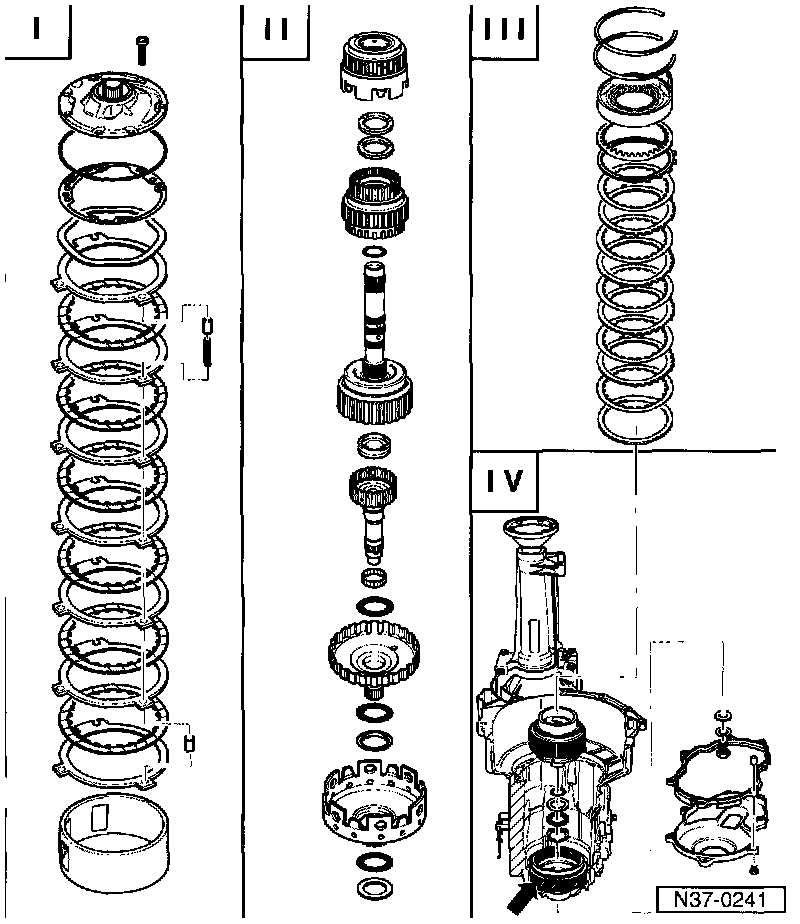

Unit (Planetary Gearbox) Disassembly/Assembly: Overview

- Remove and install ATF cooler and ATF filler tube





1 Disassembling refer to "Disassemble Unit"
I Removing and installing ATF pump to support tube refer to "ATF Pump To Support Tube."
II Removing and installing reverse clutch -K2- to small sun gear refer to "Reverse Clutch -K2- To Small Sun Gear."
III Removing and installing free wheel and reverse gear brake -B1- refer to "Free Wheel And Reverse Gear Brake -B1-."

NOTE: To remove and install the free wheel, first remove the valve body together with plugs, refer to Replacement. Service and Repair

IV Removing and installing planet carrier refer to "Planet Carrier."

NOTE: It is not necessary to remove the input gear -arrow-, Input gear, refer to Replacement. Service and Repair

- Assembling refer to "Assemble Unit"
- Overview of all planetary gearbox adjustments. Adjustments

- Removing and installing valve body refer to Replacement. Service and Repair
