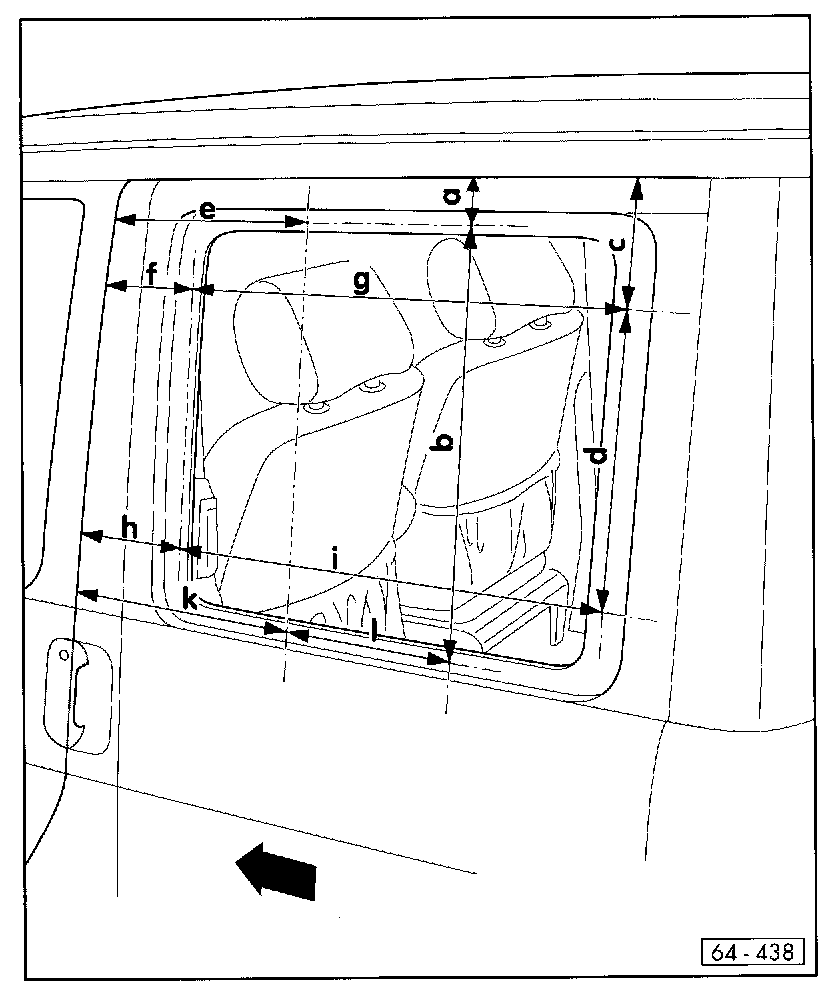

Double Cab Side Panel, Left
NOTE: Front edge of B-pillar and roof edge are used as reference points. Arrow points in driving direction.
Dimensions: a
=
55 mm (2.16 in.) b
=
510 mm (20.07 in.) c
=
143 mm (5.62 in.) d
=
340 mm (13.38 in.) e
=
310 mm (12.20 in.) f
=
110 mm (4.33 in.) g
=
615 mm (24.21 in.) h
=
122 mm (4.80 in.) i
=
620 mm (24.40 in.) k
=
335 mm (13.81 in.) l
=
200 mm (7.87 in.)
