Side panel, Left

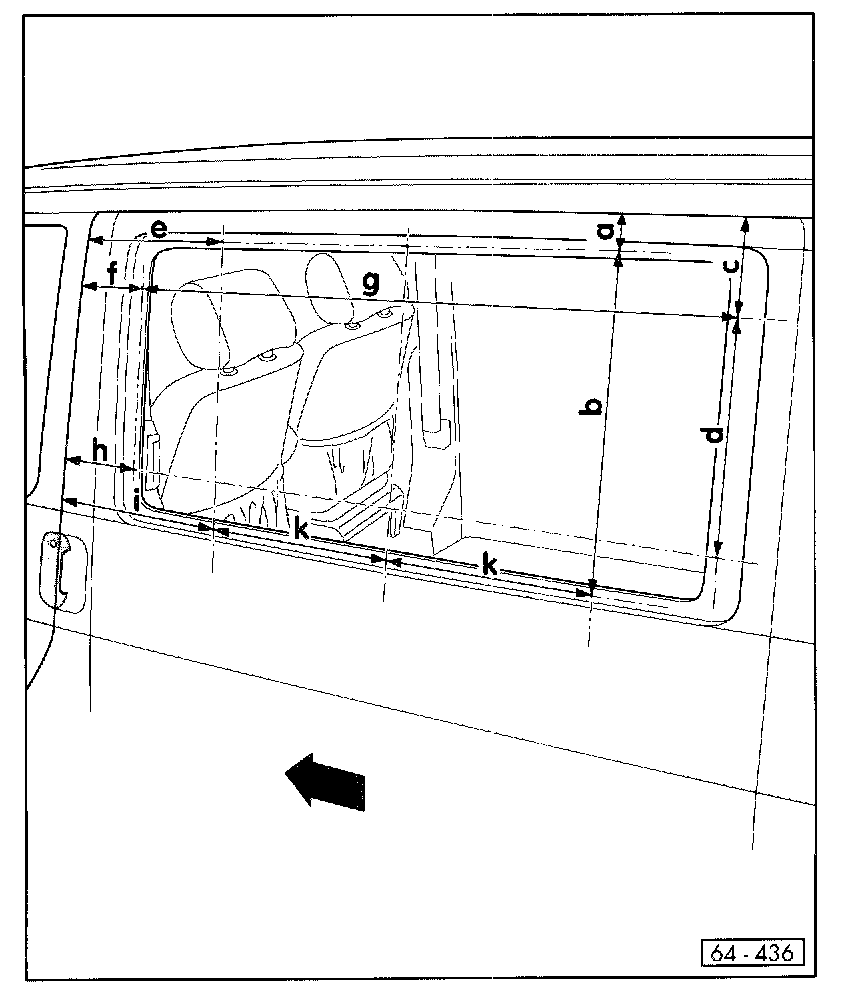

NOTE: Front edge of B-pillar and roof edge are used as reference points. Arrow points in driving direction.
Dimensions: a
=
52 mm (2.04 in.) b
=
510 mm (20.07 in.) c
=
135 mm (5.31 in.) d
=
340 mm (13.38 in.) e
=
310 mm (12.20 in.) f
=
107 mm (4.21 in.) g
=
1118 mm (44.01 in.) h
=
122 mm (4.80 in.) i
=
335 mm (13.18 in.) j
=
350 mm (13.77 in.)
