Diagnostic Trouble Code (DTC) Memory Checking

Diagnostic Trouble Code (DTC) Memory, Checking

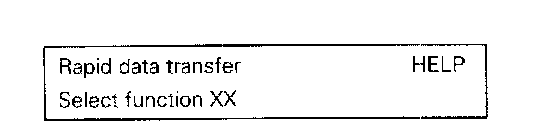

Indicated on display; (Function selection)
- Press buttons -0- and -2-; -02- to select "Check DTC memory" function.

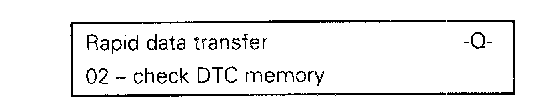

Indicated on display
- Confirm entry with -Q- button.

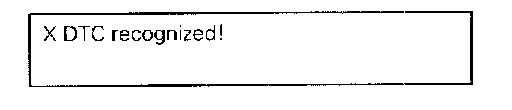

Number of DTC's stored or "No DTC's recognized" will be displayed.





- Press -> button.
Stored DTC's are displayed and printed out one after another.
- With DTC information print-out eliminate DTCs according to DTC table.

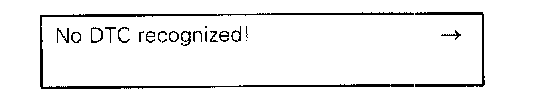

As with "No DTC recognized", program returns to start position after pressing -> button:

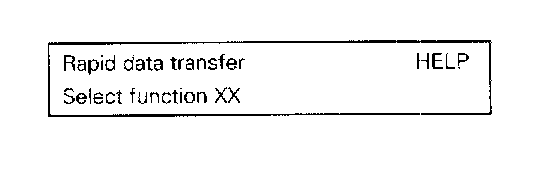

Indicated on display; (Function selection)
- End output (Function -06-).
- Switch off ignition and disconnect DLC.

Work sequence if a DTC has been detected:
1. Rectify DTC according to DTC table
2. Check DTC memory (Function -02-)
3. Erase DTC memory (Function -05-)
4. End output (Function -06-)
5. Test drive vehicle
6. Check DTC memory again
