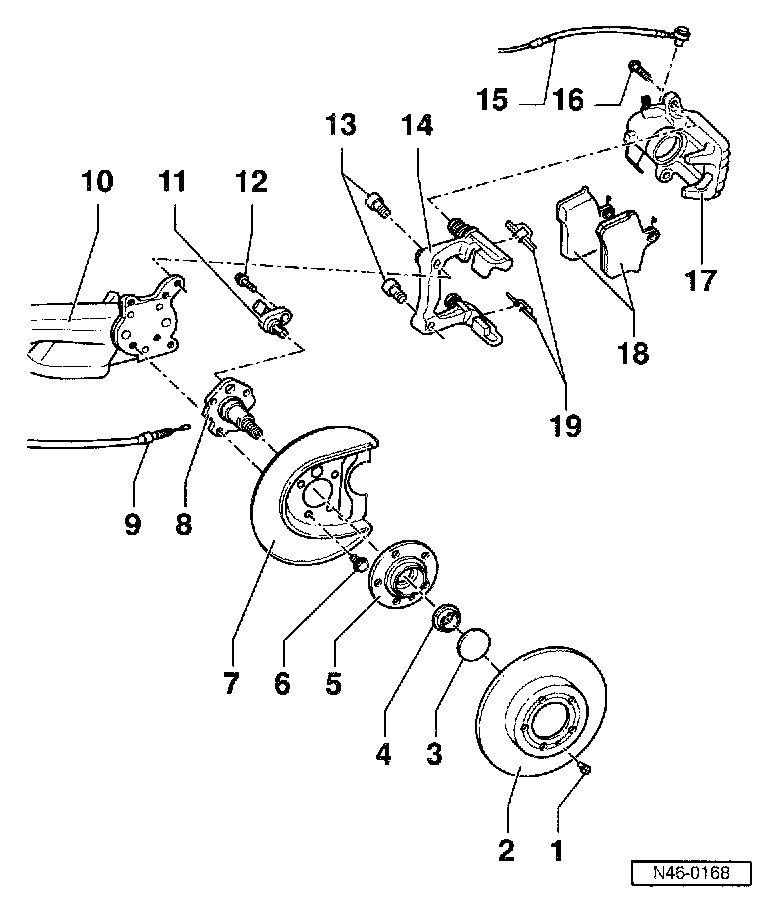

Rear Brakes

1. Screw
2. Brake disc
3. Cap
4. Self-locking 12-point nut
5. Wheel hub with wheel bearing and ABS wheel speed sensor rotor
6. Hex bolt
7. Splash shield
8. Stub axle
9. Parking brake cable
10. Axle beam
11. ABS wheel speed sensor
12. Hex socket head bolt
13. Hex socket head bolt
14. Brake carrier with guide pins and protective cap
15. Brake hose/line
16. Self-locking hex bolt
17. Brake caliper
18. Brake pads
19. Brake pad retaining springs
