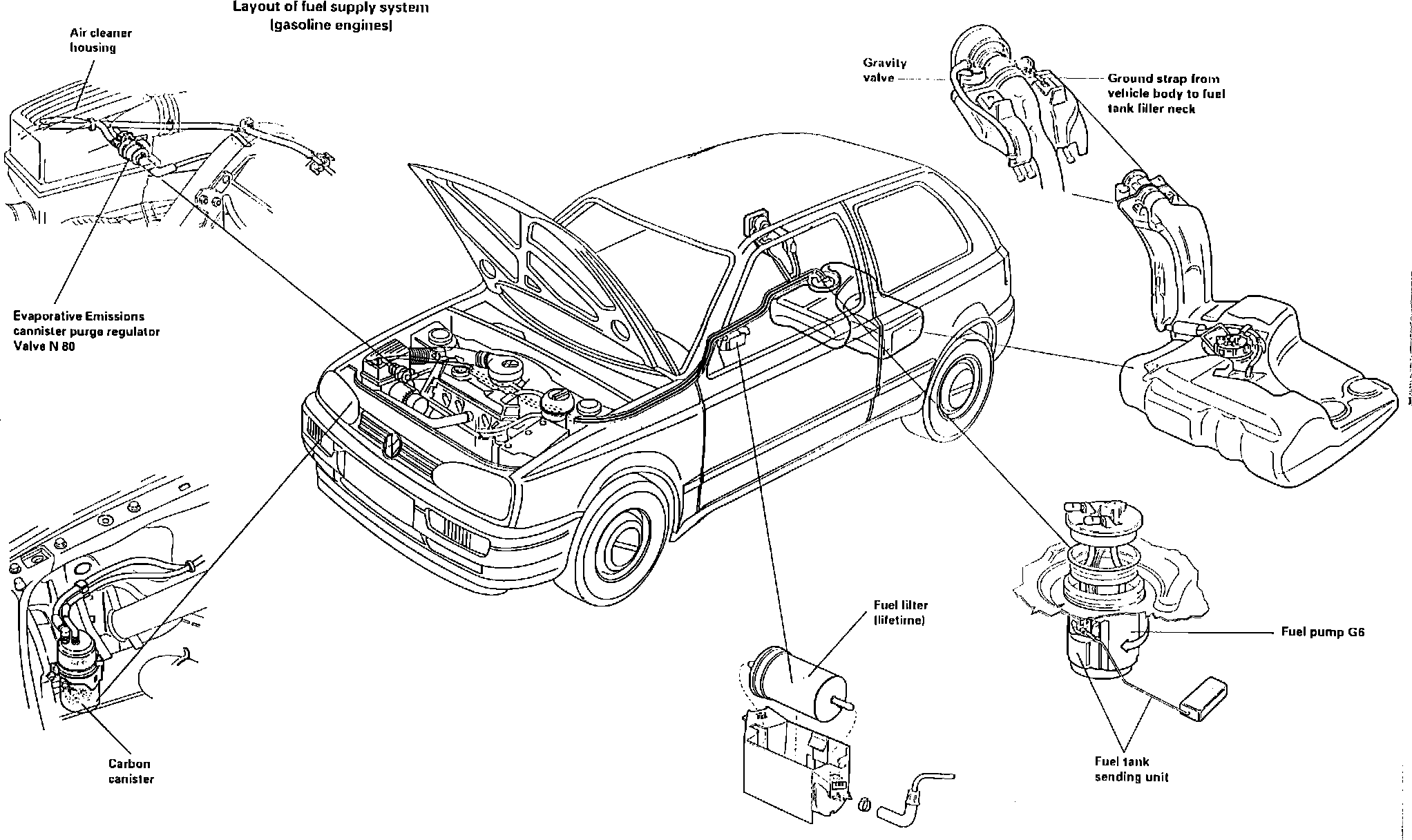

Fuel Filter: Locations

Fuel Supply System

Fuel Supply Layout:

1. Cap
2. Retaining ring
3. Rubber cup
4. O-ring
5. Gravity valve
6. Vent pipe
7. Ground (GND) connection
8. Vent valve
9. Return line
10. Union nut
11. Hose guide
12. Flange
13. Supply hose
14. Sealing ring
15. Return hose
16. Fuel Pump (FP) -G6-
17. Fuel Level Sensor
18. Strainer
19. Securing strap
20. Bracket
21. 25 Nm (18 ft lb)
22. Fuel tank
23. Supply pipe
24. Fuel filter
25. Bracket
26. Retaining clip
27. 20 Nm (15 ft lb)
28. Bracket
29. Rubber buffer
30. Spring clip
31. Spacer
32. 10 Nm (7 ft lb)
