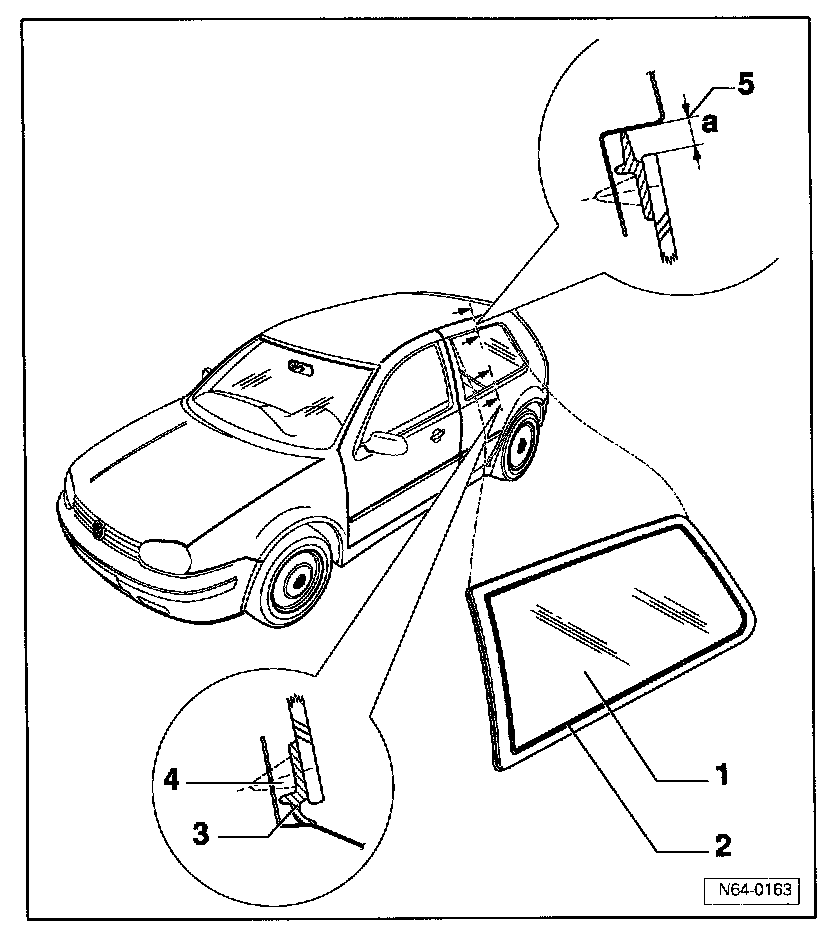

Side Window, Assembly Overview
1 - Side window 2 - Ceramic layer
3 - Sealing lip (component part of pre-coating)
4 - PUR adhesive sealant -
Cross section of bead: Width =
7 mm; Height
11 mm (including pre-coating, residual material on window glass and window flange)
5 - Dimension a = 5 to 6 mm (0.20 to 0.24 in.) -
The gap must be adhered to, because the dimension is required to secure the root load system mountings
