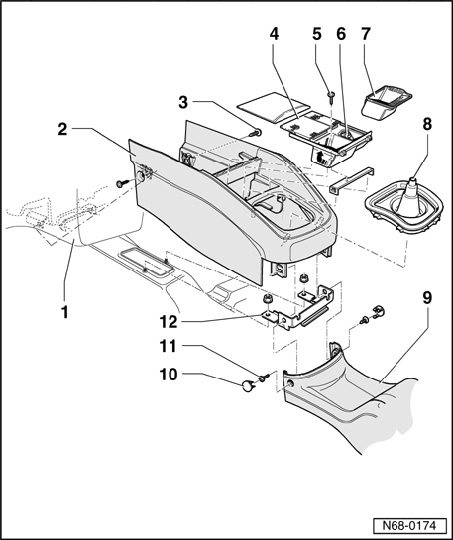

Center Console, Assembly Overview

Center Console, Assembly Overview

1 - Steering column trim
2 - Center console
3 - Bolts
- Qty. 2

4 - Ashtray
5 - Bolt
6 - Cigarette lighter
7 - Ashtray insert
8 - Boot
9 - Center console extension
10 - Caps
- Qty. 2

11 - Bolts
- Qty. 2

12 - Mounting bracket
