Headlamp

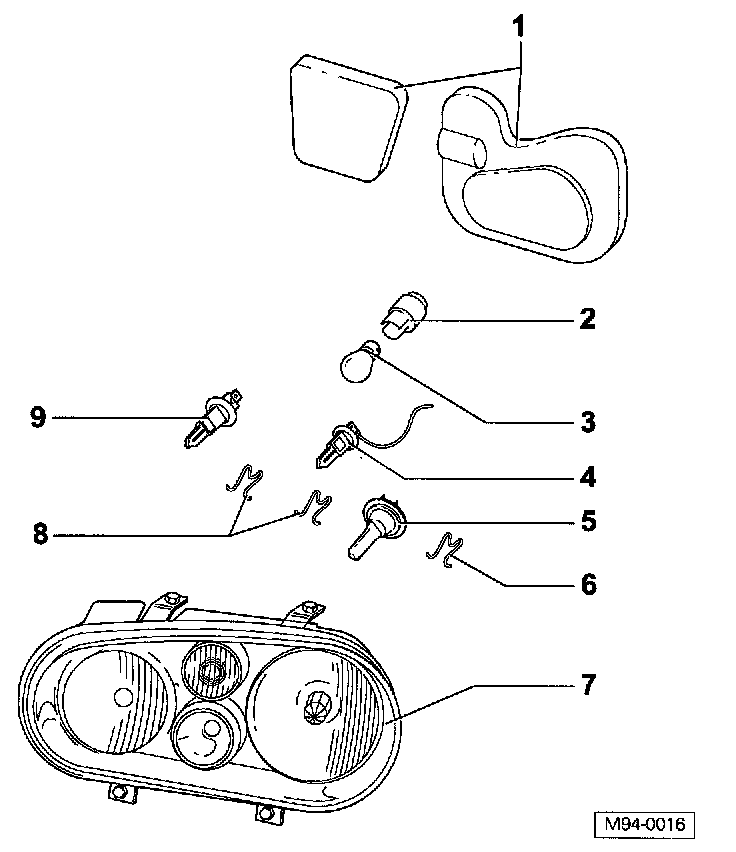

Headlights (Golf), assembly overview

1- Sealing cap

2- Turn Signal bulb holder

3- Turn signal bulb
Bulb: 12 V, 21 W

4- Fog light bulb
Bulb: H3, 12 V, 55W

5- Low beam bulb
Bulb: H7, 12 V, 55 W

6- Spring clip

7- Headlight insert
Adjusting headlight Adjustments
Removing and installing Service and Repair

8- Spring clips

9- High beam bulb
Bulb: H1, 12 V, 55W
