Assembly Vehicles With Air Conditioning

NOTE: This applies to vehicles with Air Conditioning or Digimatic Climate Control. For vehicles without A/C, see Heating and Ventilation Unit.

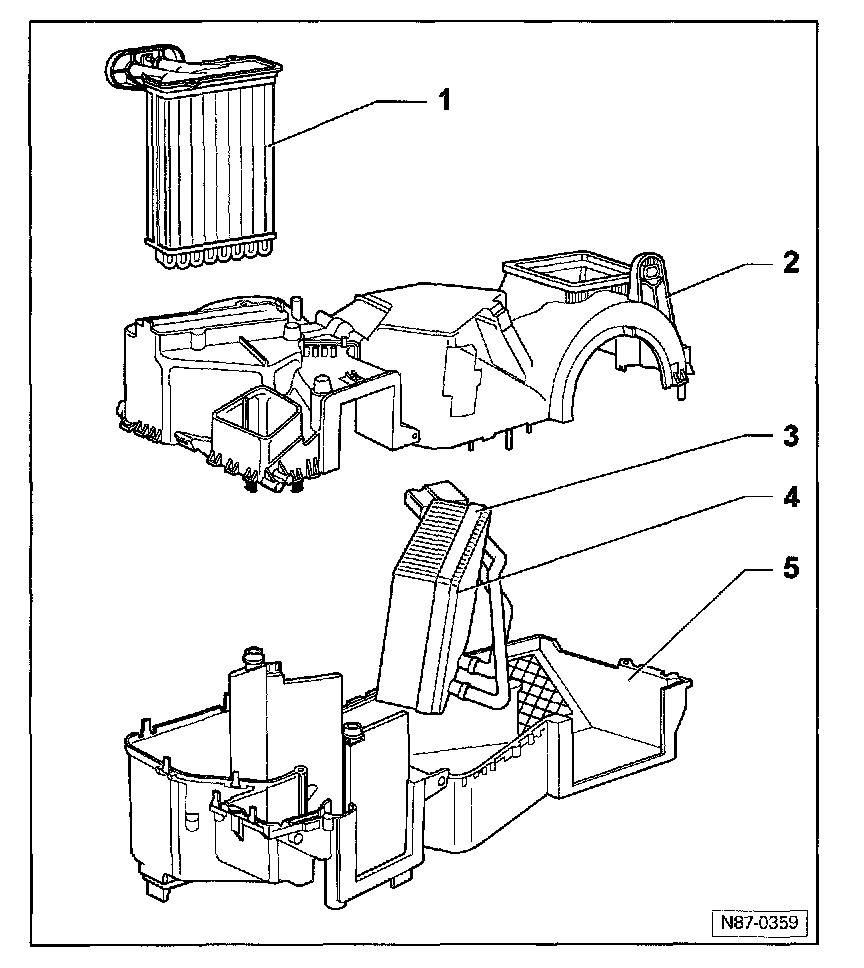

Assembly
1 - Heater core
- Always replace coolant after removal/replacement
- Access release tabs for heater core after partially removing heating and A/C unit. Removal Vehicles With Air Conditioning
2 - Housing, upper part
- With fresh air and recirculating air flaps
3 - Evaporator seal
4 - Evaporator
5 - Housing, lower part


Evaporator seal, installing





- Glue foam seal -B- around circumference of evaporator -A-.
- To allow evaporator water to drain, do not attach foam seal on evaporator in area -C-.


Evaporator inlet/outlet seal, installing





- Insert seal -A- for refrigerant lines -C- in between housing halves -B-.
