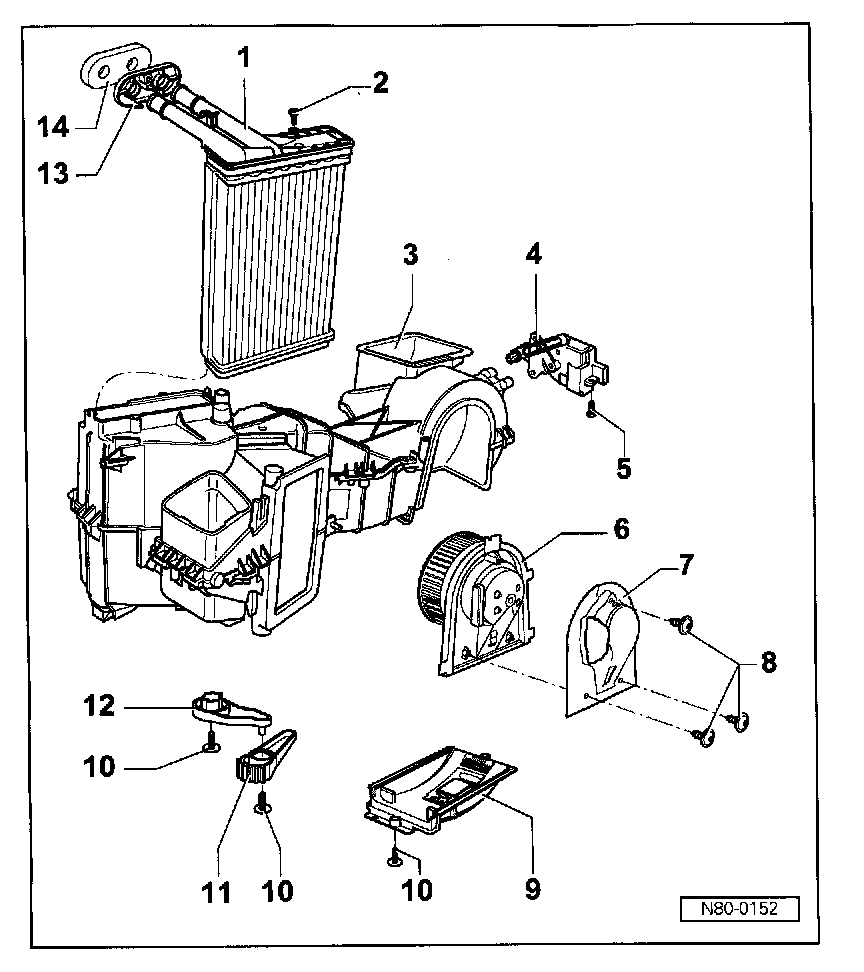

Assembly Vehicles Without Air Conditioning

NOTE: This applies to vehicles without Air Conditioning or Digimatic Climate Control. For these vehicles, please see Heating and A/C Unit. Procedures





1 - Heater core
- Always replace coolant after removal/replacement
- Remove instrument panel. Service and Repair
- Loosen instrument panel cross member. Service and Repair
- Carefully pinch off both coolant hoses to heater core and disconnect hoses.
- Seal off heater core to prevent coolant from running out

CAUTION: The cooling system is pressurized when the engine is warm. Wear gloves and other protection and carefully release system pressure if necessary, before performing repairs.

- Partially remove heating and ventilation unit.
- Press retainer clips and remove heater core.
2 - Self tapping screw
- Use if retainer clips break
3 - Air distribution housing
4 - Servo motor for fresh/recirculating air door -V154-
5 - Self tapping screw
6 - Fresh air blower -V2-
7 - Cover
8 - Self tapping screw
9 - Series resistor -N24-
10 - Sheet metal screw
11 - Central flap lever
12 - Temperature flap lever
13 - Base plate
14 - Heater core/bulkhead seal


Heater core/bulkhead seal, installation position





The seal between the heater core and the bulkhead has a positioning mark.
- Install seal -1- so that the notches on the seal and the base plate -2- align -3-.
