Exhaust Gas Recirculation: Diagrams

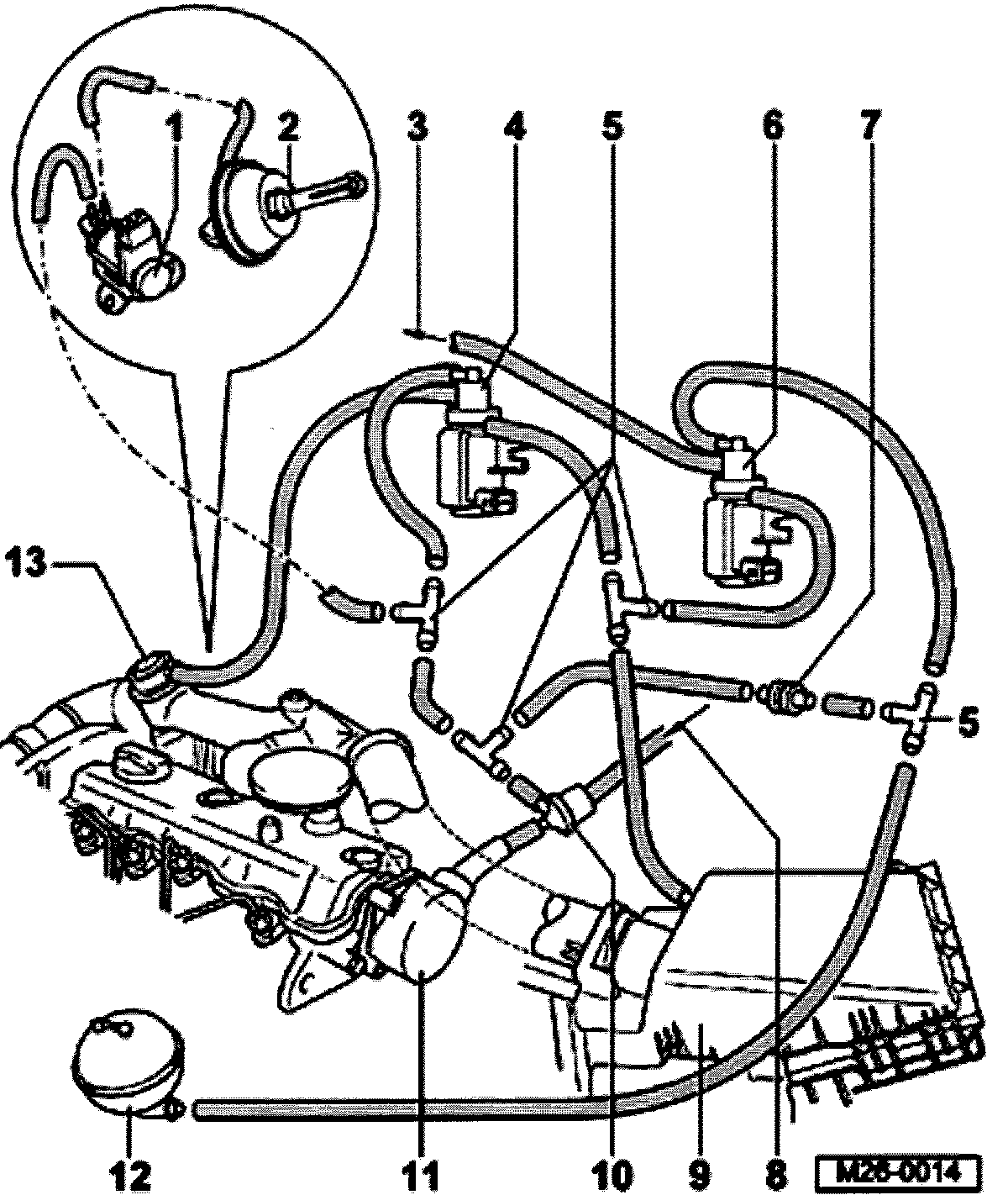

Vacuum hose connections, diagram





1. Changeover Valve for Intake Manifold Flap -N239
2. Vacuum actuator
^ Do not bend control rod
3. Vacuum hose
^ To vacuum unit for boost regulation on turbocharger
4. EGR Vacuum Regulator Solenoid Valve - N18
5. T connector
6. Wastegate Bypass Regulator Valve -N75
7. Check valve
^ Observe installation position: White connection points toward T connector wastegate regulator valve and vacuum reservoir.
8. from brake booster
9. Air cleaner
10. Check valve
^ Observe installation position
11. Vacuum pump
^ for brake booster
12. Vacuum reservoir
^ Mounted with bracket to oil pan
13. EGR Valve
