Rear Window, Assembly Overview

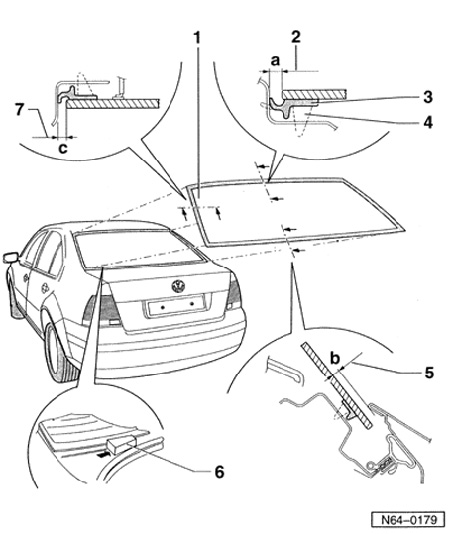

Rear Window (Jetta), Assembly Overview
1 - Rear window
2 - Gap dimension - a - = 3 mm
3 - Sealing lip (component part of pre-coating)
4 - PUR adhesive sealant
- Bead cross section:
- Width = 7 mm
- Height = 11 mm (including pre-coating, residual material on window glass and window flange)
- Minimum curing time
5 - Gap dimension - b - = 6.5 mm
- Check gap dimension using Adjustment gauge 3371
6 - Window adjuster
- 443,845,631 A
7 - Gap dimension - c - = 3 mm
