Brake Pedal Assy

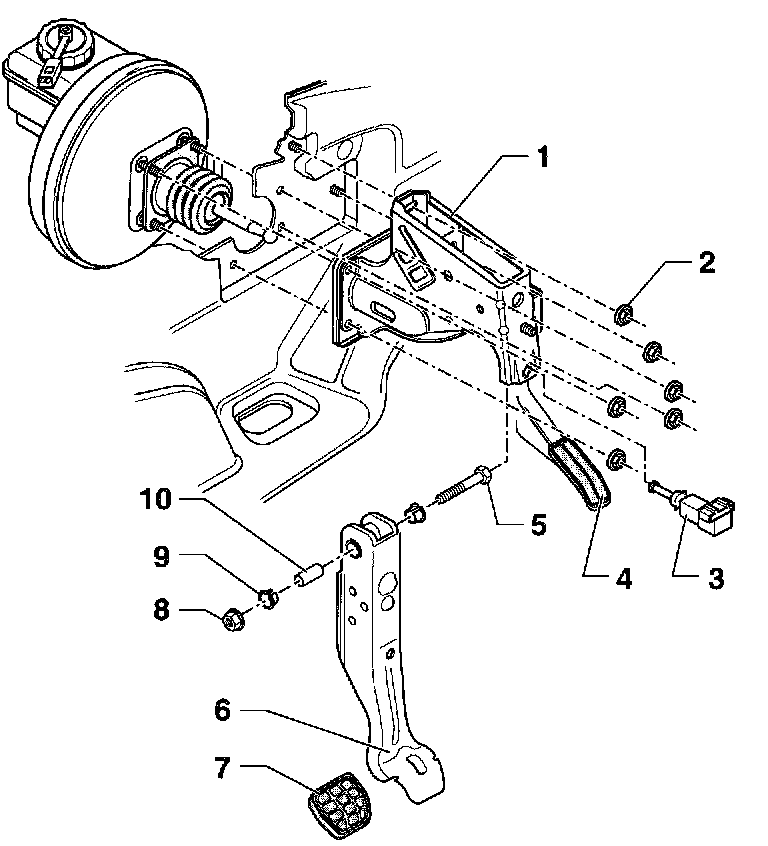

Brake Pedal, Assembly Overview

1. Mounting bracket
2. Self-locking nut
3. Brake light switch
4. Accelerator pedal
5. Bolt
6. Brake pedal
7. Pad
8. Self-locking nut
9. Bushing
10. Pivot pin
