Cylinder Head Assembly

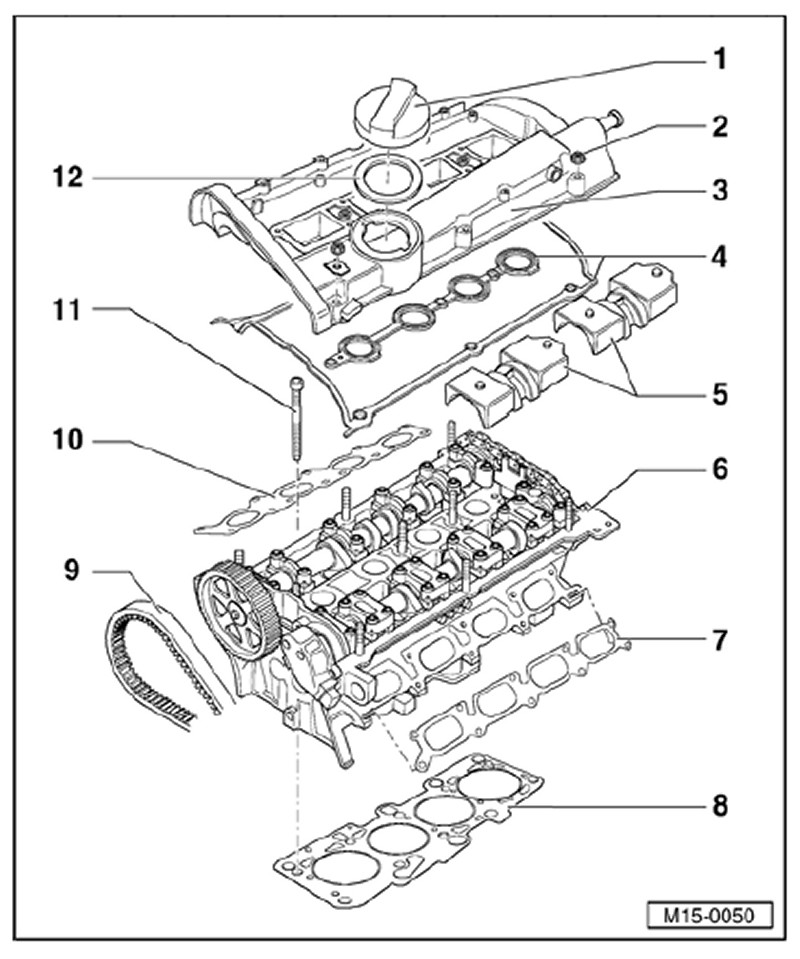

Cylinder Head, Assembly Overview 1.
Cap
2.
10 Nm 3.
Cylinder head cover
4.
Cylinder head cover gasket
5.
Oil deflector
6.
Cylinder head
7.
Intake manifold gasket
8.
Cylinder head gasket 9.
Toothed Belt
10.
Exhaust manifold gasket
11.
Cylinder head bolt
12.
Gasket
