Angle Sensor -2- For Throttle Drive
G186, G187, G188:

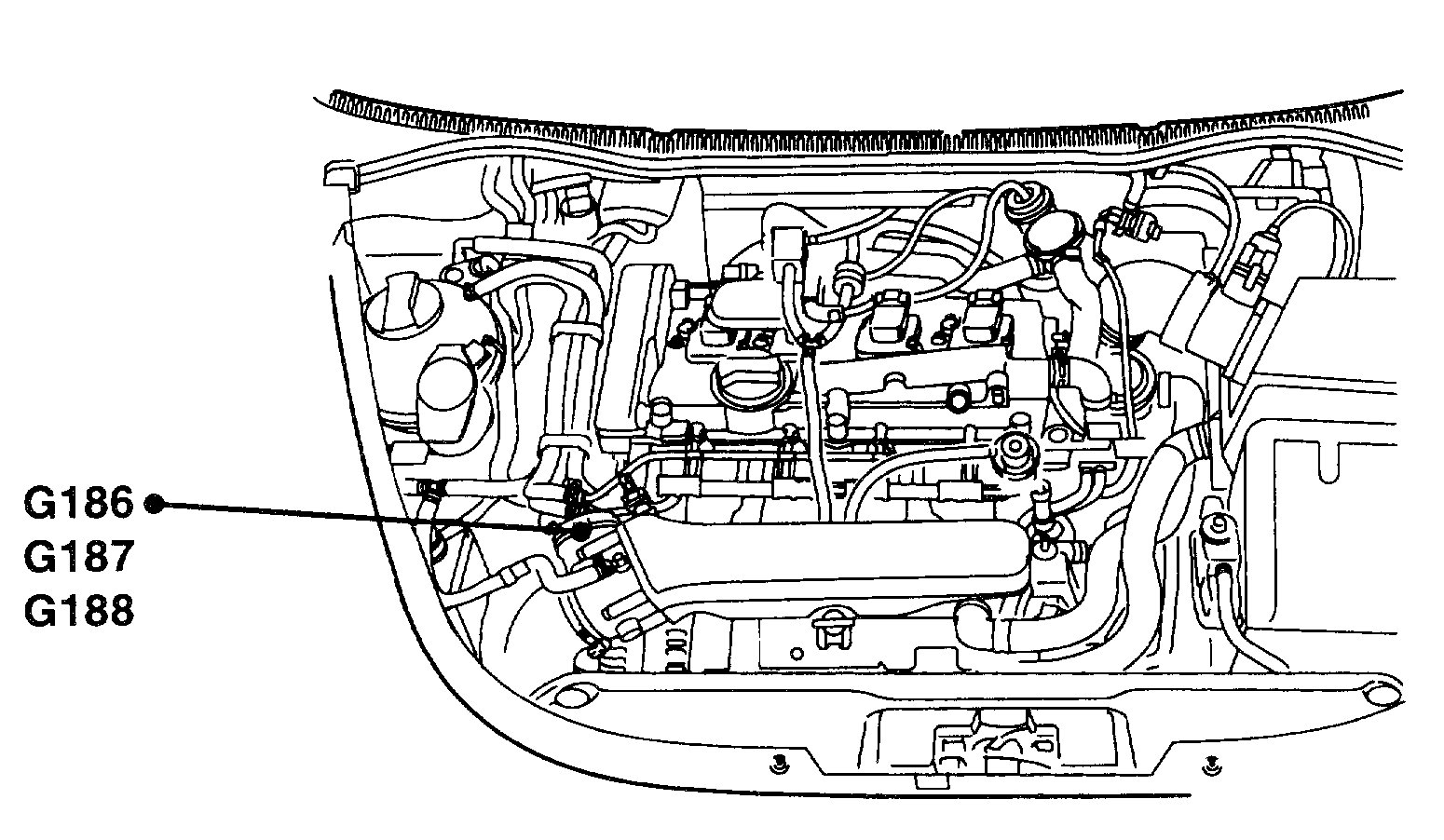

Component Location ViewG186, G187, G188:

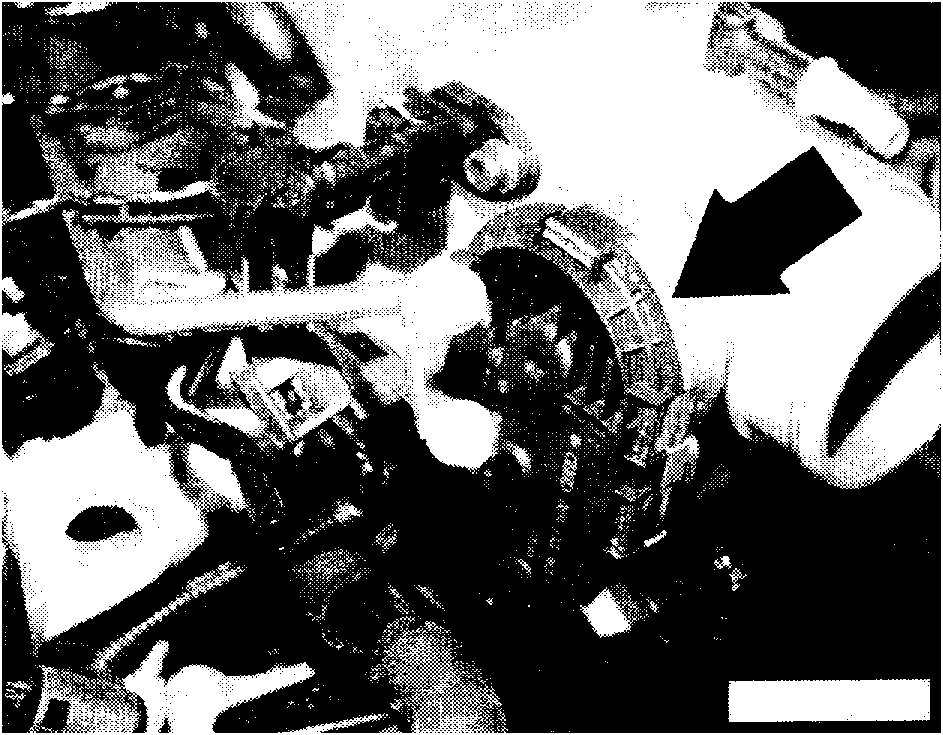

Component ViewG188 Angle Sensor -1- For Throttle Drive (Power Accelerator Actuation) -
On throttle housing; component of throttle valve control module -J138-
