Display Groups 114 - 118 (Charge Pressure Control)

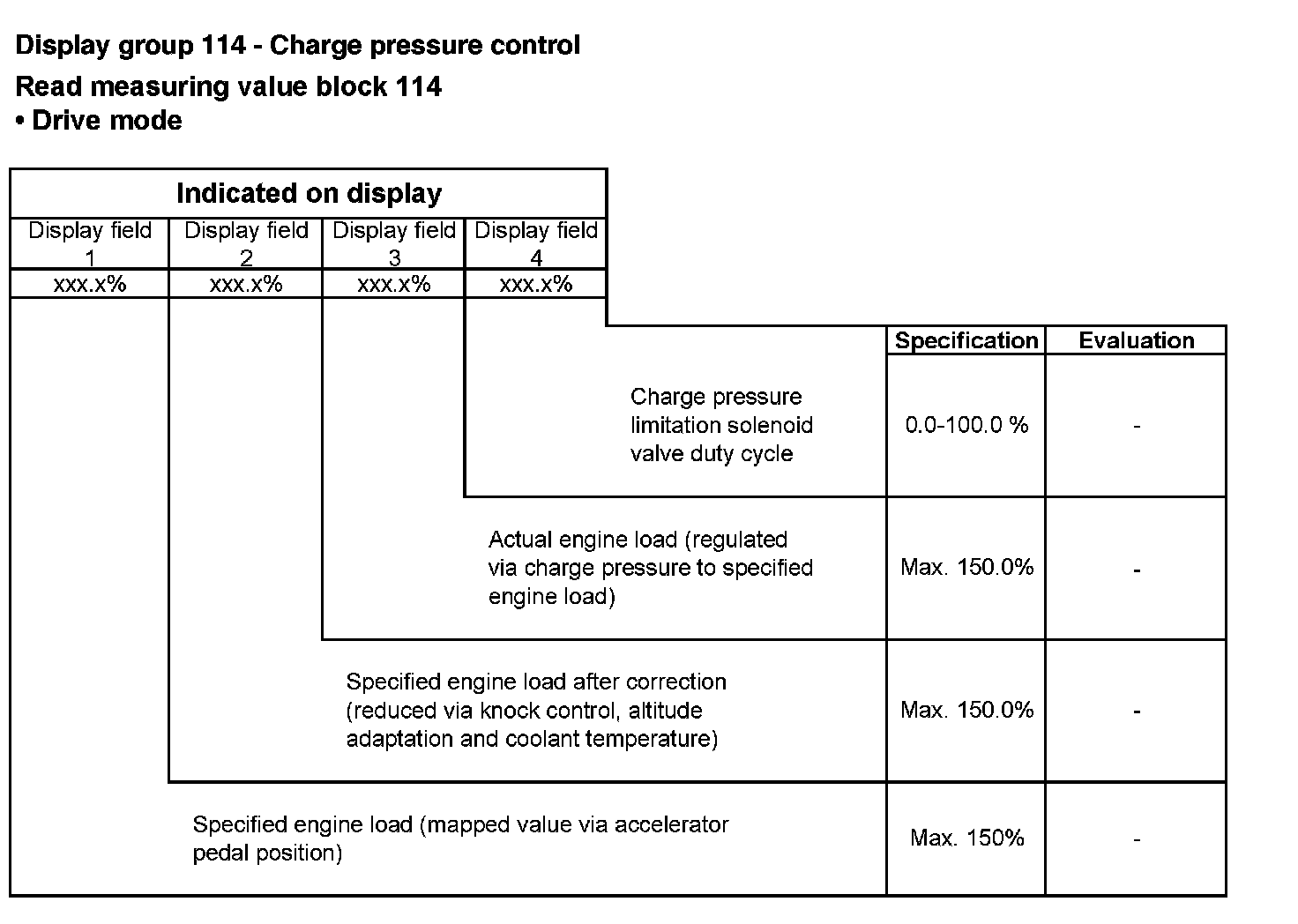

Display Group 114:

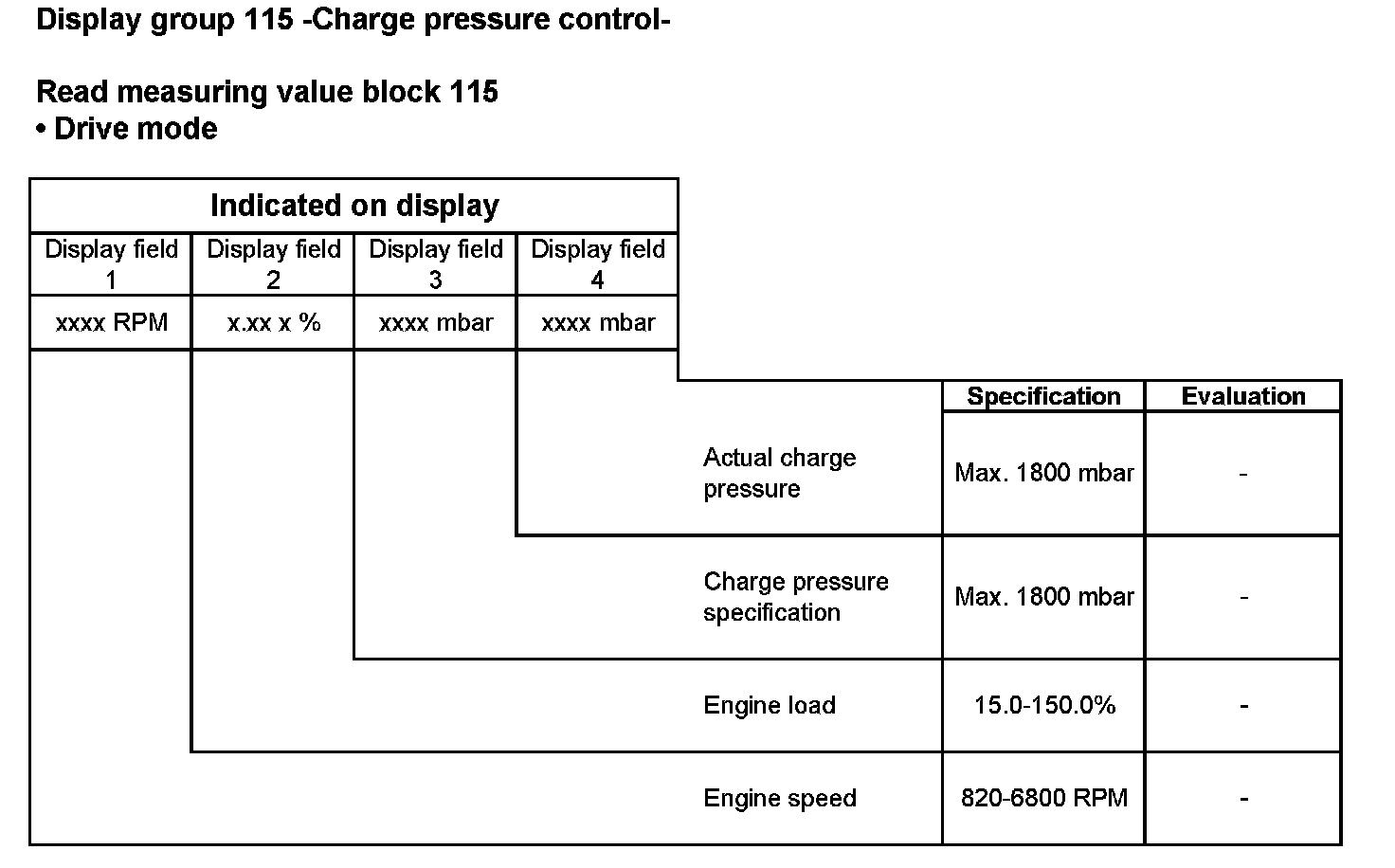

Display Group 115:

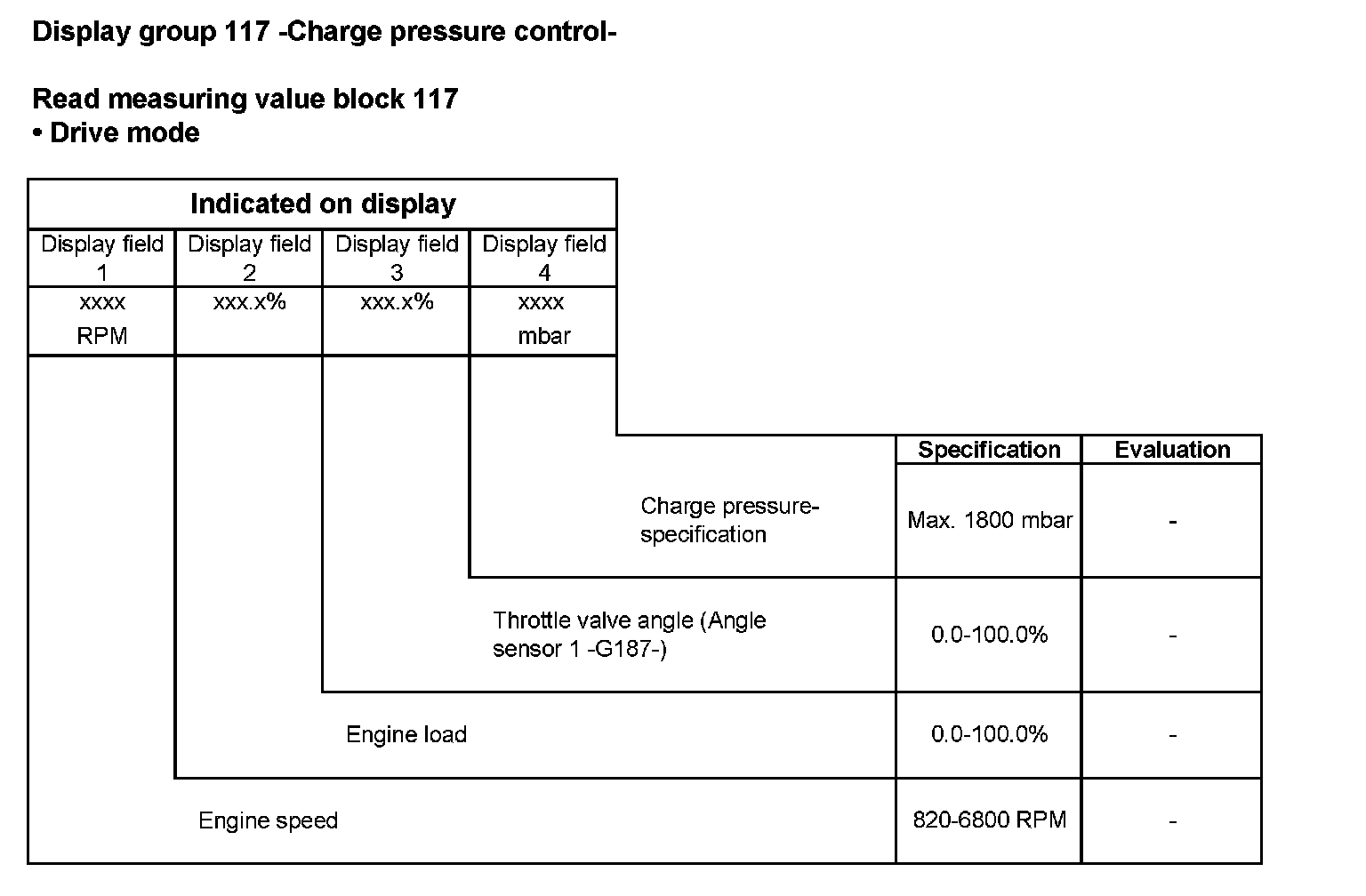

Display Group 117:

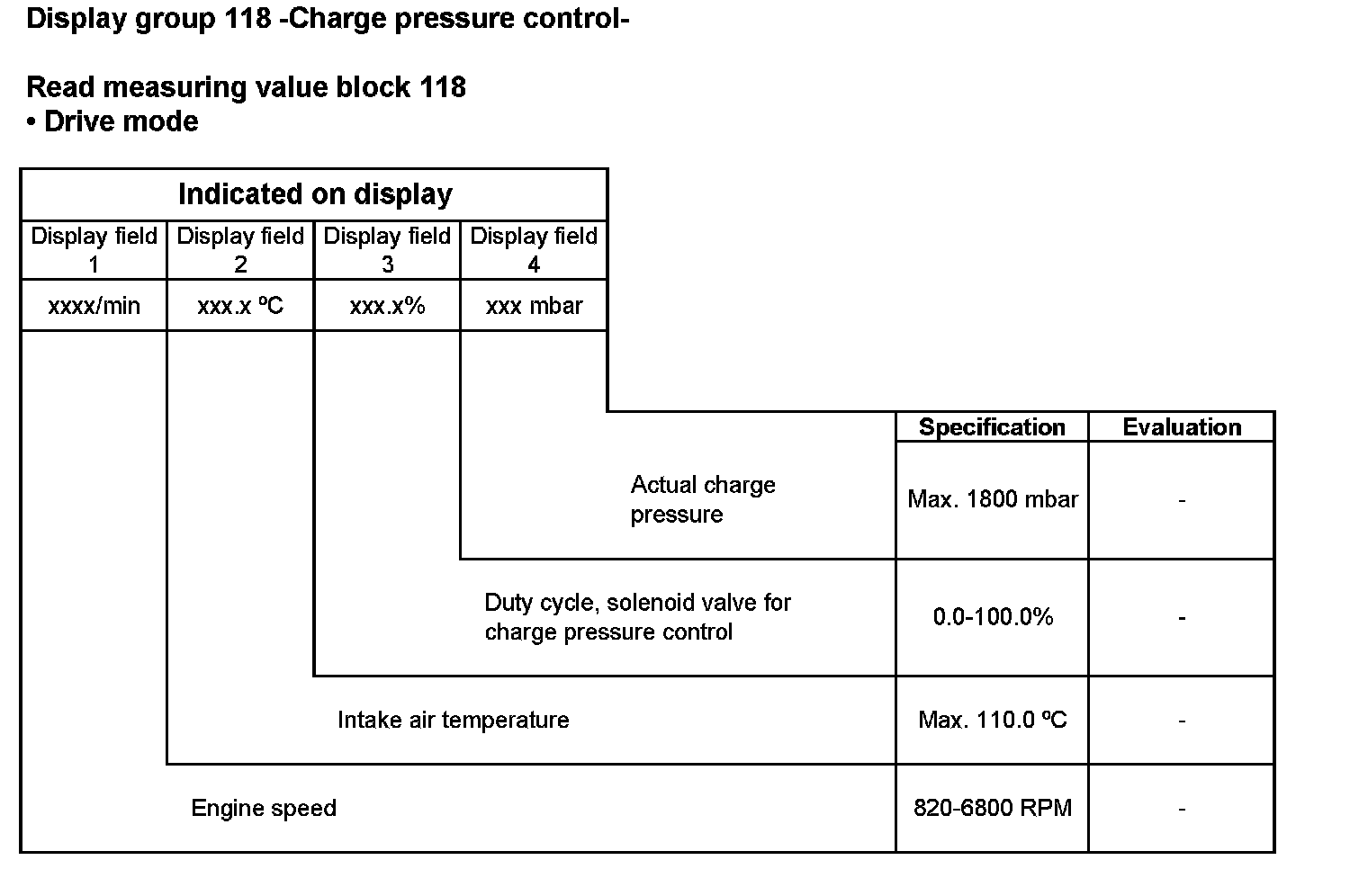

Display Group 118:
