Engine Mount




Engine/transmission mounts

Tightening torques






Engine mount

1 Mount to body*: 40 Nm + 90° (1/4 turn)
2 Mount/bracket to body: 25 Nm
3 Mount to engine bracket: 100 Nm

*Replace bolts






Transmission assembly mount

1 Mount to body*: 40 Nm +90° (1/4 turn)
2 Mount to body: 25 Nm
3 Mount to transmission console: 100 Nm

*Replace bolts

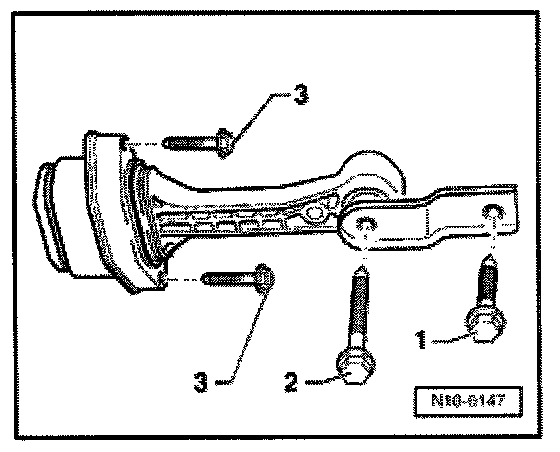

Pendulum support

1 Pendulum support to transmission*: 40 Nm + 90° (1/4 turn)
2 Pendulum support to transmission*: 40 Nm + 90° (1/4 turn)
3 Pendulum support to subframe*: 20 Nm + 90° (1/4 turn)

*Replace bolts
